1U I/O shield Matrix

Latest webpage updated on July 12, 2018



#

PART # & PICTURE

DESCRIPTION (MOTHERBOARD COMPATIBILITY)

176

1UIO-H310M-HDVM.2

1U ASRock MicroATX I/O shield
* ASRock H310M-HDV/M.2, Intel 8th Generation Socket 1151 motherboard compatible
* Released on July 12, 2018

* Note: please contact us for LGA1150 (1151) LGA1155 (1156) motherboard 1U installation guide

175

1UIOC236WSI

1U ASRock Mini-ITX I/O shield
* ASRock C236 WSI MB for Intel Xeon E3-1200 v5/v6 compatible
* Released on June 14, 2018

174

1UIONF792I-3160

1U Jetway Mini-ITX I/O shield
* Jetway NF792I-3160 Intel Celeron N3160 SoC Mini-ITX MB compatible
* Released on June 04, 2018

173

1UIOB360M-A

1U Asus MicroATX I/O shield
* Asus PRIME B360M-A Intel LGA1151 MicroATX server motherboard compatible
* Extra four 5mm high stand-off & four 6mm high #6 screws included, released on May 29, 2018
* Note: please
contact us for LGA1150 (1151) LGA1155 (1156) motherboard 1U installation guide

172

1UIOH370M-ITX

1U ASRock Mini-ITX I/O shield
* ASRock H370M-ITX/ac Intel 8th Generation Socket 1151 MB compatible
* Released on May 04, 2018
* Note: please
contact us for LGA1150 (1151) LGA1155 (1156) motherboard 1U installation guide

171

1UIOKIK-7S4-USC

1U SuperMicro MicroATX I/O shield
* SuperMicro X9DRL-3F & X9DRL-iF & X9DRi-LN4F+ Mini-ITX & MicroATX MB compatible
* Yellow section is knock-off design
* Released on April 13, 2018

170

1UIOKD331-Q170

1U DFI MicroATX I/O shield
* DFI KD331-Q170 Intel LGA 1151 Micro ATX MB compatible
* Released on February 23, 2018

* Note: please contact us for LGA1150 (1151) LGA1155 (1156) motherboard 1U installation guide

169

1UIOH270M-ITX-ac

1U ASRock Mini-ITX I/O shield
* ASRock H270M-ITX/ac Intel 7th and 6th Generation Socket 1151 MB compatible
* Released on November 09, 2017

* Note: please contact us for LGA1150 (1151) LGA1155 (1156) motherboard 1U installation guide

168

1UP10S-I-IO

1U Asus Mini-ITX I/O shield
* Asus P10S-I Intel LGA1151 Mini-ITX server motherboard compatible
* Yellow section is knock-off design, released on August 25, 2017

* Note: please contact us for LGA1150 (1151) LGA1155 (1156) motherboard 1U installation guide

167

1UH110M-A-IO

1U Asus MicroATX I/O shield
* Asus H110M-A Intel LGA 1151 MB compatible
* Released on August 21, 2017

* Note: please contact us for LGA1150 (1151) LGA1155 (1156) motherboard 1U installation guide

166

1UIONF594-Q170

1U Jetway Mini-ITX I/O shield
* Jetway NF594-Q170 Intel i3, i5, i7 Socket LGA 1151 Mini-ITX MB compatible
* Released on August 18, 2017 and updated on November 08, 2017

* Note: please contact us for LGA1150 (1151) LGA1155 (1156) motherboard 1U installation guide

165

1UIOEMB-Q170C

1U Aaeon Mini-ITX I/O shield
* Aaeon EMB-Q170C Mini-ITX Intel 6th Generation Core i Series LGA1151 MB
* Extra four 5mm high stand-off & four 6mm high #6 screws included, released on June 23, 2017

* Note: please contact us for LGA1150 (1151) LGA1155 (1156) motherboard 1U installation guide

164

1UIOH170M-ITXDL

1U ASRock Mini-ITX I/O shield
* ASRock H170M-ITX/DL Intel 7th and 6th Generation Socket 1151 MB compatible
* Yellow section is knock-off design, released on May 31, 2017

* Note: please contact us for LGA1150 (1151) LGA1155 (1156) motherboard 1U installation guide

163

1UIOB150M-HDV

1U ASRock MicroATX I/O shield
* ASRock B150M-HDV MB, Intel 7th and 6th Generation Core compatible
* Released on April 07, 2017

* Note: please contact us for LGA1150 (1151) LGA1155 (1156) motherboard 1U installation guide

162

1UIOH270M-PRO4

1U ASRock MicroATX I/O shield
* ASRock H270M Pro4 MB, Intel 7th and 6th Generation i7/i5/i3/Pentium/Celeron compatible
* Released on April 07, 2017

* Note: please contact us for LGA1150 (1151) LGA1155 (1156) motherboard 1U installation guide

161

1UIOEPC612D8A

1U ASRock ATX I/O shield
* ASRock EPC612D8A Intel LGA 2011 R3 Intel Xeon E5-1600/2600 v3/v4 series MB compatible
* Released on March 29, 2017

160

1UIOH110M-E

1U Asus MicroATX I/O shield
* Asus H110M-E Intel LGA 1151 MB compatible
* Released on March 29, 2017
* Note: please
contact us for LGA1150 (1151) LGA1155 (1156) motherboard 1U installation guide

159

1UIOB150I-PRO

1U Asus Mini-ITX I/O shield
* Asus B150I PRO GAMING/WIFI/AURA Intel LGA1151 i7 Mini ITX MB compatible
* Released on December 21, 2016
* Note: please
contact us for LGA1150 (1151) LGA1155 (1156) motherboard 1U installation guide

158

1UIOENDAT-N3418

1U Unicorn Mini-ITX I/O shield
* Unicorn ENDAT-N3418 Intel Atom Braswell CPU Mini ITX MB compatible
* Released on December 16, 2016

157

1UIOH110T

1U Asus Mini-ITX I/O shield (stand-off added with washer to become totally 3.3mm high)
* Asus H110T Intel LGA1151 DDR4 SO-DIMM SATA3 Thin Mini ITX MB compatible
* Yellow section is knock-off design, released on December 09, 2016 and updated on February 20, 2017
* Note: please
contact us for LGA1150 (1151) LGA1155 (1156) motherboard 1U installation guide

156

1UIOJ4205-ITX

1U ASRock Mini-ITX I/O shield
* ASRock J4205-ITX and J5005-ITX motherboard compatible
* Yellow section is knock-off design
* Released on November 07, 2016 and updated on June 13, 2018

155

1UIOB150M-A-M.2

1U Asus MicroATX I/O shield
* Asus B150M-A/M.2 Intel LGA 1151 MB compatible
* Released on September 05, 2016

* Note: please contact us for LGA1150 (1151) LGA1155 (1156) motherboard 1U installation guide

154

1UIOE3C236D2I

1U ASRock Mini-ITX I/O shield
* ASRock E3C236D2I Intel Xeon E3-1200 v5 Series MB compatible
* Released on September 05, 2016

153

1UIOIMB-150D

1U ASRock Mini-ITX I/O shield
* ASRock IMB-150D Intel Atom Baytrail-M/D Processor (J1900 10W 2.0GHz) MB compatible
* Released on July 22, 2016

152

1UIOGA-N3150N-D2H-1

1U Gigabyte Mini-ITX I/O shield
* Gigabyte GA-N3150N-D2H & GA-N3150N-D2H-1 Intel Celeron N3150 Quad-core Mini-ITX MB compatible

* Yellow section is knock-off design
* Released on May 30, 2016 and updated on June 03. 2016

151

1UIO-IMB-194-D

1U ASRock Mini-ITX I/O shield
* ASRock IMB-194-D LGA1151 for Intel Core i7/i5/i3/Celeron (Skylake-S) Mini-ITX MB compatible
* Released on May 27, 2016
* Note: please
contact us for LGA1150 (1151) LGA1155 (1156) motherboard 1U installation guide



150

1UIO-IMB-194-L

1U ASRock Mini-ITX I/O shield
* ASRock IMB-194-L LGA1151 for Intel Core i7/i5/i3/Celeron (Skylake-S) Mini-ITX MB compatible
* Released on May 27, 2016
* Note: please
contact us for LGA1150 (1151) LGA1155 (1156) motherboard 1U installation guide

149

1UIONF9C-2600

1U Jetway Mini-ITX IO shield
* Jetway N2600 NF9C-2600 Intel Cedar Trail-M Processor Mini-ITX MB compatible
* Yellow section is knock-off design
* Released on May 27, 2016

148

1UIO-FIQ67IX

1U Corvalent & Jetway Mini-ITX I/O shield
* Corvalent FI-Q67IX & Jetway NF9AR10 LGA 1155 Mini-ITX MB compatible
* Released on May 10, 2016 and updated on May 12, 2016
* Note: please
contact us for LGA1150 (1151) LGA1155 (1156) motherboard 1U installation guide

147

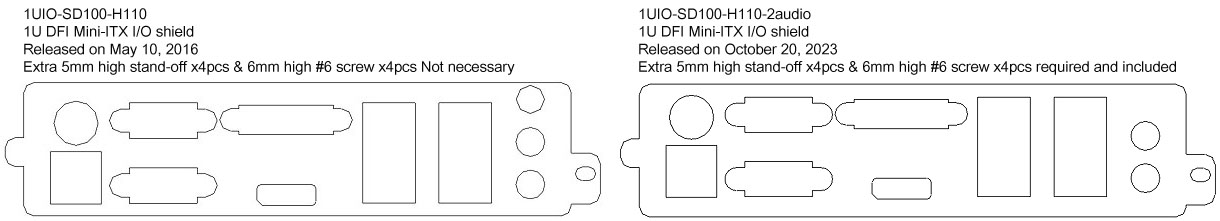

1UIO-SD100-H110

1U DFI Mini-ITX I/O shield
* DFI SD100-H110 & SD100-Q170 6th Gen Intel Core H110 LGA 1151 Mini-ITX MB compatible
* Released on May 10, 2016
* Note: please
contact us for LGA1150 (1151) LGA1155 (1156) motherboard 1U installation guide

146

1UIO-AIMB285

1U Advantech Mini-ITX I/O shield
* Advantech AIMB-285 Intel Core i7/i5/i3 LGA 1151 Mini-ITX MB compatible
* Released on May 03, 2016
* Note: please
contact us for LGA1150 (1151) LGA1155 (1156) motherboard 1U installation guide

145

1UIOMBD-X10SDV-TLN4F-O

1U SuperMicro Mini-ITX I/O shield
* SuperMicro MBD-X10SDV-TLN4F-O Mini ITX Server MB Xeon processor compatible

* Yellow section is knock-off design
* Released on April 27, 2016

144

1UION3150I-C

1U Asus Mini-ITX I/O shield
* Asus N3150I-C & J3355I-C Mini-ITX MB compatible
* Released on April 15, 2016, updated on March 30, 2018

143

1UIOMSI-H81M-33

1U MSI MicroATX I/O shield
* MSI H81M-P33 LGA1150 MicroATX MB compatible
* Released on April 13, 2016
* Note: please
contact us for LGA1150 LGA1155 (1156) motherboard 1U installation guide

142

1UIOQ87TN

1U Gigabyte Mini-ITX I/O shield
* Gigabyte GA-Q87TN LGA1150 Mini-ITX MB compatible, with an additional DB9 hole
* Released on February 26, 2016
* Note: please
contact us for LGA1150 LGA1155 (1156) motherboard 1U installation guide

141

1UIOB85M-PRO3

1U ASRock MicroATX I/O shield
* ASRock B85M Pro3 Intel LGA1150 Core i7/i5/i3/Xeon/Pentium/Celeron MB compatible
* Released on February 19, 2016
* Note: please
contact us for LGA1150 LGA1155 (1156) motherboard 1U installation guide

140

1UIOGA-H170N-WIFI

1U Gigabyte Mini-ITX I/O shield
* Gigabyte GA-H170N-WIFI & GA-Z170N-WIFI Mini-ITX MB, released on January 08 & updated on January 25, 2016

* Yellow section is knock-off design, extra four 5mm high stand-off & #6 at 6mm screws included
* Note: please
contact us for LGA1150 LGA1155 (1156) motherboard 1U installation guide

139

1UIONF9N-R10

1U Jetway Mini-ITX I/O shield
* Jetway JNF9N-2930 Celeron N2930 Quad Core Bay Trail Mini-ITX MB compatible
* Yellow section is knock-off design to fit daughter board ADE4INLAN or ADE4RTLAN
* Released on October 30, 2015

138

1UIOGA-H97N-DB9

1U Gigabyte Mini-ITX I/O shield with DB9 hole
* Gigabyte GA-H97N-WIFI LGA 1150 Mini-ITX MB compatible
* Released on October 19, 2015 (without WiFi but DB9 hole instead)

* Note: Note: please contact us for LGA1150 LGA1155 (1156) motherboard 1U installation guide

137

1UIOKEMX-8200

1U Quanmax Mini-ITX I/O shield
* Quanmax KEMX-8200 Intel LGA1150 4th/5th Generation Celeron & H81/Q87 Mini-ITX MB compatible
* Released on October 06, 2015

* Note: please contact us for LGA1150 LGA1155 (1156) motherboard 1U installation guide

136

1UIOGA-J1900N-D3V

1U Gigabyte Mini-ITX I/O shield
* Gigabyte GA-J1900N-D3V Intel Celeron J1900 (2.0 GHz) quad-core Mini-ITX MB compatible
* Released on September 30, 2015

135

1UION3700-ITX

1U ASRock Mini-ITX I/O shield
* ASRock N3700-ITX & N3150-ITX Intel Quad-Core Pentium N3700 Mini-ITX MB compatible
* Yellow section is knock-off design
* Released on September 22, 2015

134

1UIOX10SLM-F

1U Supermicro MicroATX I/O shield
* Supermicro X10SLM-F Single socket H3 (LGA 1150) MicroATX MB compatible
* Yellow section is knock-off design, released on September 14, 2015

* Note: please contact us for LGA1150 LGA1155 (1156) motherboard 1U installation guide

133

1UIOH97I-PLUS

1U Asus Mini-ITX I/O shield
* Asus H97I-PLUS Intel Socket 1150 MB compatible
* Yellow section is knock-off design, released on September 04, 2015

* Note: please contact us for LGA1150 LGA1155 (1156) motherboard 1U installation guide

132

1UIOB85M-ITX

1U ASRock Mini-ITX I/O shield
* ASRock B85M-ITX LGA 1150 Intel B85 HDMI SATA 6Gb/s USB 3.0 Mini-ITX MB compatible
* Released on July 21, 2015

* Note: please contact us for LGA1150 LGA1155 (1156) motherboard 1U installation guide

131

1UIONF9G-QM77

1U Jetway Mini-ITX I/O shield
* Jetway NF9G-QM77 Intel i3, i5, i7 Mobile Processors for Socket G (rPGA988) Mini-ITX MB compatible
* Yellow section is knock-off design to fit Jetway-4-x-Gigabit-LAN Daughterboard
* Released on July 15, 2015, updated on July 23, 2015

130

1UIOAD2550RA

1U ASRock Mini-ITX I/O shield
* ASRock AD2550RA/U3S3 Intel Dual-Core Atom D2550 MB compatible
* Released on June 30, 2015

129

1UIOB85M-PRO4

1U ASRock MicroATX I/O shield
* ASRock B75-PRO3 & B85M-PRO4 Intel LGA1150/1155 Core i7/i5/i3/Xeon/Pentium/Celeron MB compatible
* B75-PRO3 is LGA1155 with ATX size, B85M-PRO4 is LGA1150 with MicroATX, released on June 22, 2015

* Note: please contact us for LGA1150 LGA1155 (1156) motherboard 1U installation guide

128

1UIOIMB-185

1U ASRock Mini-ITX I/O shield
* ASRock IMB-185 Intel LGA1150 Core i7/i5/i3/Celeron (Haswell) MB compatible
* Axiomtek MANO881 Mini-ITX MB compatible, released on June 09, 2015 & updated on December 07, 2015

* Note: please contact us for LGA1150 LGA1155 (1156) motherboard 1U installation guide

127

1UIOIMB-181-D

1U ASRock Mini-ITX I/O shield
* ASRock IMB-181-D Intel LGA1150 Core i7/i5/i3/Celeron (Haswell) MB compatible
* Released on June 09, 2015

* Note: please contact us for LGA1150 LGA1155 (1156) motherboard 1U installation guide

126

1UIOIMB-110D

1U ASRock Mini-ITX I/O shield
* 1U ASRock Mini-ITX I/O shield
* ASRock IMB-110 Series Intel Atom D525/D425/N455 MB compatible

125

1UIO-H97M-E

1U Asus MicroATX I/O shield
* Asus H97M-E MicroATX LGA1150 MB compatible
* Released on May 29, 2015

* Note: please contact us for LGA1150 LGA1155 (1156) motherboard 1U installation guide

124

1UIONF9HG-2930

1U Jetway Mini-ITX I/O shield
* Jetway NF9HG series Intel Celeron N2930 SoC processor Mini-ITX MB compatible
* Released on May 08, 2015

* 1UIONF9HG-2930-2P , the version with two DB9 holes released on February 26, 2016

123

1UIOH81N-D2H

1U Gigabyte Mini-ITX I/O shield
* Gigabyte H81N-D2H Mini-ITX LGA1150 MB compatible
* Released on May 05, 2015

* Note: please contact us for LGA1150 LGA1155 (1156) motherboard 1U installation guide

122

1UIOC2550D4I

1U ASRock Mini-ITX I/O shield
* AsRock C2550D4I and C2750D4I Mini-ITX MB compatible
* Released on March 10, 2015, updated on April 01 and April 07, 2015

121

1UIOGA-H97N-WIFI

1U Gigabyte Mini-ITX I/O shield
* Gigabyte GA-H97N-WIFI LGA 1150 Mini-ITX MB compatible
* Released on November 19, 2014

* Note: please contact us for LGA1150 LGA1155 (1156) motherboard 1U installation guide

120

1UIOX10SLV-Q

1U SuperMicro Mini-ITX I/O shield
* Supermicro X10SLV-Q LGA 1150 Mini-ITX MB compatible
* Released on November 11, 2014

* Note: please contact us for LGA1150 LGA1155 (1156) motherboard 1U installation guide

119

1UIOX10SLL-F

1U SuperMicro MicroATX I/O shield
* Supermicro X10SLL-F LGA 1150 Micro ATX MB compatible
* Released on October 23, 2014

* Note: please contact us for LGA1150 LGA1155 (1156) motherboard 1U installation guide

118

1UIOHD330-H81D

1U DFI MicroATX I/O shield
* DFI HD330-H81 LGA 1150 Micro ATX MB compatible
* Released on October 20, 2014

* Note: please contact us for LGA1150 LGA1155 (1156) motherboard 1U installation guide

117

1UIOIMB-151

1U ASRock Mini-ITX I/O shield
* AsRock IMB-151 Mini-ITX MB compatible
* Yellow section is knock-off design, extra four 5mm high stand-off & four 6mm high #6 screws included
* Released on October 07 and updated on October 09 and updated on November 05, 2014

116

1UIOGA-H81M-HD3

1U Gigabyte MicroATX I/O shield
* Gigabyte GA-H81M-HD3 LGA 1150 Micro ATX MB compatible
* Released on September 12, 2014

* Note: please contact us for LGA1150 LGA1155 (1156) motherboard 1U installation guide

115

1UIOE3C224D2I

1U AsRock Mini-ITX I/O shield
* AsRock E3C224D2I and E3C226D2I LGA 1150 Mini-ITX MB compatible
* Released on August 22, 2014

* Note: please contact us for LGA1150 LGA1155 (1156) motherboard 1U installation guide

114

1UIOGA-H87N-WIFI

1U Gigabyte Mini-ITX I/O shield
* Gigabyte GA-H87N-WIFI LGA 1150 Mini-ITX MB compatible
* Released on June 20, 2014

* Note: please contact us for LGA1150 LGA1155 (1156) motherboard 1U installation guide

113

1UIOAD2550R

1U AsRock Mini-ITX I/O shield
* AsRock AD2550R Mini-ITX Intel Atom D2550 MB compatible
* Released on July 02, 2014

112

1UIOH97-PCMATE

1U MicroStar ATX I/O shield
* MicroStar H97-PCMATE ATX LGA 1150 MB compatible

* Released on June 25, 2014

* Note: please contact us for LGA1150 LGA1155 (1156) motherboard 1U installation guide

111

1UIOGA-G41M-Combo

1U Gigabyte MicroATX I/O shield
* Gigabyte GA-G41M-Combo MicroATX LGA 775 MB compatible
* Released on June 04, 2014

110

1UIOX10SLQ

1U Supermicro MicroATX I/O shield
* Supermicro X10SLQ MicroATX LGA 1150 MB compatible
* Yellow section is knock-off design, released on May 15, 2014

* Note: please contact us for LGA1150 LGA1155 (1156) motherboard 1U installation guide

109

1UIOGA-C1037UN-EU

1U Gigabyte Mini-ITX I/O shield
* Gigabyte GA-C1037UN-EU Mini-ITX MB compatible
* Released on April 17, 2014

108

1UIOWTM-I2

1U WTM-I2 Mini-ITX I/O shield
* WTM Technology WTM-i2 intel Atom D2550 Mini-ITX MB compatible
* Released on February 27, 2014

107

1UIOB75M-HD3

1U Gigabyte MicroATX I/O shield
* Gigabyte GA-B75M-HD3 LGA 1155 MicroATX MB compatible
* Yellow section is knock-off design, released on January 03, 2014

* Note: please contact us for LGA1150 LGA1155 (1156) motherboard 1U installation guide

106

1UIOZ87I

1U MSI Mini-ITX I/O shield
* MSI Z87i LGA1150 Mini-ITX MB compatible
* Released on December 25, 2013

* Note: please contact us for LGA1150 LGA1155 (1156) motherboard 1U installation guide

105

1UIOJNMF95-Q87

1U Jetway MicroATX I/O shield
* Jetway NMF95 Q87 Intel Core i7 / i5 / i3 / Pentium Processor MicroATX MB compatible
* Yellow section is knock-off design, released on November 29, 2013

* Note: please contact us for LGA1150 LGA1155 (1156) motherboard 1U installation guide

104

1UIOKINO-9152G4

1U iEi Mini-ITX I/O shield
* iEi KINO-9152G4 Intel Pentium M & Celeron M CPU compatible Mini-ITX MB

* Yellow section is knock-off design
* Released on November 08, 2013

103

1UIOX10SLM-LN4F

1U Supermicro MicroATX I/O shield
* Supermicro X10SLM+-LN4F Single socket H3 (LGA 1150) MicroATX MB compatible
* Released on
November 04, 2013

* Note: please contact us for LGA1150 LGA1155 (1156) motherboard 1U installation guide

102

1UIOGA-B75N

1U Gigabyte Mini-ITX I/O shield
* Gigabyte GA-B75N LGA1155 Mini-ITX MB compatible
* Released on October 14, 2013

* Note: please contact us for LGA1150 LGA1155 (1156) motherboard 1U installation guide

101

1UIODH61AG

1U Intel Mini-ITX I/O shield
* Intel® Desktop Board DH61AG i7 processor series LGA1155 Mini-ITX MB compatible
* Yellow section is knock-off design, released on October 11, 2013

* Note: please contact us for LGA1150 LGA1155 (1156) motherboard 1U installation guide



100

1UIOECSH61H2-I

1U ECS Mini-ITX I/O shield
* Elitegroup ECS H61H2-I and v1.1 Intel LGA 1155 Mini-ITX MB compatible
* Yellow section is knock-off design, released on
October 04, 2013

* Note: please contact us for LGA1155 (1156) motherboard 1U installation guide

99

1UIONC9KDL-2550

1U Jetway Mini-ITX I/O shield
* Jetway NC9K Versa Atom Dual Core D2700 D2550 Mini-ITX MB compatible
* Released on October 03, 2013

98

1UIOM5A78L-M

1U Asus MicroATX I/O shield
* Asus M5A78L-M series MicroATX AMD AM3 MB compatible
* Released on August 12, 2013

97

1UIOIMBM-Q67

1U Aaeon MicroATX I/O shield
* AAEON IMBM-Q67 MicroATX LGA1155 MB compatible
* Released on August 28, 2013, updated on November 04, 2013, updated on November 15, 2013
* Note: please
contact us for LGA1155 (1156) motherboard 1U installation guide

96

1UIOCDC-I

1U ECS Mini-ITX I/O shield
* ECS CDC-I Mini-ITX MB compatible
* Intel D2700/D2500 Dual-core CPU with DDR3 1066/800MHz supported
* Released on August 06, 2013 and updated on August 28, 2013

95

1UIOMSIH61-P31W8

1U MSI MicroATX I/O shield
* MSI H61M-P31/W8 LGA 1155 MicroATX MB compatible

* Yellow section is knock-off design, released on July 31, 2013

* Note: please contact us for LGA1155 (1156) motherboard 1U installation guide

94

1UIOGA-H77N-WIFI

1U Gigabyte Mini-ITX I/O shield
* Gigabyte GA-H77N-WIFI LGA 1155 Mini-ITX MB compatible
* Released on July 30, 2013 and updated on August 21, 2013

* Note: please contact us for LGA1155 (1156) motherboard 1U installation guide

93

1UIOGA-H61M-DS2-DVI

1U Gigabyte MicroATX I/O shield
* Gigabyte GA-H61M-DS2 DVI version of LGA 1155 MicroATX MB compatible
* Released on May 20, 2013

* Note: please contact us for LGA1155 (1156) motherboard 1U installation guide

92

1UIOQ77MVPRO

1U ASRock MicroATX I/O shield
* Compatible with Asrock Q77M vPro LGA1155 MicroATX MB
* Released on May 09, 2013

* Note: please contact us for LGA1155 (1156) motherboard 1U installation guide

91

1UIOC60M1-I

1U Asus Mini-ITX I/O shield
* Asus C60M1-i AMD based Mini-ITX MB compatible

* MB build-in AMD APU C-60 1.0GHz Dual-Core onboard Processors

* Released on March 06, 2013

90

1UIODQ77KB

1U Intel Mini-ITX I/O shield
* Intel desktop DQ77KB thin Mini-ITX MB compatible
* Released on February 20, 2013

89

1UIOC847MS

1U MSI MicroATX I/O shield
* MSI C847MS-E33 Intel Celeron 847/ 1.1 GHz/ Dual-Core MicroATX MB compatible
* Released on January 24, 2013

* Note: The audio ports shall be too high to fit all 1U chassis in the market

88

1UIOE45M1

1U Asus MicroATX I/O shield
* Asus E45M1-M PRO AMD APU E-450 Dual-Core MicroATX MB compatible
* Released on January 24, 2013 and updated on February 19, 2013

87

1UIOKINO-9152-1GZ-R10

1U iEi Mini-ITX I/O shield
* iEi KINO-9152-1GZ-R10 Intel Pentium M & Celeron M CPU compatible Mini-ITX MB
* Released on January 02, 2013

86

1UIOS5515

1U Tyan LGA1155 MicroATX I/O shield
* Tyan S5515AG2NR LGA1155 MicroATX MB compatible
* Released on December 18, 2012

* Note: please contact us for LGA1155 (1156) motherboard 1U installation guide

85

1UIOS5510GM3NR

1U Tyan LGA1155 MicroATX I/O shield
* Tyan S5510GM3NR LGA1155 MicroATX MB compatible
* Released on October 22, 2012

* Note: please contact us for LGA1155 (1156) motherboard 1U installation guide

84

1UIOB75MA-P45

1U Asus LGA1155 MicroATX I/O shield
* Asus B75MA-P45 LGA1155 MicroATX MB compatible
* Released on October 09, 2012

* Note: please contact us for LGA1155 (1156) motherboard 1U installation guide

83

1UIOP8B75-M

1U Asus LGA1155 MicroATX I/O shield
* Asus P8B75-M LGA1155 MicroATX MB compatible
* Released on October 04, 2012

* Note: please contact us for LGA1155 (1156) motherboard 1U installation guide

82

1UIODQ77MK

1U Intel LGA1155 MicroATX I/O shield
* Intel Desktop Board DQ77MK MicroATX MB compatible
* Released on September 25, 2012

* Note: please contact us for LGA1155 (1156) motherboard 1U installation guide

81

1UIOP8H61-MLX3

1U Asus LGA1155 MicroATX I/O shield
* Asus P8H61-M LX3 PLUS LGA1155 MicroATX MB compatible
* Released on September 25, 2012

* Note: please contact us for LGA1155 (1156) motherboard 1U installation guide

80

1UIOINTEL-D2500CC

1U Intel Mini-ITX I/O shield
* Intel Atom D2500CC with NM10 Express Chipset Mini-ITX MB compatible
* Released on May 28, 2012

79

1UIOD2500HN

1U Intel Mini-ITX I/O shield
* Intel Atom D2500HN with NM10 Express Chipset Mini-ITX MB compatible
* Yellow section is knock-off design
* Released on May 28, 2012

78

1UIOCB0J06-QM57

1U Winsonic i7i5 Mini-ITX I/O shield
* Winsonic CB0J06-QM57 i7 i5 32nm Mini-ITX MB compatible
* Released on May 14, 2012
*
Winsonic CB0J06-QM57 motherboard reference

77

1UIOP8H61-M

1U Asus LGA1155 MicroATX I/O shield
* Asus P8H61-M REV 3.0 brand new H61 B3 Revision LGA 1155 MicroATX MB compatible
* Asus P8Z77-M MicroATX MB compatible. Released on April 13, 2012

* Note: please contact us for LGA1155 (1156) motherboard 1U installation guide

76

1UIOMSI880GM-E41

1U MSI MicroATX I/O shield
* MSi 880GM-E41 AMD AM3 socket MicroATX MB compatible
* Released on April 02, 2012

75

1UIOD2700MUD

1U Intel Mini-ITX I/O shield
* Intel D2700MUD and D2550MUD2 Mini-ITX MB compatible
* Yellow section is knock-off design
* Released and updated on April 26, 2013

74

1UIOGMB910

1U Advantech Mini-ITX I/O shield
* Advantech GMB910 Onboard Intel Celeron M 600 MHz/512 K Mini-ITX MB compatible

* Yellow section is knock-off design
* Released on March 07, 2012

73

1UIOGA-H61M-DS2

1U Gigabyte MicroATX I/O shield
* Gigabyte GA-H61M-DS2 LGA 1155 MicroATX MB compatible
* Released on February 17, 2012

* Note: please contact us for LGA1155 (1156) motherboard 1U installation guide

72

1UIONC9C-550-LF

1U Jetway Mini-ITX I/O shield
* Jetway NC9C-550-LF MB + AD3INLAN-G daughter board, and NF99FL-525LF MB compatible
* Yellow section is knock-off design
* Released on January 12, 2012

71

1UIOP8H61M-PLUS-V2

1U Asus LGA1155 MicroATX I/O shield
* Asus P8H61-M PLUS LGA 1155 MicroATX MB compatible
* Released on January 09, 2012

* Note: please contact us for LGA1155 (1156) motherboard 1U installation guide

70

1UIODH67CFB3

1U Intel LGA1155 MINI-ITX I/O shield
* Intel BOXDH67CFB3 LGA 1155 Mini-ITX MB compatible
* Released on December 21, 2011

* Note: please contact us for LGA1155 (1156) motherboard 1U installation guide

69

1UIODH61WW

1U Intel MicroATX I/O shield
* Intel DH61WW LGA1155 MicroATX MB compatible
* Released on December 08, 2011

* Note: please contact us for LGA1155 (1156) motherboard 1U installation guide

68

1UIOGIADA-MI-D525

1U Giada DualCore Atom Mini-ITX I/O shield
* Giada branded MI-D525 DualCore Atom Mini-ITX MB compatible
* Special made 5mm high MB stand-off at the 1U bottom of chassis necessary
* Yellow section is knock-off design, released on November 21, 2011

67

1UIOH61M-E33

1U MSI MicroATX I/O shield
* Compatible with MSI H61M-E33 LGA1155 MicroATX MB
* Released on November 18, 2011
* Note: please
contact us for LGA1155 (1156) motherboard 1U installation guide

66

1UIOASROCKZ68

1U ASRock ATX I/O shield
* Compatible with AsrockZ68 LGA1155 ATX MB
* Released on November 16, 2011
* Note: please
contact us for LGA1155 (1156) motherboard 1U installation guide

65

1UIOGAZ68XUD3H

1U Gigabyte ATX I/O shield
* Compatible with Gigabyte GA-Z68X-UD3H-B3 Z68 Express Chipset LGA1155 ATX MB
* Released on October 27, 2011
* Note: please
contact us for LGA1155 (1156) motherboard 1U installation guide

64

1UIOP8H67-IDX

1U Asus Mini-ITX I/O shield
* Compatible with Asus P8H67-I DX series LGA1155 Mini-ITX RAID server MB
* Released on September 20, 2011

* Note: please contact us for LGA1155 (1156) motherboard 1U installation guide

63

1UIOVB8001

1U VIA Mini-ITX I/O shield
* Compatible with VIA VB8001 Mini-ITX MB
* Released on September 14, 2011

* Note: the back side of this MB may have a 5.6mm high CF socket must take out during 1U solution

62

1UIOGA-G41MT-S2

1U Gigabyte LGA775 I/O shield
* Compatible with Gigabyte G41MT-S2 MircroATX LGA775 MB
* Released on September 22, 2011

61

1UIOS1200KP

1U Intel Xeon Mini-ITX I/O shield
* Compatible with Intel Kenosha Pass C206 S1155 S1200KP Xeon E3 1200 Mini-ITX RAID server MB
* Released on August 31, 2011

* Note: please contact us for LGA1155 (1156) motherboard 1U installation guide

60

1UIONITX-P-E

1U Zotac Mini-ITX I/O shield
* Compatible with Zotac NITX-P-E AMD Celeron Mini-ITX MB
* Yellow section is knock-off design
* Released on August 23, 2011

59

1UIOM880GITX-A-E

1U Zotac Mini-ITX I/O shield
*
Compatible with Zotac M880GITX-A-E AMD Turion II APU Mini-ITX MB

* Yellow section is knock-off design

* Released on August 23, 2011 and updated on September 14, 2011

58

1UIOMYX5LA

1U XZX Mini-ITX Atom I/O shield
* Compatible with XZX ITX-MYX5LA Atom N270 Mini-ITX MB
* Released on July 28, 2011

57

1UIOFOXH67A

1U FoxConn ATX LGA1155 I/O shield
* Compatible with Foxconn H67A LGA1155 Mini-ITX MB
* Released on June 22, 2011

* Note: please contact us for LGA1155 (1156) motherboard 1U installation guide

56

1UIODH61DL

1U Intel Mini-ITX I/O shield
* Compatible with Intel DH61DL LGA1155 Mini-ITX MB
* Released on June 20, 2011

* Note: please contact us for LGA1155 (1156) motherboard 1U installation guide

55

1UIOERX-G41

1U Avalue MicroATX I/O shield
* Compatible with Avalue ERX-G41-A1R LGA775 with LAN & VGA & RAID on board MB
* Released on May 04, 2011

54

1UIOJ7F2

1U Jetway Mini-ITX I/O shield
* Compatible with Jetway VIA C7 and Eden (V4) Mini-ITX MB

* Yellow section is knock-off design
* Released on April 20, 2011

53

1UIOX8SIE-LN4

1U Supermicro ATX I/O shield
* Compatible with Supermicro X8SIE-LN4 LGA1156 ATX MB
* Released on April 15, 2011
* Note: please
contact us for LGA1155 (1156) motherboard 1U installation guide

52

1UIOH55M

1U ASRock MicroATX I/O shield
* Compatible with ASRock H55M LGA1156 MicroATX MB
* Released on April 15, 2011
* Note: please
contact us for LGA1155 (1156) motherboard 1U installation guide

51

1UIODQ67OW

1U Intel MicroATX I/O shield
* Compatible with Intel DQ67OW LGA1155 MicroATX MB
* Released on March 23, 2011
* Note: please
contact us for LGA1155 (1156) motherboard 1U installation guide



50

1UIOP5G41T-MLX

1U Asus MicroATX I/O shield
* Compatible with ASUS P5G41T-M LX Intel LGA775 MicroATX MB
* Released on March 22, 2011

49

1UIOEMX-945GSE

1U Intel Mini-ITX I/O shield
* Compatible with Intel EMX-945GSE-A1-DVIR Atom N270 Mini ITX MB
* Released on March 07, 2011

48

1UIOS3420GPLC

1U Intel Xeon I/O shield
* Compatible with Intel S3420GPLC Xeon processor 3400 series ATX server MB
* Compatible with S1200BTS, S1200BTL, S3420GPV, S3420GPLX, S5500BCR, S5520HCR MB
* Released on March 04, 2011, more compatible motherboards updated on July 09, 2012

47

1UIOP7H55-MLE

1U Asus MicroATX LGA1156 I/O shield
* Compatible with Asus P7H55-MLE Intel LGA1156 MicroATX MB
* Released on February 22, 2011
* Note: please
contact us for LGA1155 (1156) motherboard 1U installation guide

46

1UIOM4A88TD-M

1U Asus MicroATX AM3 I/O shield
* Compatible with Asus M4A88TD-M AMD AM3 MicroATX MB
* Released on February 15, 2011

45

1UIOP7H-MUSB3

1U Asus MicroATX I/O shield
* Compatible with Asus P7H55-M/USB3 LGA1156 MicroATX MB
* Released on January 24, 2011
* Note: please
contact us for LGA1155 (1156) motherboard 1U installation guide

44

1UIOH55M-USB3

1U Gigabyte MicroATX I/O shield
* Compatible with Gigabyte GA-H55M-USB3 LGA1156 MicroATX MB
* Released on November 25, 2010
* Note: please
contact us for LGA1155 (1156) motherboard 1U installation guide

43

1UIODG41TX

1U Intel MicroATX I/O shield
* Compatible with Intel DeskTop DG41TX LGA775 MicroATX MB
* Released on November 18, 2010

42

1UIOD525

1U Intel Mini-ITX I/O shield
* Intel Mount Washington D525MW and Intel Kinston Atom D425KT Mini-ITX MB
* Intel Mount Washington D525MWV and Intel Kinston Atom D425KTW Mini-ITX MB
*
Yellow section is knock-off design, released on Nov09 & Dec21, 2010, updated on May 13, 2011

41

1UIO-AIMB-742VE-00A3E

1U Advantech AIMB-742VE ATX I/O shield
* Compatible with Advantech AIMB-742VE-00A3E Socket 478 P4 ATX MB
* Yellow section is knock-off design
* Released on October 29, 2010

40

1UIOAIMB-280

1U Advantech AIMB-280 Mini-ITX I/O shield
* Compatible with Advantech AIMB-280 Mini-ITX MB
* Released on October 27, 2010

39

1UIOWADE-8556

1U Portwell Wade-8556 Mini-ITX I/O shield
* Compatible with Portwell WADE-8556 Mini-ITX MB
* Released on October 25, 2010

38

1UIONC91-330-LF

1U Jetway NC91 Mini-ITX I/O shield
* Compatible with Jetway NC91 series Mini-ITX MB
* Released on October 22, 2010

37

1UIOP5LPL-AM

1U Asus mATX P5LPL-AM I/O shield
* Compatible with Asus LGA775 P5LPL-AM Micro ATX MB
* Released on September 21, 2010

36

1UIOWTM-A6-G

1U WTM Mini-ITX I/O shield
* Compatible with WTM-A6-G Mini-ITX MB
* Released on September 14, 2010

35

1UIOGF6100-E-E

1U Zotac GF6100-E-E I/O shield
* Compatible with Zotac GF6100-E-E AMD AM2 Mini-ITX MB
* Yellow section is knock-off design
* Released on August 23, 2010

34

1UIOECS-H55H-I

1U ECS Mini-ITX I/O shield
* Compatible with ECS H55H-I Intel LGA1156 Mini-ITX MB
* Released on August 18, 2010
* Note: please
contact us for LGA1155 (1156) motherboard 1U installation guide

33

1UIOGA-H55N-USB3

1U Gigabyte Mini-ITX I/O shield
* Compatible with Gigabyte GA-H55N-USB3 Intel LGA1156 Mini-ITX MB
* Released on August 11, 2010
* Note: please
contact us for LGA1155 (1156) motherboard 1U installation guide

32

1UIONF610I-K-E

1U Zotac NF610I-K-E I/O shield
* Compatible with Zotac Intel Atom LGA775 Mini-ITX MB
* Yellow section is knock-off design
* Released on June 30, 2010

31

1UIOGA-GC230D

1U Gigabyte Atom Mini-ITX I/O shield
* Compatible with Gigabyte GA-GC230D Intel Atom 230 processor Mini-ITX MB
* Released on June 21, 2010

30

1UIOX7SPA-H

1U Supermicro Atom Mini-ITX I/O shield
* Compatible Supermicro MB: X7SPA-H, X7SPA-H-D525, X7SPA-HF-D525, X7SPE-HF-D525
* Yellow section is knock-off design
* Released on June 17, 2010 and X7SPA-H-D525 compatible announcement on July 19, 2011

29

1UD945GSEJT

1U Intel N270 Mini-ITX I/O shield
* Compatible with Intel D945GSEJT N270 Mini-ITX MB
* Yellow section is knock-off design
* Released on May 17, 2010

28

1UIODG41MJ

1U Intel LGA775 Mini-ITX I/O shield
* Compatible with Intel DG41MJ LGA 775 Mini-ITX MB
* Released on May 17, 2010
* updated on July 06, 2010

27

1UIOS3115

1U Tyan S3115 Mini-ITX I/O shield
* Compatible with Tyan S3115 Mini-ITX MB
* Released on May 05, 2010

26

1UIOLV-67B

1U Commell Mini-ITX I/O shield
* Compatible with Commell LV-66A and LV-66B Mini-ITX MB
* Yellow section is knock-off design (compatible with LV-66A if no knocking-off)
* Released on May 03, 2010

25

1UIOS5211G2NR

1U Tyan S5211 LGA775 I/O shield
* Compatible with Tyan S5211 ATX LGA775 MB
* Released on April 16, 2010

24

1UIOS5502

1U Tyan S5502 LGA1156 I/O shield
* Compatible with Tyan S5502 Xeon LGA1156 MB
* Yellow section is knock-off design, released on April 14, 2010
* Note: please contact us for LGA1155 (1156) motherboard 1U installation guide

23

1UAT3IONT-I

1U Asus Atom Mini-ITX I/O shield
* Compatible with Asus AT3IONT-I Deluxe dual core Atom Mini-ITX MB
* Released on April 03, 2010
* Updated on May 19, 2010

22

1UIODH57JG

1U Intel Atom Mini-ITX I/O shield
* Compatible with Intel DH57JG LGA1156 Atom Mini-ITX MB
* Released on April 02, 2010 and updated on May 19, 2010
* Note: please contact us for LGA1155 (1156) motherboard 1U installation guide

21

1UIONC94FL-510-LF

1U Jetway Intel Atom Mini-ITX I/O shield
* Compatible with Jetway NC94FL-410-LF and NC94FL-510-LF Mini-ITX MB
* Yellow section is knock-off design
* Released on March 30, 2010, fanless version updated on May 04, 2010

20

1UIOP7H55-MPRO

1U Asus mATX LGA1156 I/O shield
* Compatible with Asus P7H55-MPRO LGA1156 MicroATX MB
* Released on March 30, 2010
* Note: please contact us for LGA1155 (1156) motherboard 1U installation guide

19

1UIODH55TC

1U Intel mATX LGA1156 I/O shield
* Compatible with Intel DH55TC LGA1156 MicroATX MB
* Released on March 29, 2010
* Note: please contact us for LGA1155 (1156) motherboard 1U installation guide

18

1UIOD510MO

1U Intel Atom Mini-ITX I/O shield
* Compatible with Intel D510MO and D410PT Atom Mini-ITX MB
* Yellow section is knock-off design
* Released on March 10, 2010, updated on March 15, 2010, and updated on May 16, 2011

17

1UIOS7002

1U Tyan Dual LGA1366 eATX I/O shield
* Compatible with Tyan S7002 eATX MB and Tyan S5220 LGA775 ATX MB
* Yellow section is knock-off design
* Released on March 09, 2010

16

1UIOS5247

1U Tyan Flex ATX LGA775 I/O shield
* Compatible with Tyan S5247 FlexATX MB
* Yellow section is knock-off design
* Released on March 09, 2010

15

1UIOGA-7TESH2-RH

1U Gigabyte eATX Dual LGA1366 I/O shield
* Compatible with Gigabyte GA-7TESH2-RH eATX MB
* Released on January 31, 2010

14

1UIOGA945GME-DS2

1U Gigabyte MicroATX LGA775 I/O shield
* Compatible with Gigabyte GA-945GME-DS2 and Asus P5G31D-M Pro MicroATX MB
* Yellow section is knock-off design
* Released on January 20, 2010, updated on March 31, 2010

13

1UIOC2SBC-Q

1U Supermicro ATX LGA775 I/O shield
* Compatible with Supermicro C2SBC-Q ATX MB
* Released on January 07, 2010
* Updated on January 20, 2010

12

1UIOEPIA-EN

1U VIA Mini-ITX I/O shield ★★
* Compatible with VIA EPIA EN12000E and EN15000 Mini-ITX MB
* Released or updated on December 17
, 2009

11

1UIOEPIA-MII

1U VIA Mini-ITX I/O shield
* Compatible with VIA EPIA MII12000 Mini-ITX MB
* Released or updated on May
12, 2009

10

1UIOEPIA-M

1U VIA Mini-ITX I/O shield
* Compatible with VIA EPIA M10000 and M10000G Mini-ITX MB
* Released or updated on May
12, 2009

9

1UIODG41TY

1U Intel DG41TY I/O shield
* Compatible with Intel DG41TY MB
* Intel standard-size I/O shield part number 1A02PW500-600-6G
* Released or updated on November 09
, 2009

8

1UIOMS7314

1U MSI MS-7314 Mini-ITX Atom I/O shield
* Compatible with MSI MS-7314 Atom Mini-ITX MB
* Released or updated on
October 15, 2009

7

1UIODG45FC

1U Intel DG45FC Mini-ITX LGA775 I/O shield
* Compatible with Intel BOXDG45FC LGA 775 G45 Mini ITX Intel MB
* Released or updated on
October 05, 2009

6

1UIODG31PR

1U Intel DG31PR I/O shield
* Compatible with Intel DG31PR LGA775 MicroATX MB
* Released or updated on September 0
4, 2009

5

1UIOK9N6PGM2-V

1U MSI MicroATX I/O shield
* Compatible with MSI K9N6PGM2-V MicroATX AM2 MB
* Released or updated on
August 05, 2009

4

1UIOI94GC-I7

1U Biostar I94GC-I7 Mini-ITX LGA775 I/O shield
* Compatible with Biostar I94GC-I7 Mini-ITX LGA775 MB
* Released or updated on
February 25, 2009

3

1UIODQ35JO

1U Intel Johannesburg Q35 DQ35JOE I/O shield
* Compatible with Intel Johannesburg Q35 mATX vPro(tm) DQ35JOE MB
* Released or updated on
January 21, 2009

2

1UIOX7SBI-LN4

1U Supermicro X7SBI-LN4 I/O shield
* Compatible with Supermicro X7SBI, X7SBI-LN4, P4SCA, P4SCE, P4SBE, P4SBR, P4SCI, X6DHE-G2,
   X5DAL-G, X5DAL-TG2, X6DVA-EG, PDSME+, X7DVL-I S5000V, PDSMA+, X7SBL-LN2, X7DBU, X7DBE,
   PDSMi+, X8SIL Series, Tyan S5162 MB   * Released or updated on
November 16, 2010

1

1UIOD945GCLF2

1U Intel Atom D945GCLF2 I/O shield
* Intel D945GCLF2 Atom Mini-ITX MB supported
* Released
February 04, 2009
* Updated on November 11, 2009




IPC China Corporation   Copyright reserved©   Without official document authorized, any commercial behaviors including design and photo are prohibited

Postal code 523651, SanZhong JinQiao Industrial Park, Qing-Xi Town, DongGuan City, China        Email: sales@chinaipc.cc
