1U Rackmount Accessory Matrix



Various 1U size I/O shield by IPC China Corporation Standard
* If you need the other I/O shield for different motherboard, please click here to see the one you required
* Black colored I/O shield shall be -B after part number, for example 1UIOD945GCLF2-B
* If you can not find the suitable I/O shield, please inform us the MB model number, then we can make it for you immediately
* suitable 1U chassis: all 1U chassis made by IPC China Corporation

((1U2011P-8080)) 1U Intel LGA2011 LGA2066 passive heatsink
* heatsink size: 88Lx88Wx24H(mm)
* heatsink material: Copper C1000 series
* weight: 485g
* fastener: M4 screw + spring
* support LGA2011 size version: 80mm x 80mm

((1U2011A-8080)) 1U Intel LGA2011 LGA2066 active cooler
* Total dimension: 88Lx88Wx28H(mm), Drawing
* Blower size: 75Lx75Wx15H(mm), FD7015H12D blower specification: 5000rpm / 10.75 CFM, DC12V @ 0.42A
* Heatsink material: Copper C1000 series
* Heatsink skiving: 1.4mm distance between skiving, 0.3mm thickness per skiving
* Fastener: M4 screw + spring
* Support LGA2011 size version: 80mm x 80mm
* Package: NW 0.40 KGM, GW 0.50 KGM, 0.017 CUFT (94x100x50mm, one box packed)

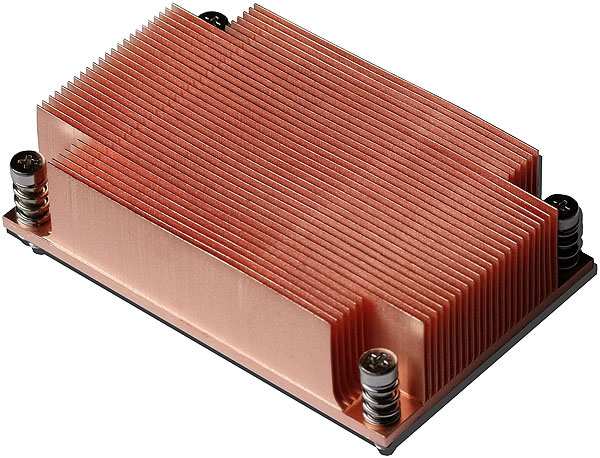

((1U2011P-5694)) 1U Intel LGA2011 passive heatsink
* heatsink size: 104Lx65Wx24H(mm)
* heatsink material: Copper C1000 series

* heatsink skiving: 1.9mm distance between skiving, 0.4mm thickness per skiving
* fastener: M4 screw + spring

* support LGA2011 size version: 56mm x 94mm

* Package: NW 0.43 KGM, GW 0.48 KGM, 0.018 CUFT (83x122x50mm, brown colored box packed)

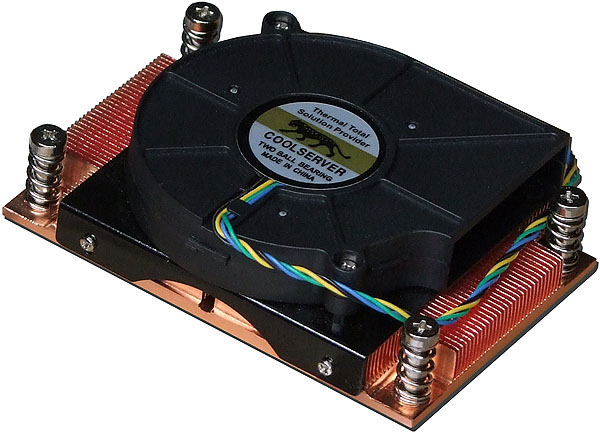

((1U2011A-5694)) 1U Intel LGA2011 active cooler
* Total dimension: 104Lx71.6Wx28H(mm)
* Blower size: 75Lx75Wx15H(mm), FD7015H12D blower specification: 5000rpm / 10.75 CFM, DC12V @ 0.42A
* Heatsink material: Copper C1000 series
* Fastener: M4 screw + spring
* Support LGA2011 size version: 56mm x 94mm
* Package: NW 0.42 KGM, GW 0.44 KGM, 0.018 CUFT (83x122x50mm, one box packed)

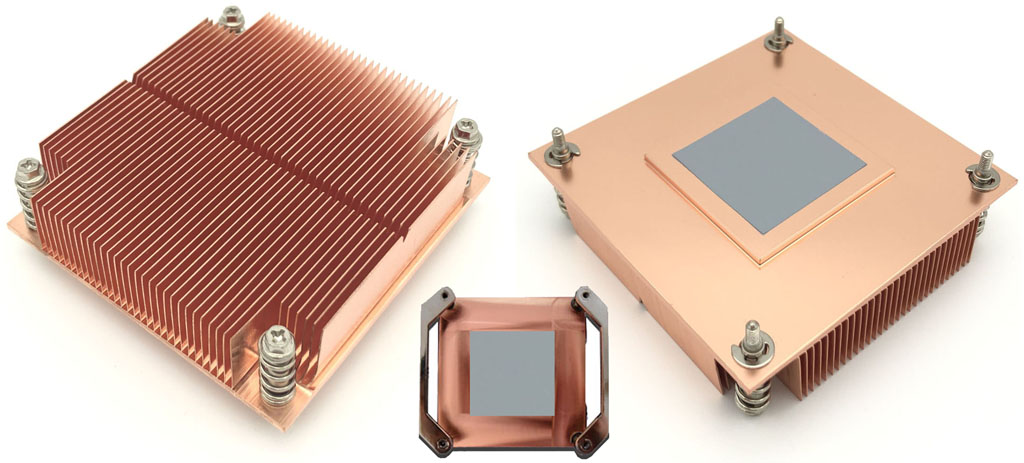

((1U1156P)) 1U Intel LGA1150 LGA1155 LGA1156 Xeon1230 passive heatsink
* total dimension: 88Lx88Wx24H(mm)
* heatsink material: Copper C1000 series
* weight: 457g
* fastener: screw + spring + CPU mounting sheet metal bracket
* Intel Hoswell LGA1150 CPU also compatible

((1U1156A)) 1U Intel LGA1150 LGA1155 LGA1156 Xeon1230 active cooler
* total dimension: 83Lx84.6x28H(mm)
* blower size: 75L x 75W x 15H(mm), blower specification: 5000rpm / 10.75 CFM
* heatsink material: Copper C1000 series
* fastener: screw + spring + CPU mounting sheet metal bracket
* Intel Hoswell LGA1150 CPU also compatible

* Package: NW 0.3 KGM, GW 0.4 KGM, 0.017 CUFT (94x100x50mm, deep blue colored box packed)

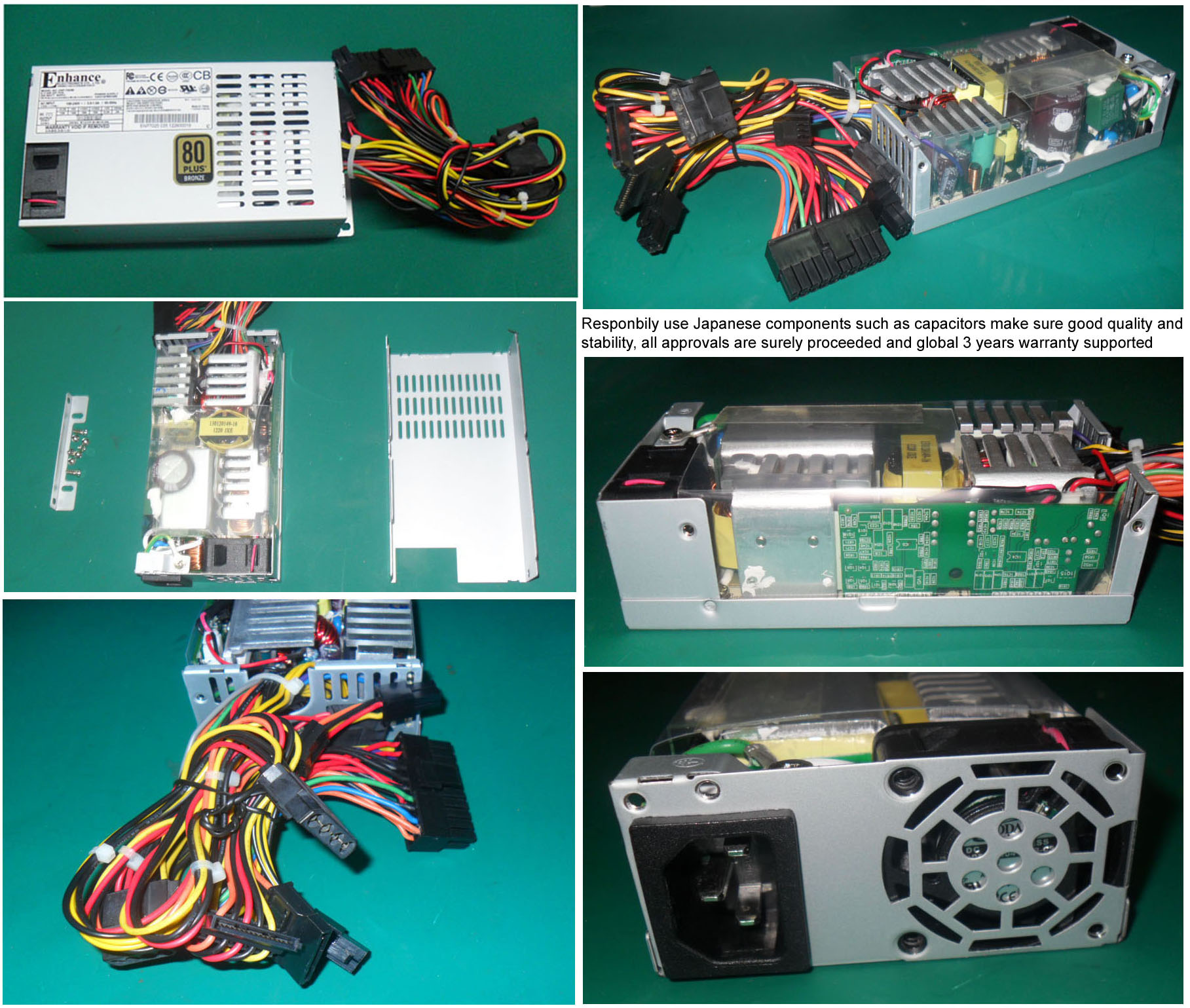

inside view

((ENP-7025B)) 1U Flex ATX 250W power supply with PFC
* AC input: full range 100V~240V
* One 4cm ball bearing fan
* 80Plus Bronze certified class (high efficiency 82%)
and build-in temperature control device
* Dimensions: D.150 x W.81 x H.40 /mm

* Wiring harness identification (Taiwan Enhance brand 3-year warranty  & wiring harness qualified by IPC China Corp.)

* Safety: CCC, CE, Nemko, UL, FCC, RoHS, BSMI

* Suitable 1U chassis: G1250D
*
Standard installed with power supply bracket (bracket part# 360220037-00)

((ENP-7130B)) 1U Flex ATX 300W power supply with PFC
* AC input: full range 100V~240V
* One 4cm ball bearing fan
* 100VAC input: 80Plus Silver certified class (high efficiency 85%) and build-in temperature control device
* 240VAC input: 80Plus Gold certified class (high efficiency 87%) and build-in temperature control device
* Dimensions: D.150 x W.81 x H.40 /mm

* Wiring harness identification (Taiwan Enhance brand 3-year warranty  & wiring harness qualified by IPC China Corp.)
* Safety: CCC, CE, Nemko, UL, FCC, RoHS, BSMI

* Standard installed with power supply bracket (bracket part# 360220037-00)

((ENP7140B)) 1U Flex ATX 400W power supply with PFC
* AC input: full range 100V~240V
* One 4cm ball bearing fan
* 80Plus Gold certified class ((high efficiency 87%) and build-in temperature control device
* Dimensions: D.150 x W.81 x H.40 /mm

* Wiring harness identification (Taiwan Enhance brand 3-year warranty  & wiring harness qualified by IPC China Corp.)

* Safety: CCC, CE, Nemko, UL, FCC, RoHS, C-Tick
* Suitable 2U chassis:
G2380A
* Standard installed with power supply bracket (bracket part# 360220037-00)

((ENP-7025D)) 1U 250W power supply with PFC
* AC input: full range 100V~240V
* One 4cm ball bearing fan
* Dimensions: D.180 x W.100 x H.40.5 /mm
* Safety: CCC, CE, Nemko, UL, FCC, RoHS, BSMI
* Standard installed with power supply bracket (bracket part#
360220032-02)
*
Wiring harness drawing# ENP7025D-32YGB-N, identified on August 12, 2014

* Taiwan Enhance brand 3-year warranty  & wiring harness qualified by IPC China Corp.

((ENH-1930)) 1U 300W power supply with PFC
* AC input: full range 100V~240V
* One 4cm ball bearing fan

* 80Plus Bronze certified class (high efficiency 82%)
* Dimensions: D.180 x W.100 x H.40.5 /mm

* Wiring harness identification (Taiwan Enhance brand 3-year warranty  & wiring harness qualified by IPC China Corp.)

* Safety: CCC, Nemko, UL, CE, FCC
* Suitable 1U chassis: all regular 1U chassis
*
Standard installed with power supply bracket

((ENH-1655)) 1U 550W power supply with PFC
* AC input: full range 100V~240V, 8-4A, 60-50Hz
* two 40mm x 28mm ball bearing fans
* 80Plus Gold certified class ((high efficiency 88%) and build-in temperature control device
* dimensions: D.245 x W.100 x H.40.5 /mm

* Wiring harness identification (Taiwan Enhance brand 3-year warranty  & wiring harness qualified by IPC China Corp.)

* Safety: CE, FCC
* Suitable 1U chassis: most 1U eATX server chassis or hotswap storage chassis
