ASRock C2550D4I Super Mini-ITX MB

G1320

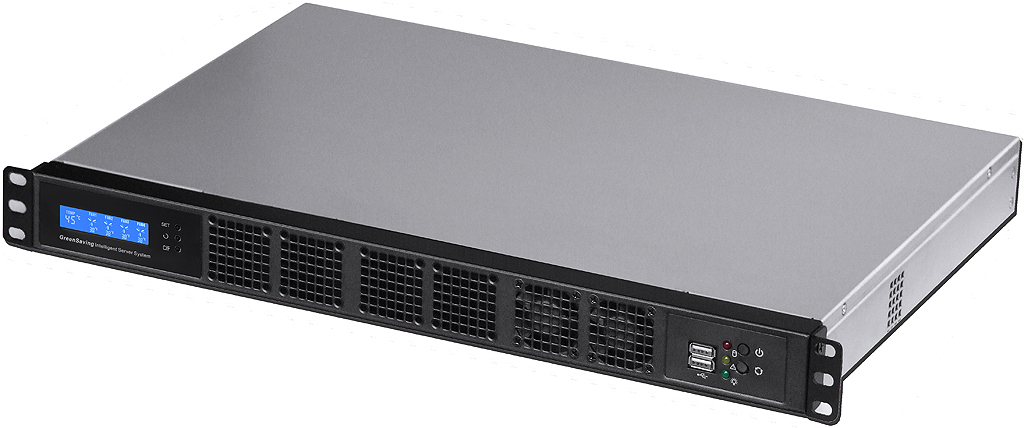

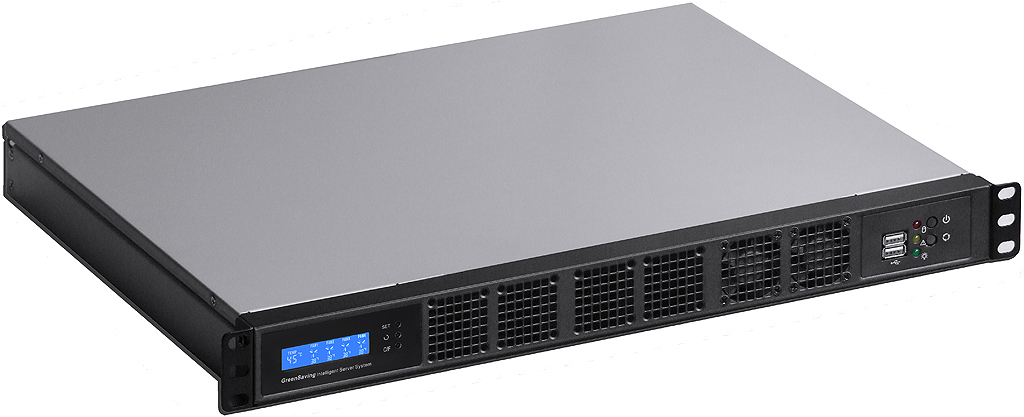

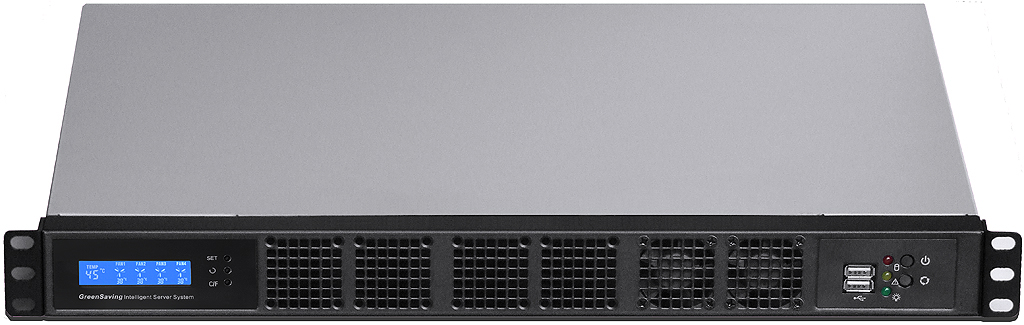

1U MicroATX EnergySaving server chassis



01) Build in Intelligent EnergySaving function
02) Efficiently fan life time extendable

03) Maximum 12 x 2.5" HDD/SSD compatible

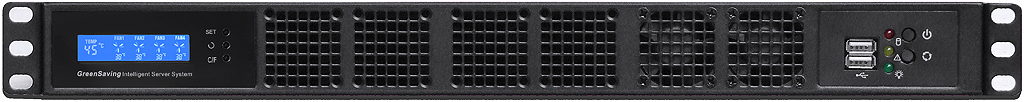

04) Equipped two USB 2.0 ports at front bezel
05)

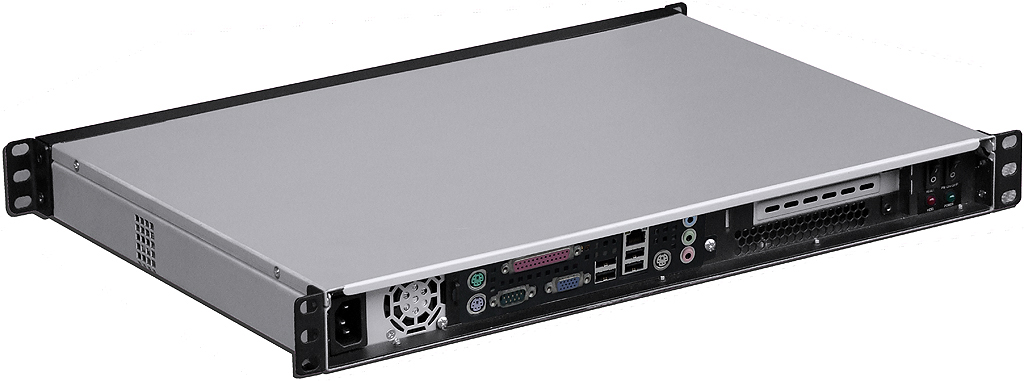

I/O front access rackmount ears included

06) Two brand new & silent 40mmx20mm fans

07) MicroATX & Mini-ITX MB compatible

08) Main sheet metal by 1.0mm~2.0mm thickness

09) High grade Korean SECC (not cheap SGCC)

10) Various 1U I/O shield (option)

11) Various 1U riser card compatible (option)

12) Standard 1U FlexATX 150W~250W psu (option)

13) IPC China branded model global 3 years warranty

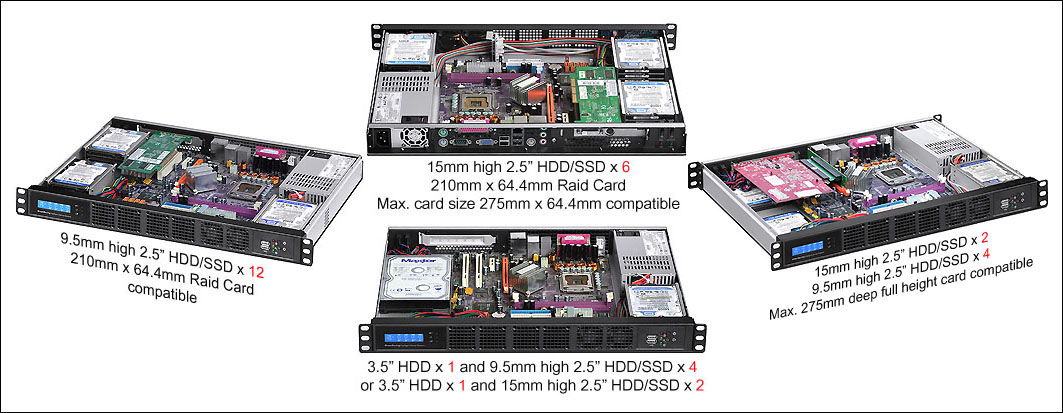

* Drive capacity:

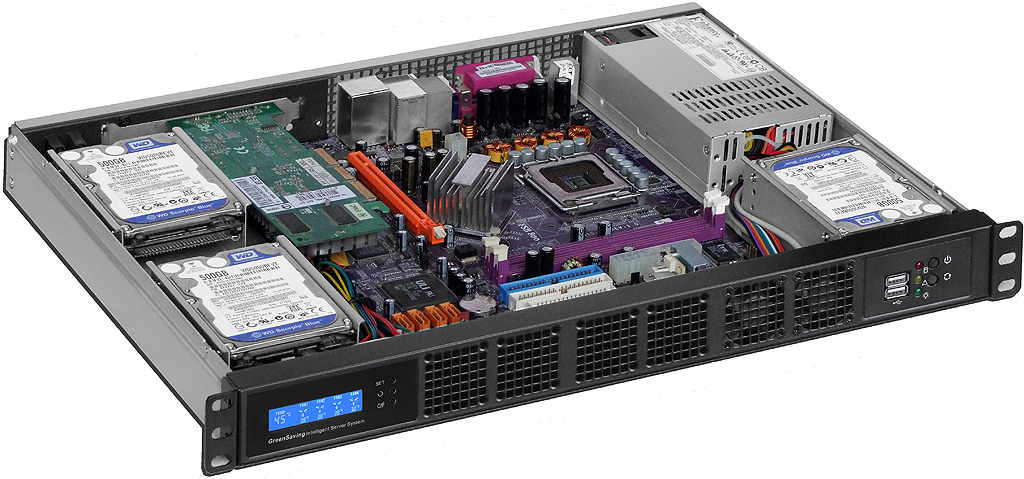

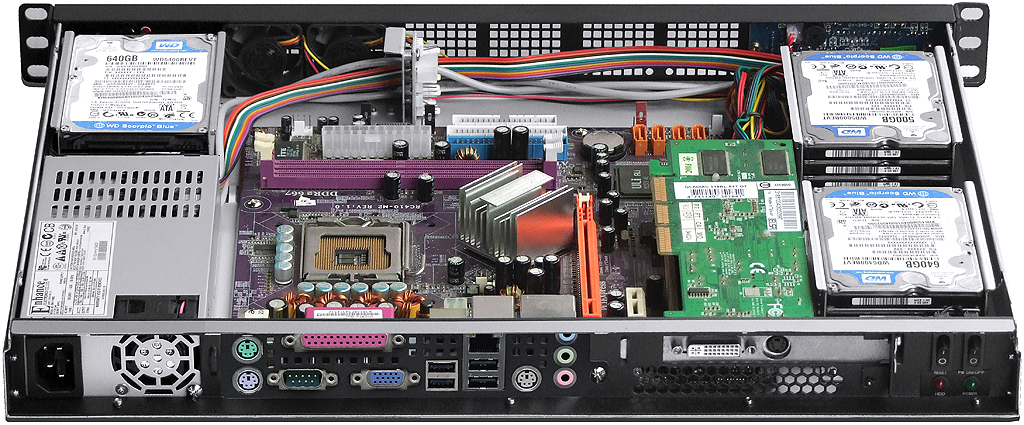

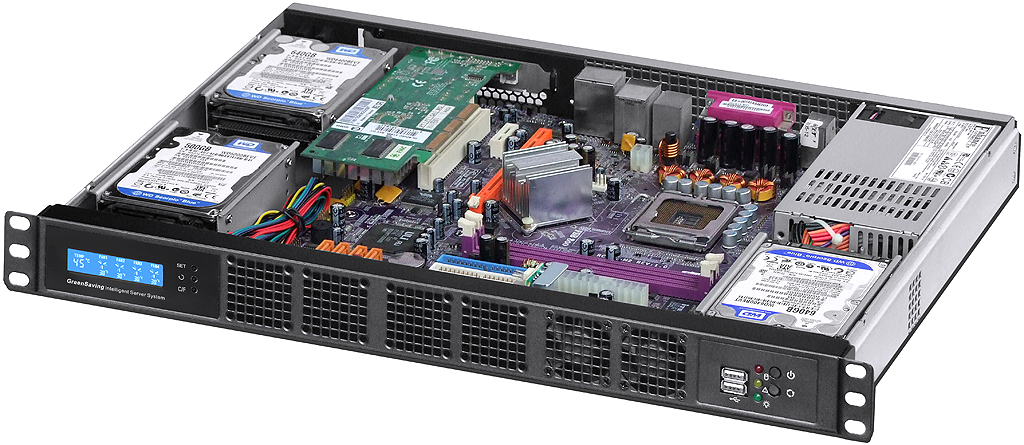

  12 x 2.5" HDD/SSD (height 9.5mm HDD/SSD & height 64.4mm low profile card compatible)
  or 6 x 2.5" HDD/SSD (height 15mm HDD/SSD & height 64.4mm low profile card compatible)
  or 2 x 15mm high 2.5" HDD/SSD & 4 x 9.5mm high HDD/SSD (full height card compatible)

  or 4 x 15mm high 2.5" HDD/SSD (full height card compatible)

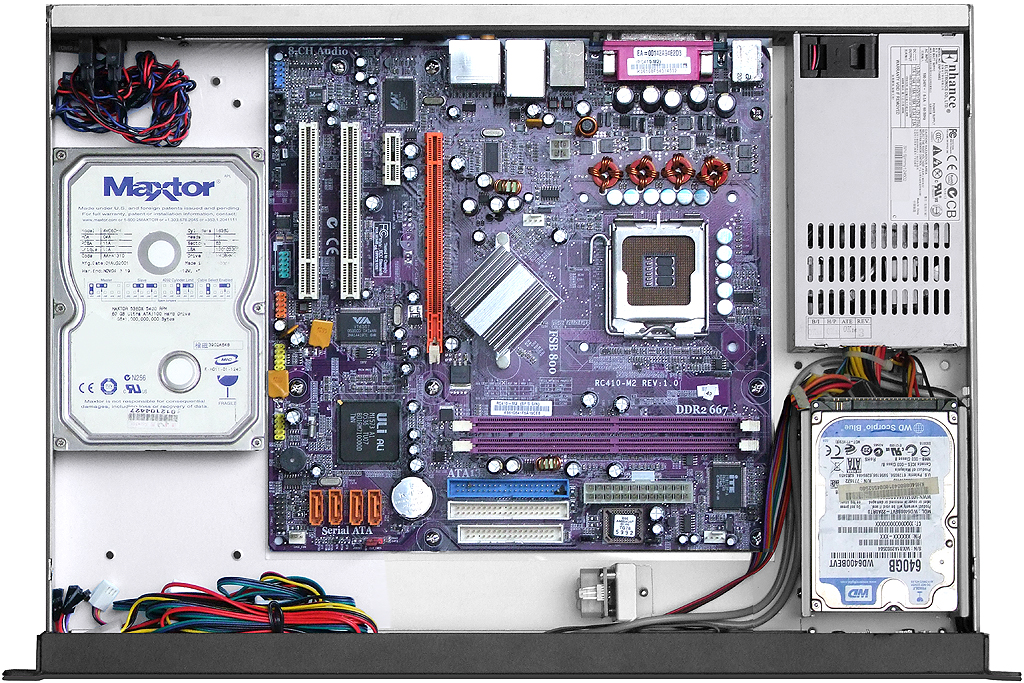

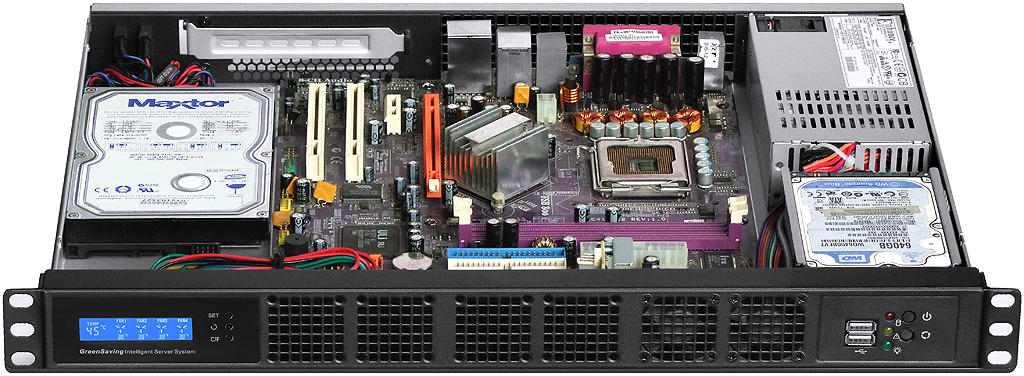

  or 1 x 3.5" HDD & 4 x 9.5mm high 2.5" HDD/SSD (expansion card is not compatible)
  or 1 x 3.5" HDD & 2 x 15mm high 2.5" HDD/SSD (expansion card is not compatible)

* Intelligent EnergySaving device's default is all fans automatically activated if system temperature up to 38 degree-C
* Intelligent EnergySaving device's default is 38 degree-C but individual fan can be adjusted between 30~60 degree-C
* Intelligent EnergySaving device supported with four fan fail's indication and warming (stop warning by any button)
* Intelligent EnergySaving device supported with Celsius or Fahrenheit Degree (convertible by C/F button)

* Mechanism made by high & clean grade Korean SECC sheet metal by 1.0mm~2.0mm thickness

* Equipped two USB 2.0 ports at front bezel

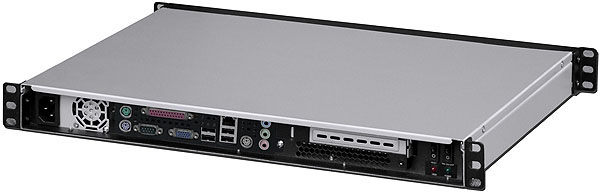

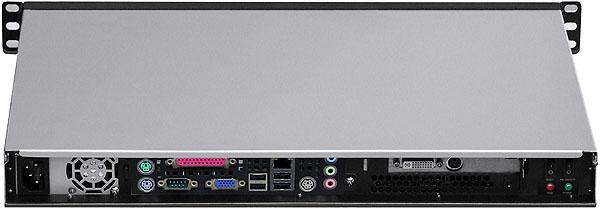

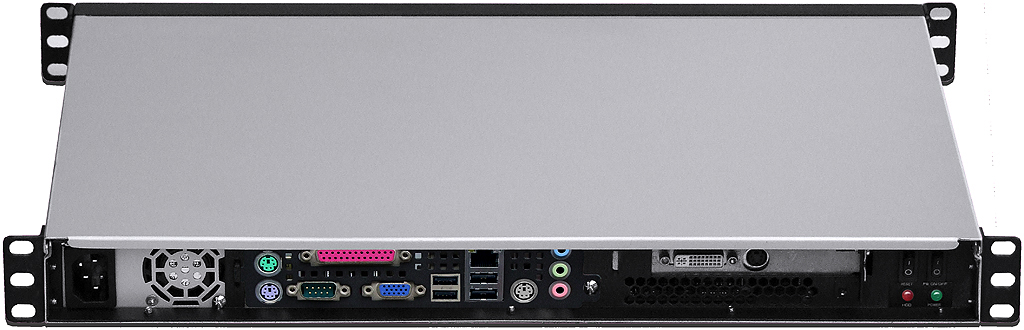

* I/O front access rackmount ears included as standard component

* Two brand new & silent 40mmx20mm intake cooling fans (global warranty 3 years, fan part# D40SM-12C)

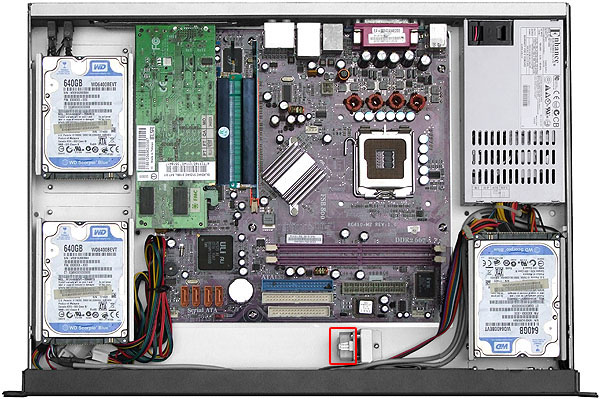

* Optional fan connecting PCB when optional extra 4 fans installed (part# PCB-FAN-S)

* Compatible MB: MicroATX(9.6"x9.6") or Mini-ITX(6.7"x6.7")
* Various IPC China 1U I/O shield selectable (option, increasing new I/O shields every week)
* Support standard 1U FlexATX 150W~250W power supply (maximum power depth: 150mm)

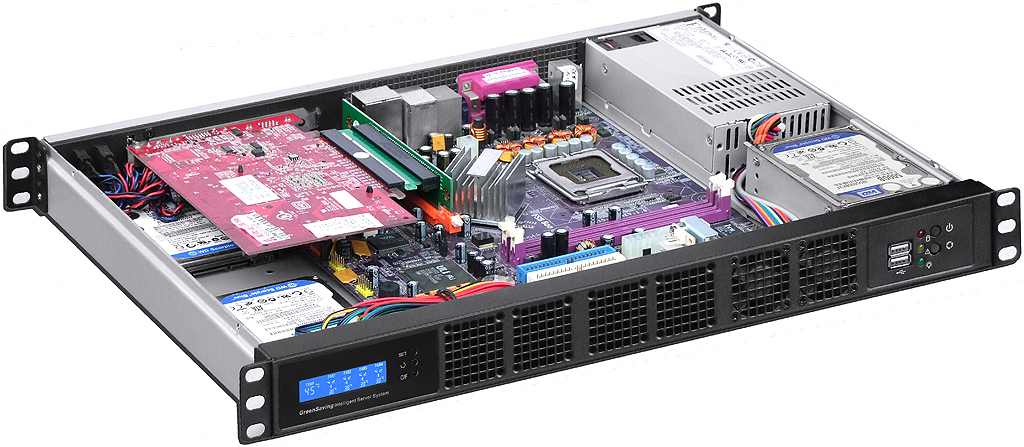

* Support 1 slot full high expansion card (max. 275mm long)
*
Standard paint: scratch-resistant black textured at front and rear
*
IPC China branded chassis with build-in fans and all electronics supported by global 3 years warranty
*
Chassis dimension: 19" x 1U x 320mm (12.6" deep)

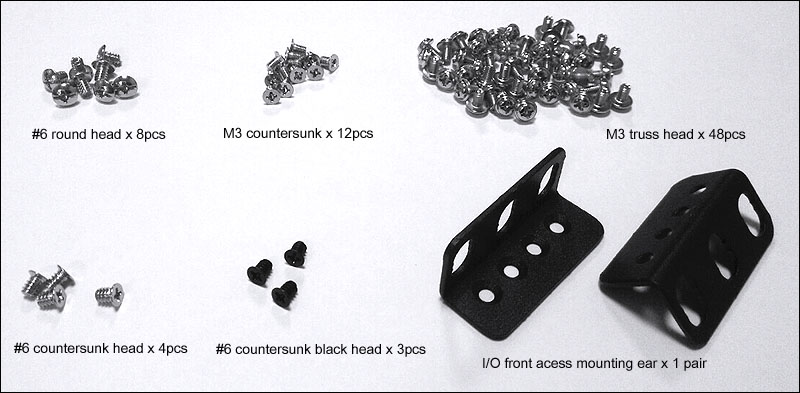

* Accessory pack: #6 round x8, M3 countersunk x12, M3 truss x48, #6 countersunk x4, #6 countersunk black x3, ear x1 pair

* Package: NW 4.0 KG, GW 5.4 KG, 1.4 CUFT (57x45x15.5cm, single box packed)
* Note: if 3.5" HDD installed, the expansion card function is not available

* Green Energy saving server patent pending areas: China, Taiwan, Thailand, Korea, Japan, USA, UK, EU, Russia

* Patent and Law attorney agency: China GuanDong Kwo Hui Attorney at Law

* Drawing      English catalogue      Chassis quick assembly manual

Ordering information:
Chassis model # & description:
G1320 1U MicroATX EnergySaving server chassis

Optional part# & description A-1: (ENP-7025B) 1U FlexATX 250W power supply with PFC (psu size 81.5 x 40.5 x 150/mm)

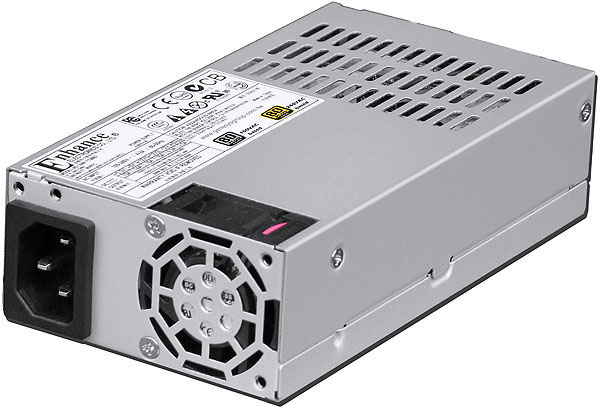

Optional part# & description A-2: (ENP-7130B) 1U FleXATX 300W power supply with PFC (psu size 81.5 x 40.5 x 150/mm)

Optional part# & description B: Various 1U riser card (please inform your MB model number in advance)

Optional part# & description C: Various 1U black I/O shield (please inform your MB model number in advance)

Optional part# & description D: Various 1U active CPU cooler (please inform your MB model number in advance)



1st production and shipment launched on November 09, 2015

Latest webpage updated on June 23, 2016
