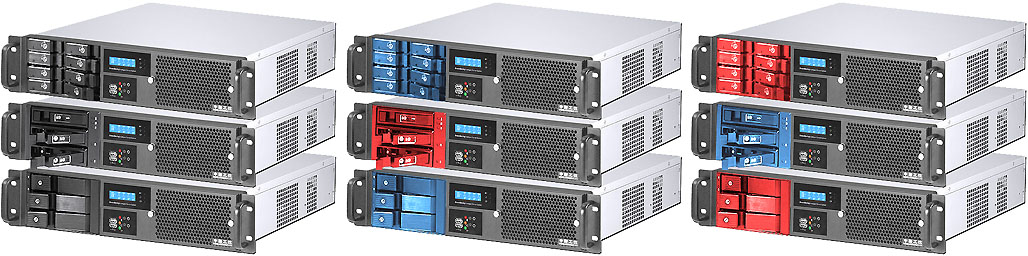

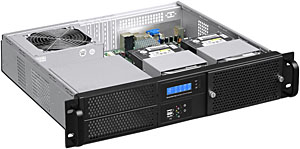

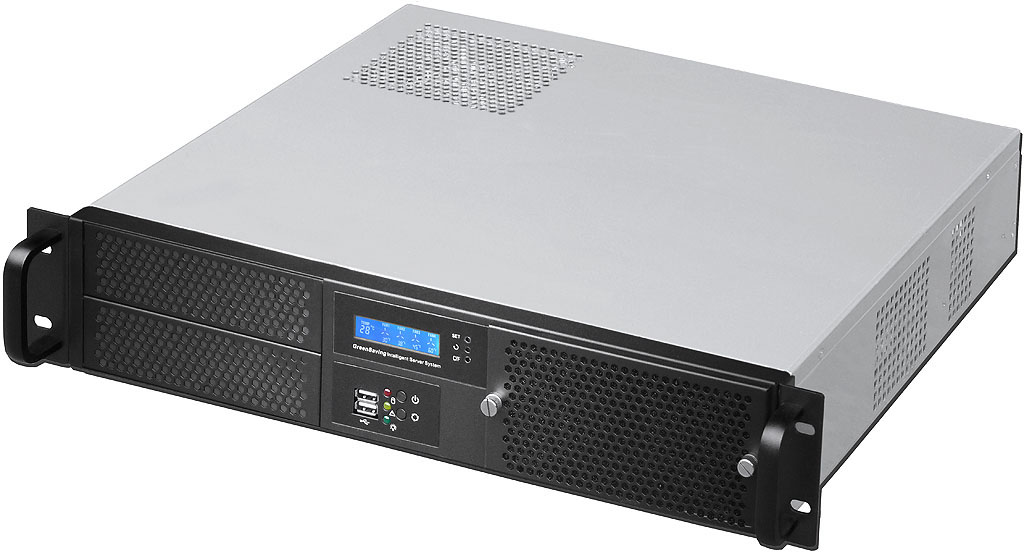

G2380

2U EnergySaving server chassis

01) Build in Intelligent EnergySaving function
02) Efficiently fan life time extendable
03) Build in removable front cover with air filter
04) Compatible with 3.5" HDD or 2.5" HDD
05) High grade aluminum rackmounting handles
06) Support 9.6"x9.6" MicroATX & 6.7"x6.7" Mini-ITX MB
07) Major construction sheet metal by 1.2mm~2.0mm
08) Build in brand new Sunon 80mmx25mm two ball bearing fans
09) IPC China branded model global 3 years warranty

* Drive capacity:
Two 5.25" ODD and two 3.5" HDD bay
(or one 5.25" ODD and two 3.5" HDD and two 2.5" HDD bay)
(or one 5.25" DVD and three 3.5" HDD bay)

* EnergySaving's default is all fans automatically activated if system temperature up to 38 degree-C
* EnergySaving's default is 38 degree-C but individual fan can be adjusted between 30~60 degree-C
* EnergySaving supported with four fan fail's indication and warming (stop warning by any buttons)
* EnergySaving supported with Celsius or Fahrenheit Degree (convertible by C/F button)

* Build in removable front cover with air filter
* Equipped two USB 2.0 ports

* Mechanism made by high & clean grade Korean SECC sheet metal by 1.2mm~2.0mm thickness

* Two Sunon EE80251B1-000C-G99 80mmx25mm intake fans behind the air filter of front bezel

* Noise tested by 10cm distance to running fans is 74dBA (including room noise 44dBA)
* Support 9.6"x9.6" MicroATX and 6.7"x6.7" Mini-ITX MB

* 8cm or 12cm~14cm fan version standard PS2 PSU compatible (PSU depth at 140mm~180mm)

* If 140mm deep PS2 PSU installed at rear, max. 210mm deep 5.25" ODD compatible at front
* If 180mm deep PS2 PSU installed at rear, max. 170mm deep 5.25" ODD compatible at front

* Support 4 slot Low Profile cards (max. 170mm deep if HDD installed & 330mm if no HDD at front)
* Standard paint: scratch-resistant Black textured at front, and protective insulation sheet on body
* IPC China branded server chassis model (with build-in fan) global 3 years warranty
* Chassis dimension: 19" x 2U x 380mm (14.96" deep)
* Package: NW 5 KGM, GW 6.5 KGM, 1.75 CUFT (56.5x51.5x17cm, single box packed)
* Intelligent Green Energy saving server patent pending areas: China, Taiwan, Thailand, Korea, Japan,

USA, UK, EU, Russia

* Patent and Law attorney agency: China GuanDong Kwo Hui Attorney at Law
* Drawing English catalogue

Ordering Information:
Chassis model # & description: G2380 2U EnergySaving server chassis

Option A-1: (NJ-600) 1234U 65kg durable 600mm 2-layer 3-travel universal slide rail (part# is 1 pair, cabinet internal depth 600~1200mm compliant)

Option A-2: (1234U-RMK) 1234U rear mounting kit (part# is 1 pair)

Option B: (25-35-BK) 5.25" space to one 3.5" HDD or one 3.5" HDD space to two 2.5" HDD bracket

Option C: (2525TO3HDBK) two 5.25" drive space converted into three 3.5" HDD bracket

Option D: PS2 psu with 120mm~140mm fan version (power supply depth at 140mm~180mm)

Option E-1: (N-16TM) 1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 12G

Option E-2: (S-16TM) 1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 6G

Option E-3: (N-16TL) 1x5.25" ODD to 1x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option E-4: (S-16TL) 1x5.25" ODD to 1x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option E-5: (N-29SS15) 1x5.25" to 2x2.5" HotSwap Cage SATA/SAS 12G

Option E-6: (N-67SS) 1x5.25" to 6x2.5" HotSwap Cage SATA/SAS 12G

Option E-7: (SS-88TM) 1x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G

Option E-8: (N-49SS-MS) 1x5.25" to 4x2.5" HotSwap Cage SFF-8643 12G

Option E-9: (N-49SS) 1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 12G

Option E-10: (SS-46TM) 1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 6G

Option E-11: (SS-86TM) 2x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G

Option E-12: (N-36TM) 2x5.25" to 3x3.5" HotSwap Cage SATA/SAS 12G

Option E-13: (S-36TM) 2x5.25" to 3x3.5" HotSwap Cage SATA/SAS 6G

Option E-14: (N-36TL) 2x5.25" to 3x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option E-15: (S-36TL) 2x5.25" to 3x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option F-1: (1MSAS-4SATA-500MM) SFF-8087 Mini-SAS (Host) to Four SATA (Device) cable

Option F-2: (SFF-8643-500MM) SFF-8643 Mini-SAS HD (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option F-3: (4SATA-SFF-8643-500MM) Four SATA (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option F-4: (SFF-8643-4SATA-500MM) SFF-8643 Mini-SAS HD (Host) to Four SATA (Device) cable

Option G-1: (2U2011A-8080) 2U Intel LGA2011 active CPU cooler Square

Option G-2: (2U2011A-5694) 2U Intel LGA2011 active CPU cooler Narrow

Option G-3: (2U1150A) 2U Intel LGA115x active CPU cooler

Option G-4: (2U4094A) 2U AMD EPYC SP3 LGA4094 active CPU cooler
