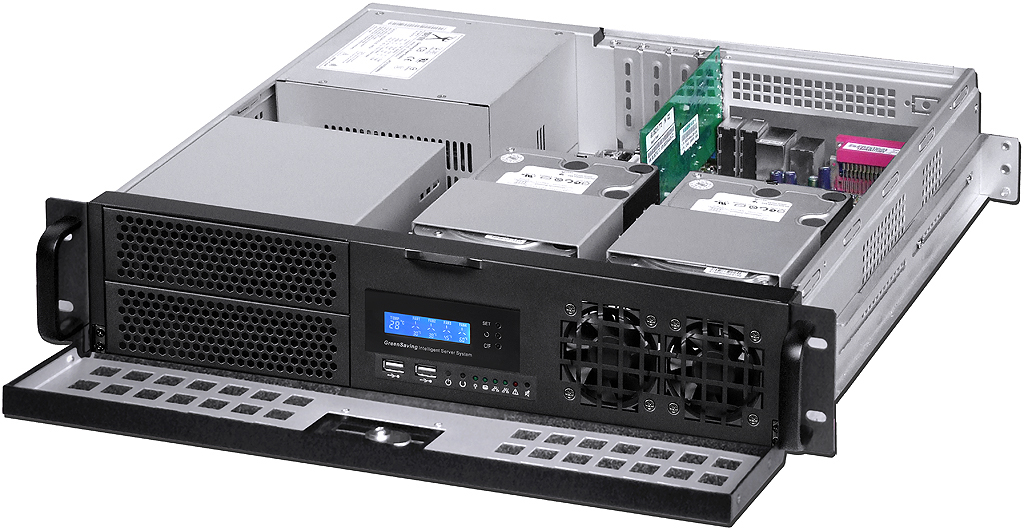

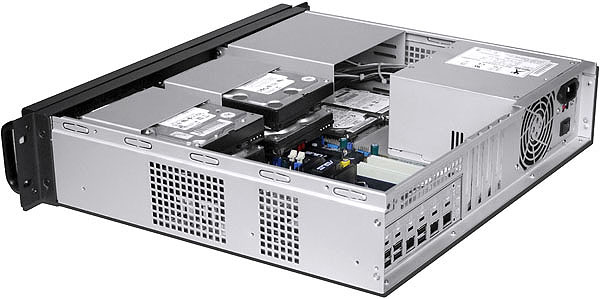

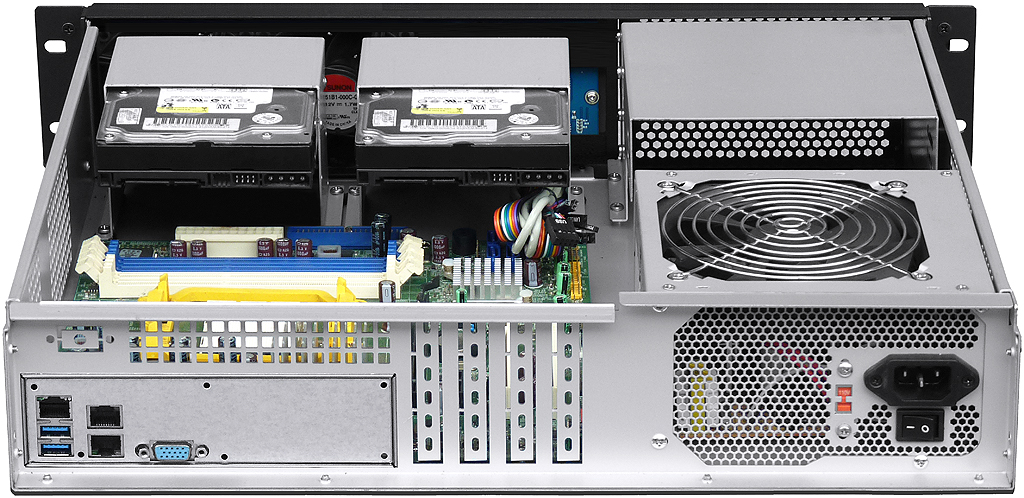

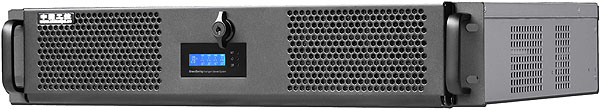

G2380D

2U EnergySaving server chassis

01) build in Intelligent EnergySaving function
02) efficiently fan life time extendable

03) build in security front door with removable air filter
04) compatible with 3.5" HDD or 2.5" HDD
05) high grade aluminum rackmounting handles

06) support 9.6"x9.6" MicroATX & 6.7"x6.7" Mini-ITX MB

07) main construction sheet metal by 1.0mm~2.0mm

08) build in Sunon 60mmx25mm two ball bearing fans

09) bare noise @ 33dBA (fan noise against room noise)

10) IPC China branded model global 3 years warranty

* Drive capacity:

   two 5.25" DVD and two 3.5" HDD bay

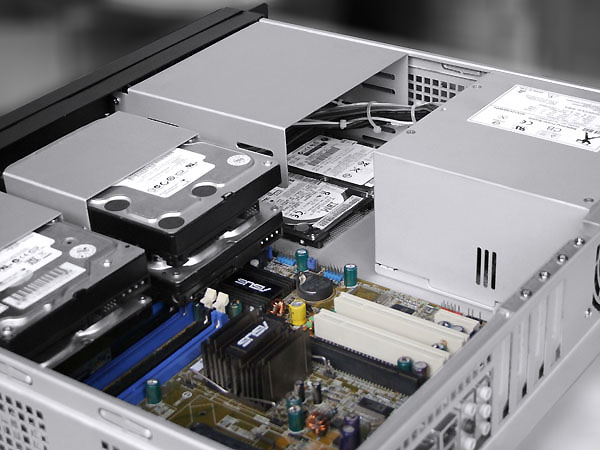

   (or one 5.25" DVD and two 2.5" HDD and two 3.5" HDD bay)

   (or one 5.25" DVD and three 3.5" HDD bay)

* Intelligent EnergySaving device's default is all fans automatically activated if system temperature up to 38 degree-C
* Intelligent EnergySaving device's default is 38 degree-C but individual fan can be adjusted between 30~60 degree-C
* Intelligent EnergySaving device supported with four fan fail's indication and warming (stop warning by any button)
* Intelligent EnergySaving device supported with Celsius or Fahrenheit Degree (convertible by C/F button)

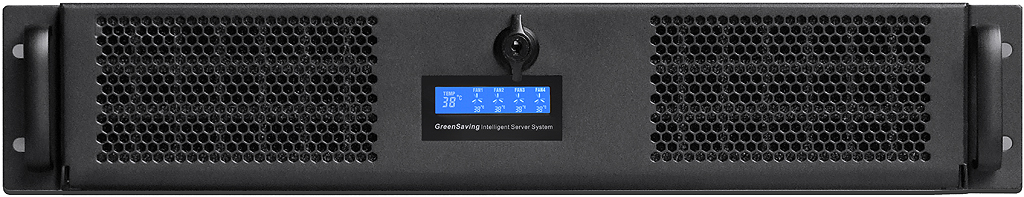

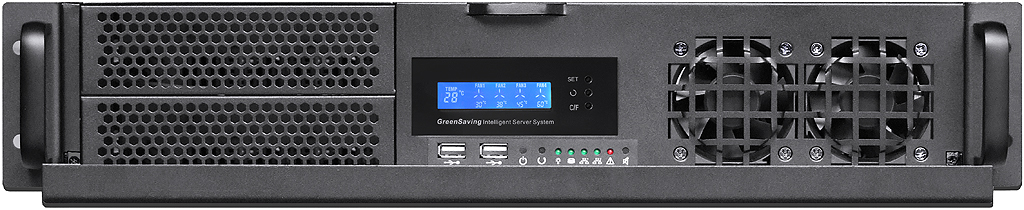

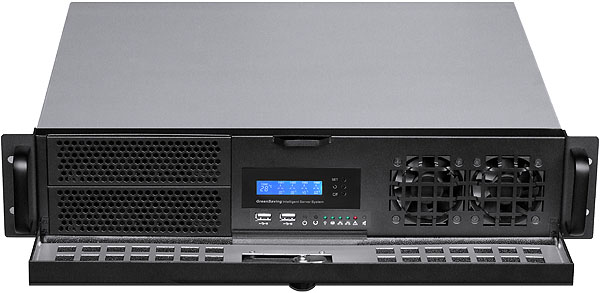

* Build in high grade butterfly keylock security front door with removable filter (90-degree open/close, trayless HDD compatible)

* Equipped two USB 2.0 port

* Build in high grade and durable aluminum rackmounting handles, all sheet metal by SECC 1.0mm~2.0mm thickness

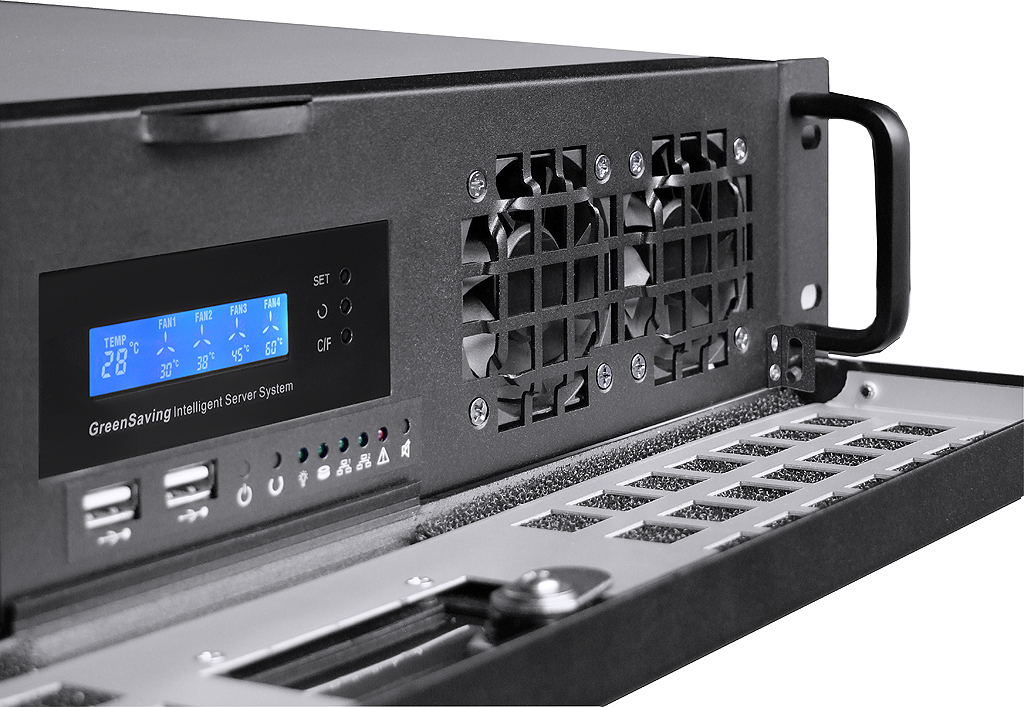

* Two Sunon EB60251B1-000C-C99 60mmx25mm intake 2ball-bearing fans behind the air filter of front bezel

* Room noise without fan activated is 44dBA, tested by 10cm distance to the running fan is 77dBA (including room noise)
* Support 9.6"x9.6" MicroATX and 6.7"x6.7" Mini-ITX MB

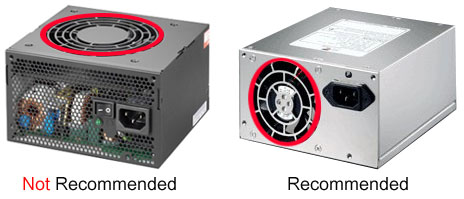

* Support PS2 power supply with 80mm fan version (max. psu depth: 140mm~180mm)

* If 140mm deep PS2 psu installed, max. 210mm deep 5.25" ODD device compatible
* If 180mm deep PS2 psu installed, max. 170mm deep 5.25" ODD device compatible

* Support 4 slot Low Profile expansion cards (max. 170mm deep if HDD installed, 330mm deep if HDD not installed)
* Standard paint: black
* IPC China branded server chassis model (with build-in fans) global 3 years warranty
* Chassis dimension: 19" x 2U x 380mm (14.96" deep)
* Package: NW 5 KGM, GW 6.5 KGM, 1.75 CUFT (56.5x51.5x17cm, single box packed)

* Green Energy saving server patent pending areas: China, Taiwan, Thailand, Korea, Japan, USA, UK, EU, Russia

* Patent and Law attorney agency: China GuanDong Kwo Hui Attorney at Law

* Drawing      English catalogue      Chassis Quick Manual

Ordering Information:
Chassis model # & description: G2380D 2U EnergySaving server chassis

Optional part# & description A: Support PS2 power supply with 80mm fan version (max. psu depth: 140mm~180mm)

Optional part# & description B-1: (NJ-600) 600mm 2-layer 3-travel universal slide rail (part# is 1 pair, cabinet internal depth 600~1200mm compliant)

Optional part# & description B-2: (1234U-RMK) 1234U rear mounting kit (part# is 1 pair)

Optional part# & description C: (25-35-BK) 5.25" space to one 3.5" HDD or one 3.5" HDD space to two 2.5" HDD bracket

Optional part# & description D-1: (2525TO3HDBK) two 5.25" drive space converted into three 3.5" HDD bracket

Optional part# & description D-2: (SS-46TM) 1x5.25" to 4x2.5" SAS/SATA Hot-Swap Cage

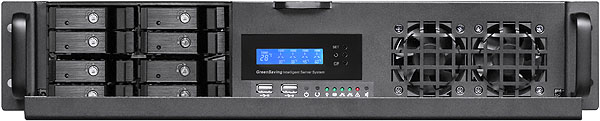

Optional part# & description D-3: (SS-86TM) 2x5.25" to 8x2.5" SAS/SATA Hot-Swap Cage

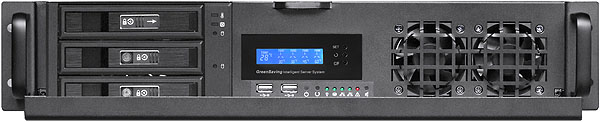

Optional part# & description D-4: (S-36TM) 2x5.25" to 3x3.5" SAS/SATA Hot-Swap Cage

Optional part# & description D-5: (S-36TL) 2x5.25" to 3x3.5" TrayLess SAS/SATA Hot-Swap Cage

Optional part# & description D-6: (S-16TL) 1x5.25" to 1x3.5" TrayLess SAS/SATA Hot-Swap Cage

Optional part# & description D-7: (S-16TM) 1x5.25" to 1x3.5" SAS/SATA Hot-Swap Cage
