R2530

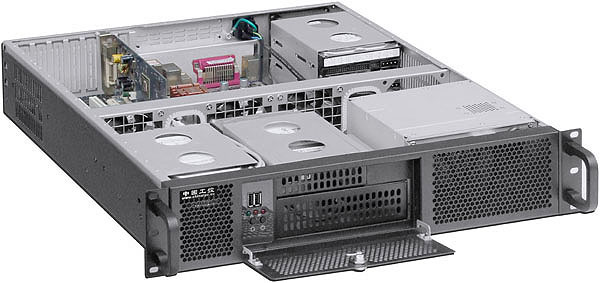

2U Black ATX server chassis

Cost Saving and Quality Promised!

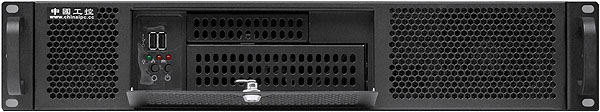

Security front door with keylock function

Dust air filters behind the front bezel
Fan connector PCB routes all fan wires in position
High grade aluminum rackmounting handles

12"x9.6" ATX or MicroATX or smaller MB compatible

7 slot LPF cards or three slot risers as option

Industrial PS2 PSU depth at max. 140mm~180mm

Build in 4 Sunon 80mmx25mm 2ball bearing fans

Bare noise @ 33dBA (fan noise against room noise)

IPC China branded model global 3 years warranty

* Drive Capacity:
   5.25" ODD x 1 and 7 x 3.5" HDD bay ( one of the 3.5" HDD can be installed as FDD device)

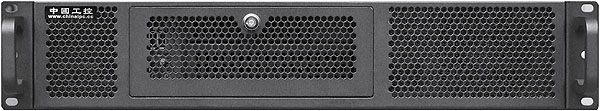

* Security front door with keylock function
* Front bezel equipped with air filters
* Equipped two USB 2.0 port
* Build in durable aluminum extrusion rackmounting handles and high grade SGCC sheet metal material
* Fan connector PCB in the middle fan wall that routes all fan wires into position and fan power failure alert function

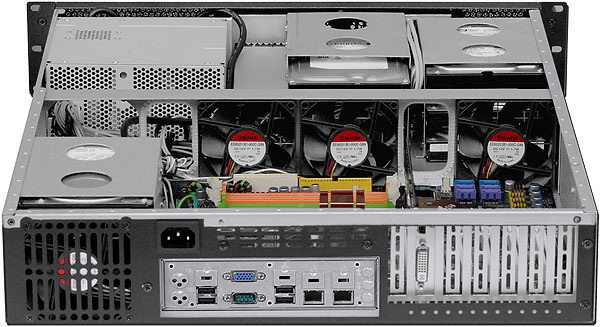

* Cooling by four brand new Sunon EE80251B1-000C-G99 80mmx25mm 2ball bearing intake fans
* Room noise w/o fan activated is 45dBA, tested by 10cm distance to the running fan is 78dBA (including room noise)
* Support standard ATX(12"x9.6") and MicroATX(9.6"x9.6") and Mini-ITX(6.7"x6.7") MB
* Support industrial PS2 power supply with max. depth 140mm~180mm (12cm~14cm fan version not recommended)
* Support 7 slot  Low Profile cards or three slot risers as option (max. 240mm deep expansion cards)
* Standard paint: black
* IPC China branded server chassis model (with build-in fans) global 3 years warranty
* Chassis dimension: 19" x 2U x 530mm (20.86" deep)

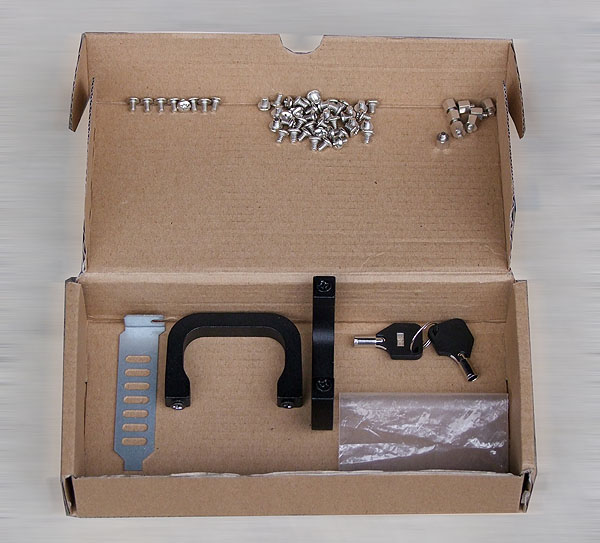

* Accessory pack information: M3 round head nickel plated screw x 8pcs, #6 round head nickel plated screw x 40pcs, MB

   standoff x 8pcs, key x 2pcs, aluminum handle x 2pcs, M4 black countersunk flat head screw x 4pcs, LPF bracket x 1pcs
* Package information: NW 6.92 KGM, GW 9.06 KGM, 2.04 CUFT (17x53x64cm, single box packed)

* Patent and Law attorney agency: China GuanDong Kwo Hui Attorney at Law

* Drawing      English catalogue

Ordering Information:
Ordering Model # & description: R2530 2U Black ATX server chassis

Optional part # & description 1-0: PS2 PSU with max. depth at 180mm (12cm~14cm fan version not recommended)

Optional part # & description 2-0: (NJ-600) 600mm 2-layer 3-travel universal slide rail (part# is 1 pair)

Optional part # & description 2-1: (1234U-RMK) 1234U rear mounting kit (part# is 1 pair)

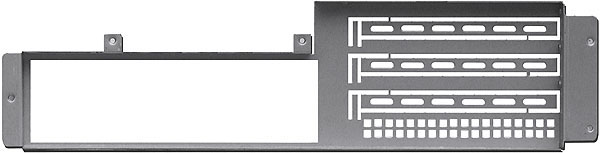

Optional part # & description 3-0: (R2530-3S-RP) R2530 three slot riser card rear panel
