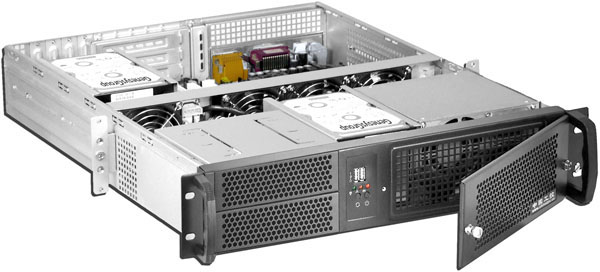

R2550

2U Black ATX server chassis

01) universal patented 2U riser card or LPF rear panel
02) HDD drive bay with anti-vibration function

03) removable front air filter
04) fan connector PCB routes all fan wires in position

05) support 12"x10" eATX or 12"x9.6" ATX or smaller MB

06) main construction sheet metal by 1.0mm~1.2mm

07) high grade SGCC sheet metal

08) build in 4 Sunon 80mmx25mm 2ball bearing fans

09) bare noise @ 20dBA (fan noise against room noise)

10) IPC China branded model global 3 years warranty

* Drive capacity: 2 x 5.25" DVD and 6 x 3.5" HDD bay

* Universal patented 2U riser card or low profile rear panel design (international copyright reserved)
* HDD drive bay with anti-vibration function
* Fan connector PCB in the middle fan wall that routes all fan wires into position

* Removable front air filter

* High level SGCC 1.0mm~1.2mm sheet metal

* Equipped two USB 2.0 ports

* Cooling by four brand new Sunon EE80251B1-000C-G99 80mmx25mm 2ball bearing intake fans

* Room noise without fan activated is 47dBA, tested by 10cm distance to the running fans is 67dBA (including room noise)
* Support standard eATX(12"×10") and ATX(12"x9.6") and MicroATX(9.6"x9.6") and Mini-ITX(6.7"x6.7") MB
* Support standard PS2 power supply with 80mm fan version (maximum 160mm deep)

* Support patented 3 slot riser + 7 slot Low Profile cards (max. 250mm long)

* Standard paint: black
* IPC China branded server chassis model (with build-in fans) global 3 years warranty
* Chassis dimension: 19" x 2U x 550mm (21.65" deep)

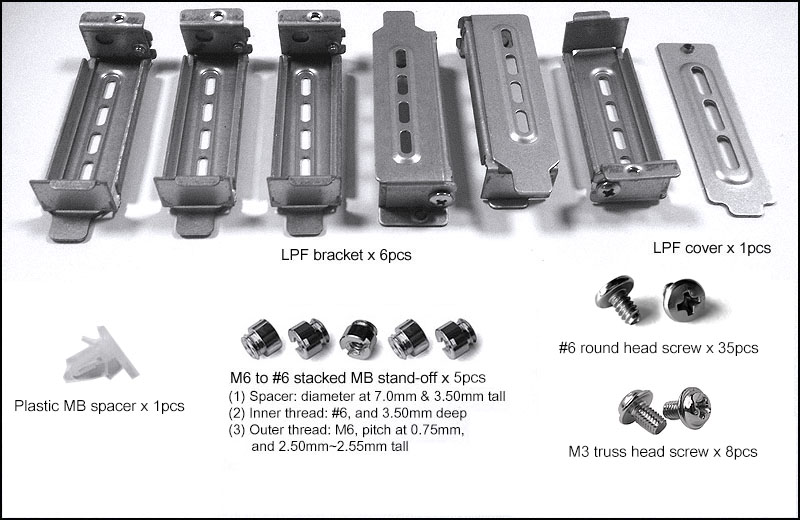

* Accessory pack: M3 truss head nickel screw x 8pcs, #6 round head nickel screw x 35pcs, #6 stacked MB stand-off x 10pcs,

   LPF bracket x 6pcs, LPF cover x 1pcs
* Package: NW 8 KGM, GW 10 KGM, 2.29 CUFT (68x56x17cm, single box packed)

* Patent# M366272 copyright officially announced in Taiwan, China, Thailand, Korea, Japan, USA, England, EU, Russia, India

* Patent and Law attorney agency: China GuanDong Kwo Hui Attorney at Law

* Drawing      English catalogue

Ordering Information:
Chassis model # & description: R2550 2U Black ATX server chassis

Optional part# & description A-0: Support PS2 power supply with 80mm fan version (max. psu depth: 140mm~160mm)

Optional part# & description B-0: (NJ-600) 1234U 65kg durable 600mm 2-layer 3-travel universal slide rail (part# is 1 pair)

Optional part# & description B-1: (1234U-RMK) 1234U rear mounting kit (part# is 1 pair)

Optional part# & description C-0: Various 2U riser card (please inform MB model number in order to suggest proper riser)

Optional part# & description D-0: (25-35-BK) 5.25" space to one 3.5" HDD or one 3.5" HDD space to two 2.5" HDD bracket

Optional part# & description E-0: (2525TO3HDBK) two 5.25" drive space converted into three 3.5" HDD bracket

Optional part# & description E-1: (SS-46TM) 1x5.25" to 4x2.5" SAS/SATA Hot-Swap Cage

Optional part# & description E-2: (SS-86TM) 2x5.25" to 8x2.5" SAS/SATA Hot-Swap Cage

Optional part# & description E-3: (S-36TM) 2x5.25" to 3x3.5" SAS/SATA Hot-Swap Cage

Optional part# & description E-4: (S-36TL) 2x5.25" to 3x3.5" TrayLess SAS/SATA Hot-Swap Cage

Optional part# & description E-5: (S-16TL) 1x5.25" to 1x3.5" TrayLess SAS/SATA Hot-Swap Cage
