1st production and shipment launched on April 24, 2014

Latest webpage updated on June 25, 2019

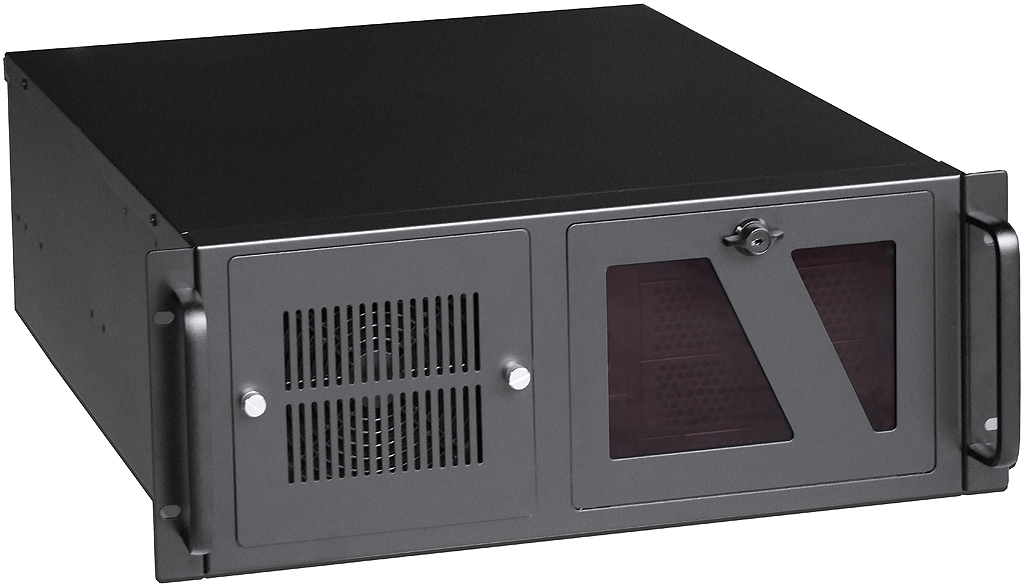

R4480

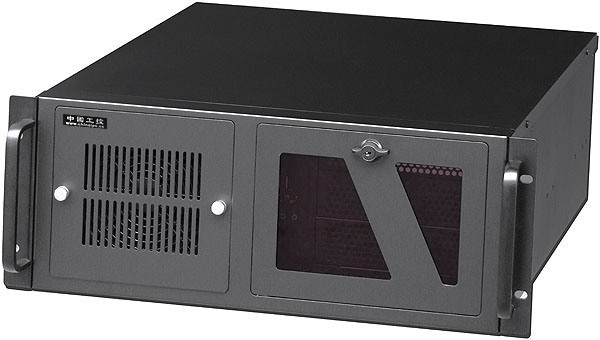

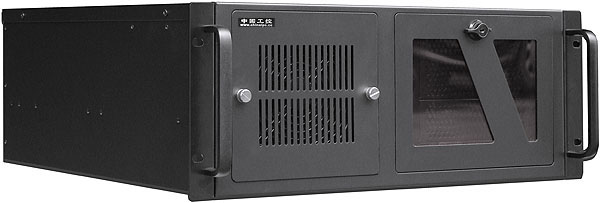

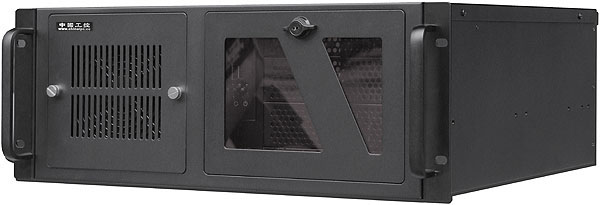

4U black eATX server chassis

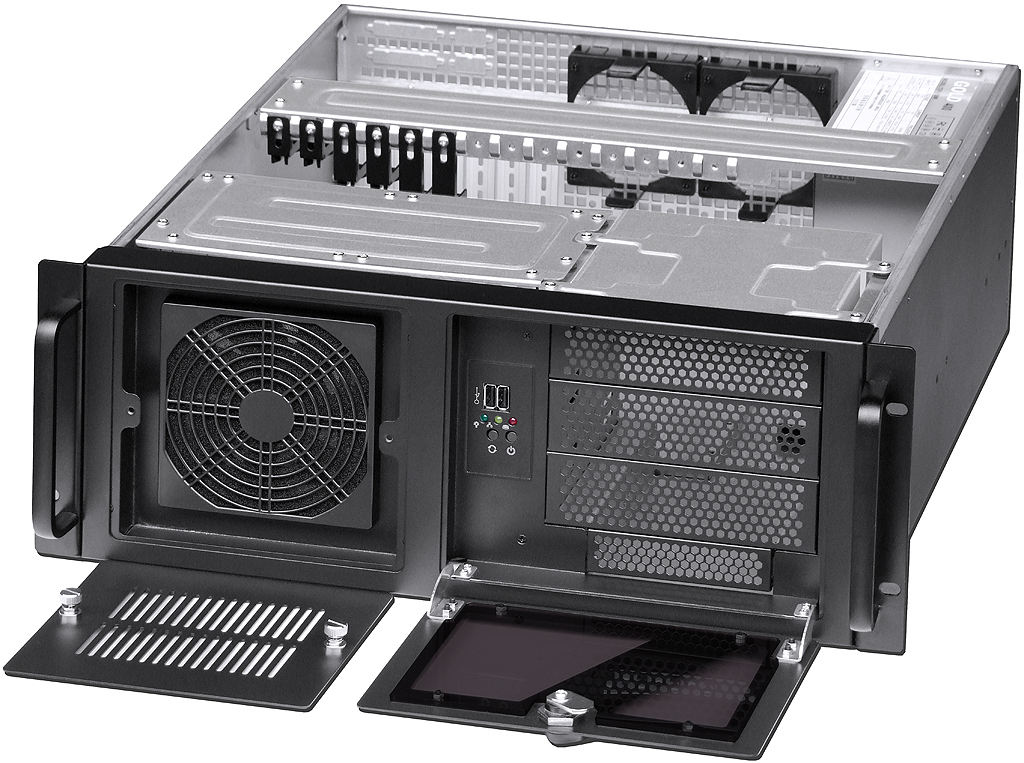

R4480 is designed and made by precise tooling as the newest and rugged 4U chassis product, it features the main construction build by 1.2mm~2.0mm sheet metal thickness, and all electronic components including fans also supported with global quality guarantee at least for 3 years. The internal compartment inside of the chassis can be mounted maximum 12" x 10.5" dual CPU motherboard, and allow the expansion cards' hold-down clamps to be height adjustable and forward or backward position adjustable in order to ensure the stability during the travel of transportation.

Power supplies also support PS2 or a variety of PS2 Mini-Redundant power supply to be accurate perfect mounting of the front and the rear side as well. Prices also have great competitiveness, call or send inquires at any time and welcome global distribution.

Computex 2014 The Best 4U chassis

* 12 Drives Capacity: 3 x 5.25" ODD & 9 x 3.5" HDD bay horizontally installable (one of 3.5" allows FDD)
* The main sheet metal constructed by 1.2mm ~ 2.0mm SGCC mechanism
* High strength aluminum alloy die casting handles ensure stability during rackmounting

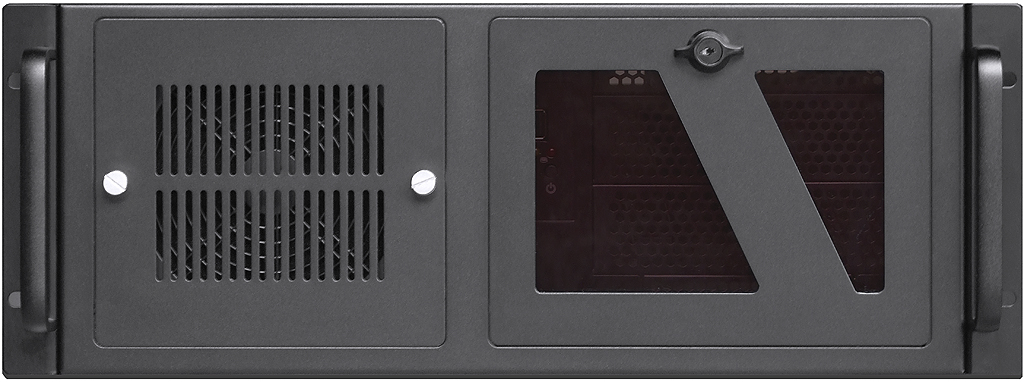

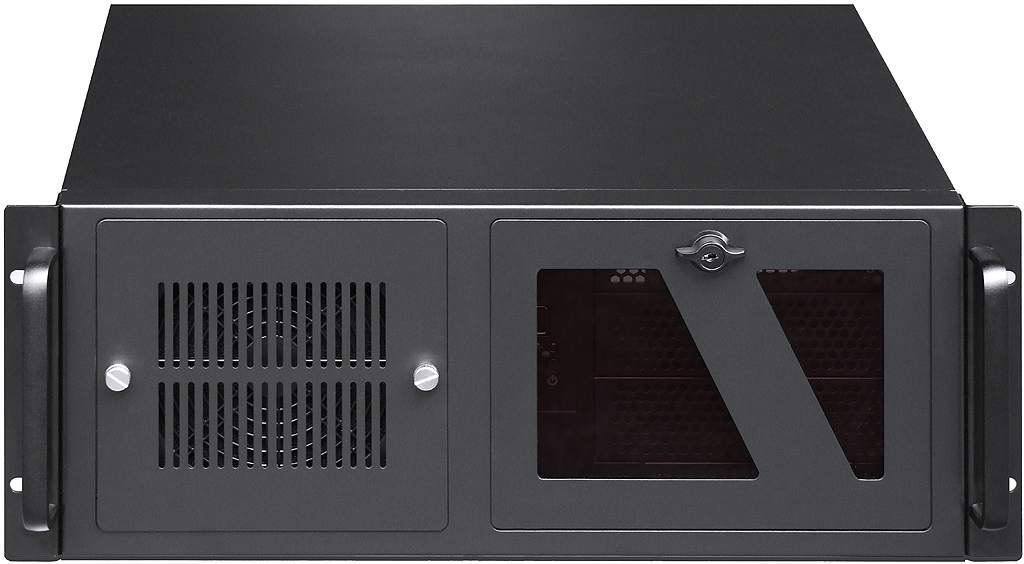

* Equipped with aluminum alloy butterfly keylock & advanced door with acrylic window

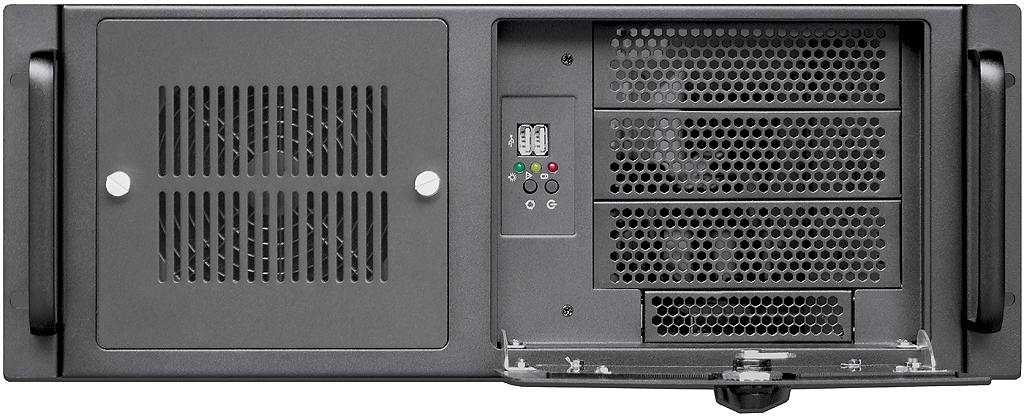

* Equipped with two USB 2.0 ports as well as internal display LAN/HDD/Power LED lights
* Front 12cm dust filter with captive hand screws without opening the front door
* One 120mm x 25mm cooling fan behind the dust filter (fan part# D12SM-12)
* Equipped with vibration reduction for all HDD and ODD, extend storage appliance life
* Forward & backward adjustable hold-down card clamp with 6 height adjustable clamps
* MB: CEB (12"×10.5"), ATX(12"x9.6"), MicroATX(9.6"x9.6"), Mini-ITX(6.7"x6.7")
* 7-slot full height expansion cards up to max. 230mm deep (if HDD installed)
* 7-slot full height expansion cards up to max. 282mm deep (if no HDD installed)
* Build-in two ABS screwless 80mmx25mm fan brackets at rear panel (fans are option)
* 8cm or 12cm~14cm fan version standard PS2 PSU compatible (max. depth at 220mm)
* SureStar R4S PS2 Mini Redundant RPS (depth at 174mm, front & rear precisely fixed)
* Zippy MRT & MRW PS2 Mini Redundant RPS (depth at 185mm, front & rear precisely fixed)
* SureStar R4B PS2 Mini Redundant RPS (depth at 199mm, front & rear precisely fixed)
* Zippy MRG PS2 Mini Redundant RPS (depth at 200mm, front & rear precisely fixed)
* Standard paint: scratch-resistant Black textured or scratch-resistant Beige RAL 9018
* IPC China branded product including build in fan(s) global warranty 3 years
* Chassis dimension: 19" x 4U x 480mm (18.89" deep)
* Accessory pack: MB stand-off x10, #6 round x52, M3 truss x16, key x2, hold-down card clamp x6, ear & handle x1 pair
* Package: NW 12.00 KG, GW 13.50 KG, 3.03 CUFT (60x55x26cm, durable box packed)

* IPC China brand Copyright reserved, Law attorney agency: China GuanDong Kwo Hui Attorney at Law

* Drawing A      Drawing B      Drawing C      Drawing D      English catalogue      Chassis quick assembly manual

Ordering information:
Chassis model # & description: R4480 4U black eATX server chassis (painted on surface, no paint inside, international version)

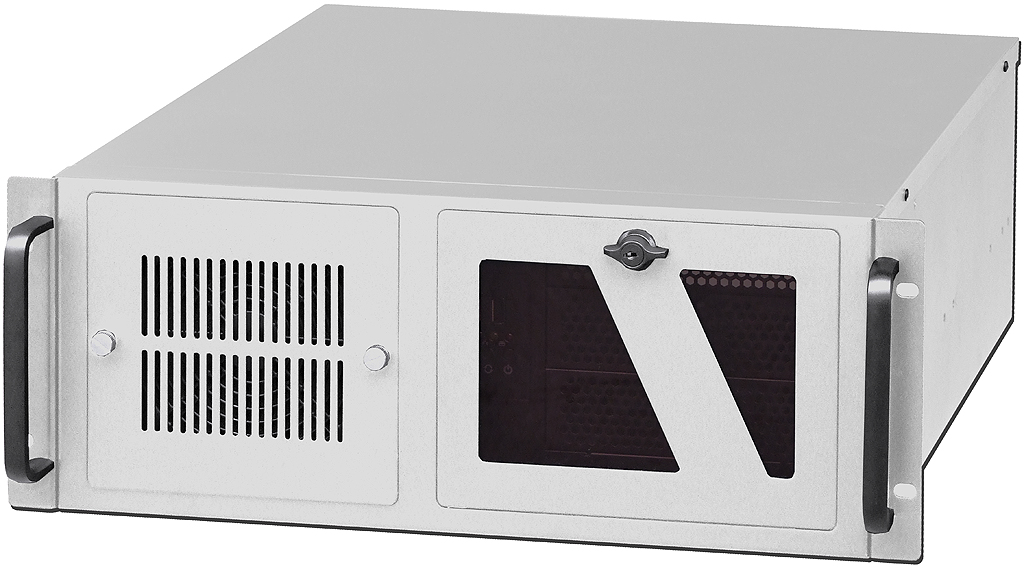

Chassis model # & description: R4480W 4U beige eATX server chassis (painted on surface, no paint inside, international version)

Chassis model # & description: R4480X 4U black eATX server chassis (painted on surface & inside, China national version)

Option A-1: PS2 psu with 120mm~140mm fan version (max. psu depth: 220mm)

Option A-2: SureStar R4S series 400W/500W PS2 Mini Redundant PS (depth at 174mm)

Option A-3: Zippy MRT & MRW series 300W~600W PS2 Mini Redundant power supply (depth at 185mm)

Option A-4: Sysgration 400W~500W EFRP-2402 & EFRP-2462 & EFRP-S2502 PS2 Mini RPS (depth at 190mm)

Option A-5: SureStar R4B series 600W/700W/800W PS2 Mini Redundant PS (depth at 199mm)

Option A-6: Zippy MRG series 500W~800W PS2 Mini Redundant power supply (depth at 200mm)

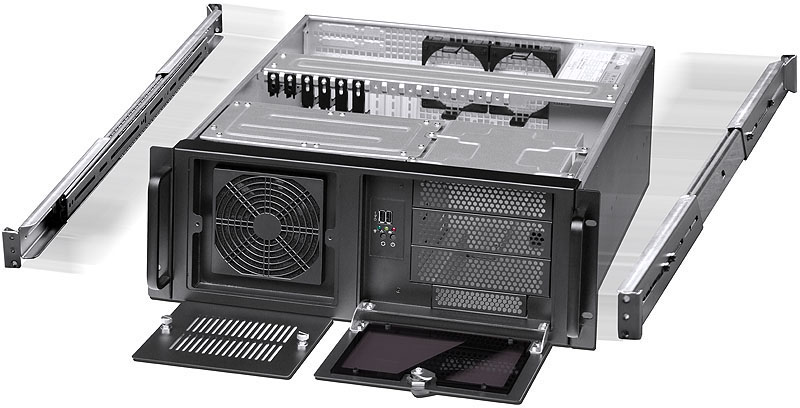

Option B-1: NJ-600, 1234U 65kg durable 600mm 2-layer 3-travel universal slide rail (part# is 1 pair)

Option B-2: 1234U-RMK, 1234U rear mounting kit (part# is 1 pair)

Option C: D80SM-12, YateLoon 80mmx25mm exhaust cooling fan (part# is 1pcs, can install 2pcs at rear panel)

Option D: 25-35-BK, 5.25" space to one 3.5" HDD or one 3.5" HDD space to two 2.5" HDD bracket

Option E-1: N-20SS, 1x3.5" FDD to 2x2.5" TrayLess HotSwap Cage SATA/SAS 12G

Option E-2: SS-21TL, 1x3.5" FDD to 2x2.5" TrayLess HotSwap Cage SATA/SAS 6G

Option F-1: 2525TO3HDBK, two 5.25" drive space converted into three 3.5" HDD bracket

Option F-2: 3525TO5HDBK, three 5.25" drive space converted into five 3.5" HDD bracket

Option F-3: N-16TM, 1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 12G

Option F-4: S-16TM, 1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 6G

Option F-5: N-16TL, 1x5.25" ODD to 1x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option F-6: S-16TL, 1x5.25" ODD to 1x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option F-7: N-29SS15, 1x5.25" to 2x2.5" HotSwap Cage SATA/SAS 12G

Option F-8: N-67SS, 1x5.25" to 6x2.5" HotSwap Cage SATA/SAS 12G

Option F-9: SS-88TM, 1x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G

Option F-10: N-49SS-MS, 1x5.25" to 4x2.5" HotSwap Cage SFF-8643 12G

Option F-11: N-49SS, 1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 12G

Option F-12: SS-46TM, 1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 6G

Option F-13: SS-86TM, 2x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G

Option F-14: N-36TM, 2x5.25" to 3x3.5" HotSwap Cage SATA/SAS 12G

Option F-15: S-36TM, 2x5.25" to 3x3.5" HotSwap Cage SATA/SAS 6G

Option F-16: N-36TL, 2x5.25" to 3x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option F-17: S-36TL, 2x5.25" to 3x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option F-18: SS-126TM, 3x5.25" to 12x2.5" HotSwap Cage SATA/SAS 6G

Option F-19: N-46TM-MS, 3x5.25" to 4x3.5" HotSwap Cage SFF-8643 12G

Option F-20: N-46TM, 3x5.25" to 4x3.5" HotSwap Cage SATA/SAS 12G

Option F-21: S-46TM, 3x5.25" to 4x3.5" HotSwap Cage SATA/SAS 6G

Option F-22: N-46TL-MS, 3x5.25" to 4x3.5" TrayLess HotSwap Cage SFF-8643 12G

Option F-23: N-46TL, 3x5.25" to 4x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option F-24: S-46TL, 3x5.25" to 4x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option F-25: N-56TM, 3x5.25" to 5x3.5" HotSwap Cage SATA/SAS 12G

Option F-26: S-56TM, 3x5.25" to 5x3.5" HotSwap Cage SATA/SAS 6G

Option F-27: N-56TL, 3x5.25" to 5x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option F-28: S-56TL, 3x5.25" to 5x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option G-1: 1MSAS-4SATA-500MM, SFF-8087 Mini-SAS (Host) to Four SATA (Device) cable

Option G-2: SFF-8643-500MM, SFF-8643 Mini-SAS HD (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option G-3: 4SATA-SFF-8643-500MM, Four SATA (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option H-1: 2U2011A-8080, 2U Intel LGA2011 active CPU cooler Square

Option H-2: 2U2011A-5694, 2U Intel LGA2011 active CPU cooler Narrow

Option I: 4U-14S-RP, 14 slot rear panel (can be installed with the rear plate of chassis)
