G2250

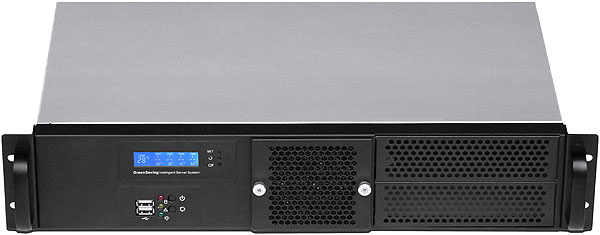

2U Mini-ITX EnergySaving server chassis

01) Build in Intelligent EnergySaving function
02) Efficiently fan life time extendable

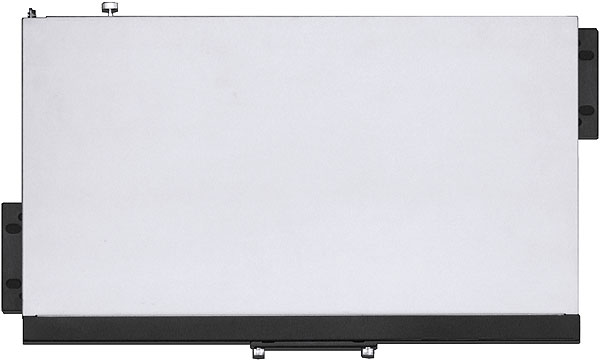

03) 2U rackmount, wallmount, desktop, multi-function

04) Maximum 4x2.5" HDD, 2x3.5" HDD, 2x5.25" ODD

05) Various hotswap 2.5" or 3.5" HDD cage (option)

06) Equipped two USB 2.0 ports at front bezel
07) Build in Sunon 80mmx25mm two ball bearing fan

08) Removable dust filter & quick assembly riser

09) Mini-ITX MB compatible, chassis depth 250mm

10) Main sheet metal by 1.2mm~2.0mm thickness

11) High grade Korean SECC (not cheap SGCC)

12) Various 2U riser card compatible (option)

13) Standard 1U FlexATX 250W~400W psu (option)

14) IPC China branded model global 3 years warranty

* Drive capacity: 2x5.25" ODD (max. 160mm deep), 4x2.5" HDD/SSD (max. 15mm high), 2x3.5" HDD (anti-vibration)
* Intelligent EnergySaving device's default is all fans automatically activated if system temperature up to 38 degree-C
* Intelligent EnergySaving device's default is 38 degree-C but individual fan can be adjusted between 30~60 degree-C
* Intelligent EnergySaving device supported with four fan fail's indication and warming (stop warning by any button)
* Intelligent EnergySaving device supported with Celsius or Fahrenheit Degree (convertible by C/F button)

* Build in high grade and durable aluminum rackmounting handles

* High & clean grade Korean SECC sheet metal by 1.2mm~2.0mm thickness with protective sheet on surface

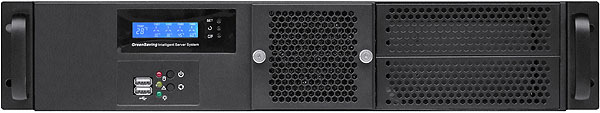

* Equipped with two USB 2.0 ports as well as internal display LAN/HDD/Power LED lights on front bezel

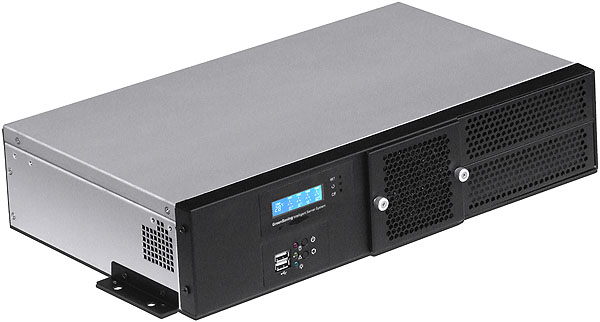

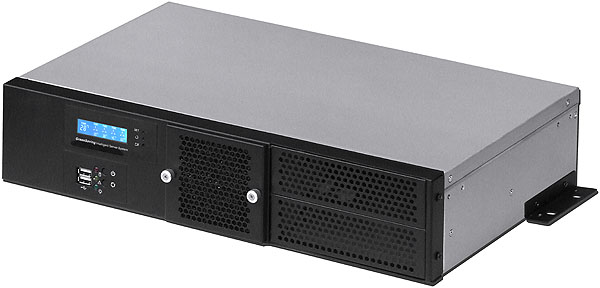

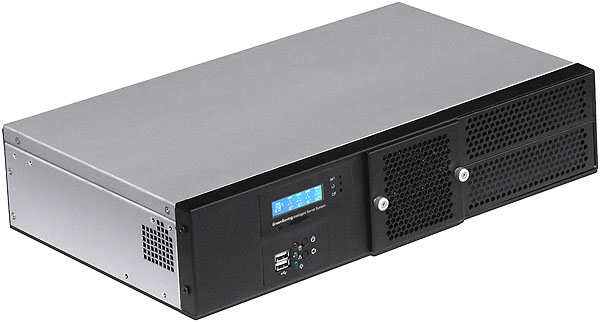

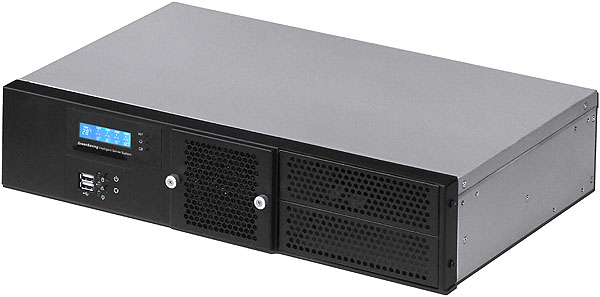

* Equipped with 2U rackmount, wallmount, desktop, multi-functional design

* Equipped with Removable dust filter & quick assembly riser card holder

* Build in one Sunon EE80251B1-000C-G99 80mmx25mm intake fan behind the air filter of front bezel

* Compatible MB: Mini-ITX(6.7"x6.7"), chassis depth at 250mm only
* Support standard 1U FlexATX 250W~400W power supply (maximum power depth at 150mm)
* Support 1 slot full high expansion card (max. 175mm long, optional 2U one slot riser card required)
* Standard paint: scratch-resistant black textured at front section
* IPC China branded chassis with build-in fan and all electronics supported by global 3 years warranty
* Chassis dimension: 19" x 2U x 250mm (9.84" deep)

* Accessory pack: #6 round screw x17, M3 truss screw x7, M3 countersunk screw x16
* Package: NW 4.5 KG, GW 5.5 KG, 1.34 CUFT (57x38x17.5cm, single box packed)
* Green Energy saving server patent pending areas: China, Taiwan, Thailand, Korea, Japan, USA, UK, EU, Russia
* Patent and Law attorney agency: China GuanDong Kwo Hui Attorney at Law

* Drawing      English catalogue      Chassis quick assembly manual

Ordering information:
Chassis model # & description: G2250 2U Mini-ITX EnergySaving server chassis

Option A-1: (ENP-7025B) 1U FlexATX 250W power supply with PFC (psu size 81.5 x 40.5 x 150/mm)

Option A-2: (ENP-7130B) 1U FleXATX 300W power supply with PFC (psu size 81.5 x 40.5 x 150/mm)

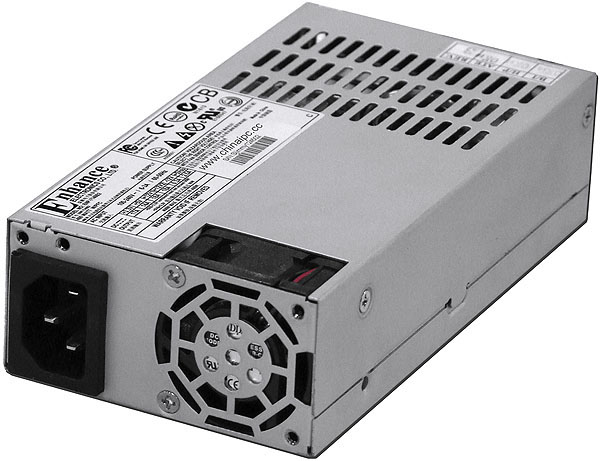

Option A-3: (ENP7140B) 1U FleXATX 400W power supply with PFC (psu size 81.5 x 40.5 x 150/mm)

Option B: Various 2U one slot riser card (please inform your MB model number in advance)

Option C: (25-35-BK) 5.25" space to one 3.5" HDD or one 3.5" HDD space to two 2.5" HDD bracket

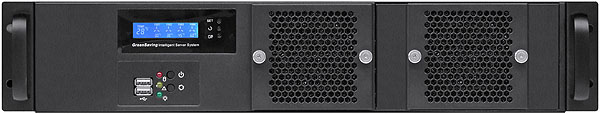

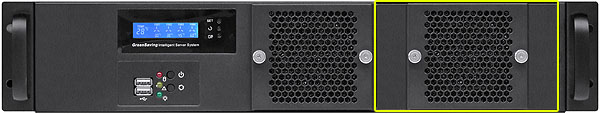

Option D-1: (SUNON8025-525BK) two 5.25" drive space into one Sunon 8025 fan & dust filter assembly

Option D-2: (2525TO3HDBK) two 5.25" drive space converted into three 3.5" HDD bracket

Option D-3: (SS-46TM) 1x5.25" to 4x2.5" SAS/SATA Hot-Swap Cage (4x2.5" internal HDD not allowed to install)

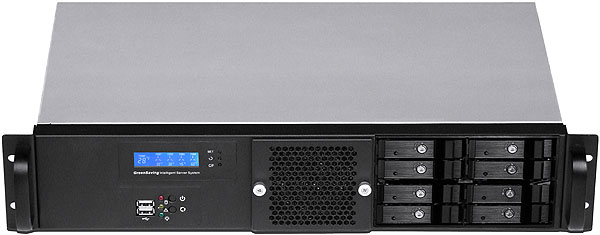

Option D-4: (SS-86TM) 2x5.25" to 8x2.5" SAS/SATA Hot-Swap Cage

Option D-5: (S-36TM) 2x5.25" to 3x3.5" SAS/SATA Hot-Swap Cage (4x2.5" internal HDD not allowed to install)

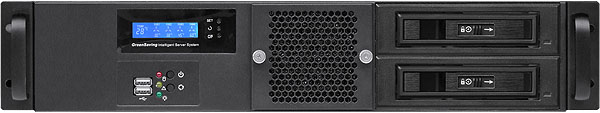

Option D-6: (S-36TL) 2x5.25" to 3x3.5" TrayLess SAS/SATA Hot-Swap Cage (4x2.5" internal HDD not allowed to install)

Option D-7: (S-16TL) 1x5.25" to 1x3.5" TrayLess SAS/SATA Hot-Swap Cage (4x2.5" internal HDD not allowed to install)

Option D-8: (S-16TM) 1x5.25" to 1x3.5" SAS/SATA Hot-Swap Cage (4x2.5" internal HDD not allowed to install)

Option E-1: (NJ-600) 600mm 2-layer 3-travel universal slide rail (cabinet internal depth 600~1200mm compliant)

Option E-2: (1234U-RMK) 1234U rear mounting kit (part# is 1 pair)
