G4300 4U ATX EnergySaving server chassis

Product announcement or 1st production dated on March 19, 2019, webpage updated on April 25, 2024









































* EnergySaving function 1: Default is all fans automatically activated if system temperature up to 38 degree-C
* EnergySaving function 2: Default is 38 degree-C but individual fan can be adjusted between 30~60 degree-C
* EnergySaving function 3: Four fan fail display and alert (stop warning by any button)
* EnergySaving function 4: Device can be switched to Celsius or Fahrenheit Degree (push C/F button)

* Drive Space: Two 5.25" ODD bay & one 3.5" FDD/HDD bay or instead by two 2.5" SSD bay

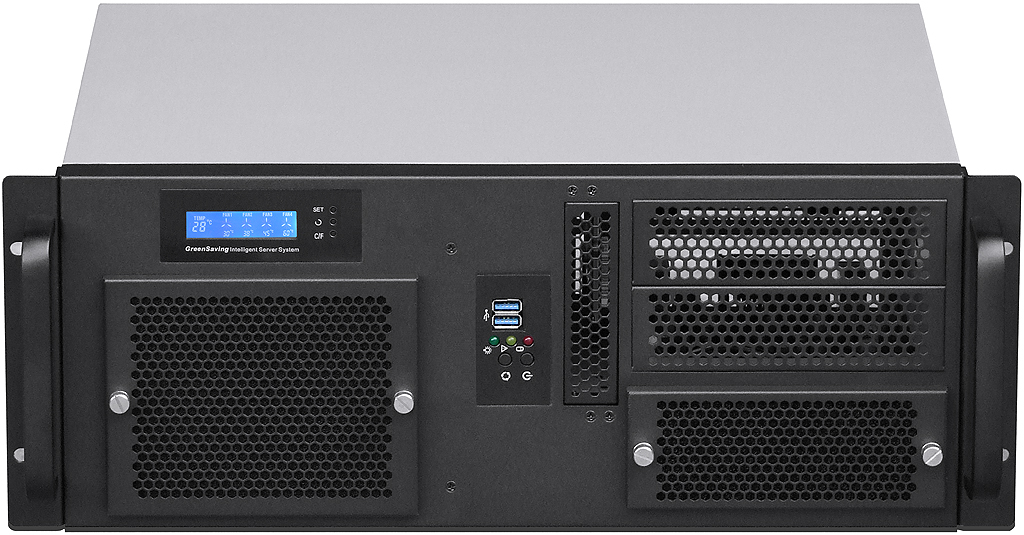

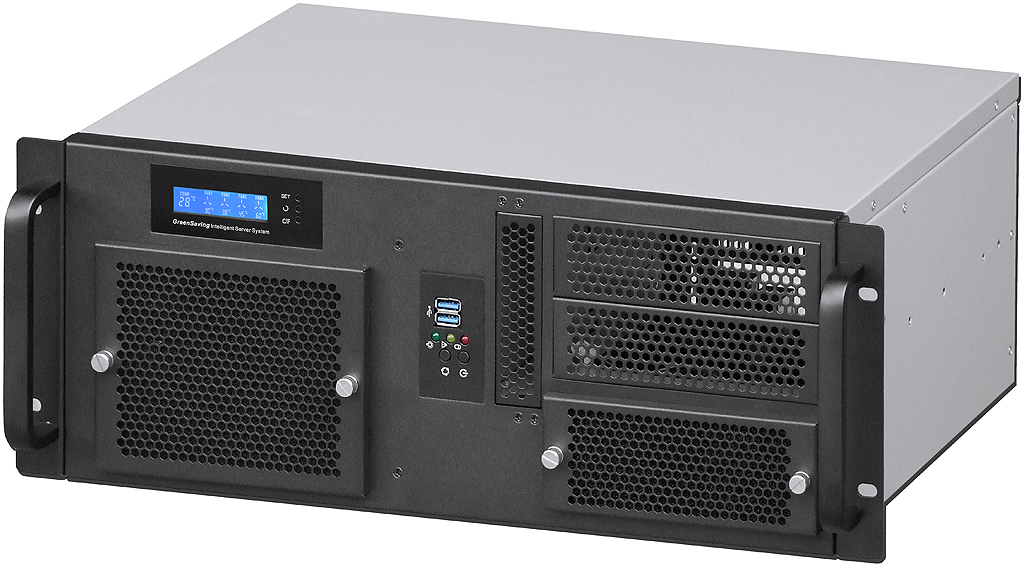

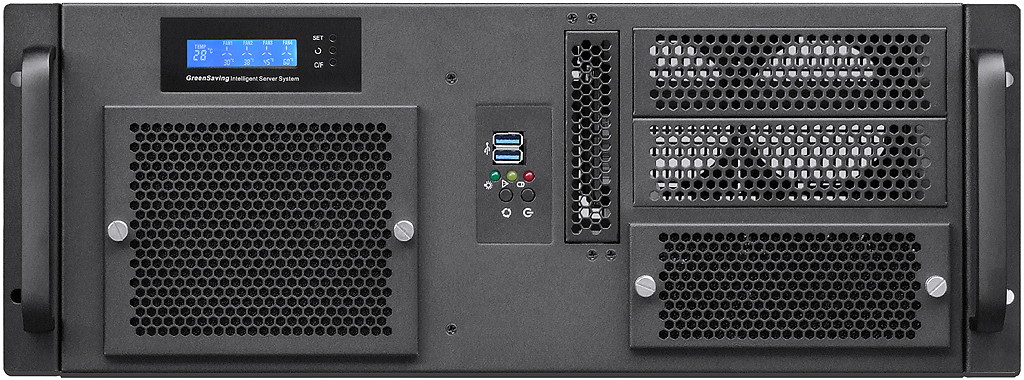

* Standard with two USB 3.0 ports and LAN/HDD/Power LED at front bezel

* Standard with one brand new 120mmx25mm intake fan at left front (fan part# D12SM-12)
* Standard with two brand new 60mmx25mm intake fans at right front (fan part# D60SM-12)

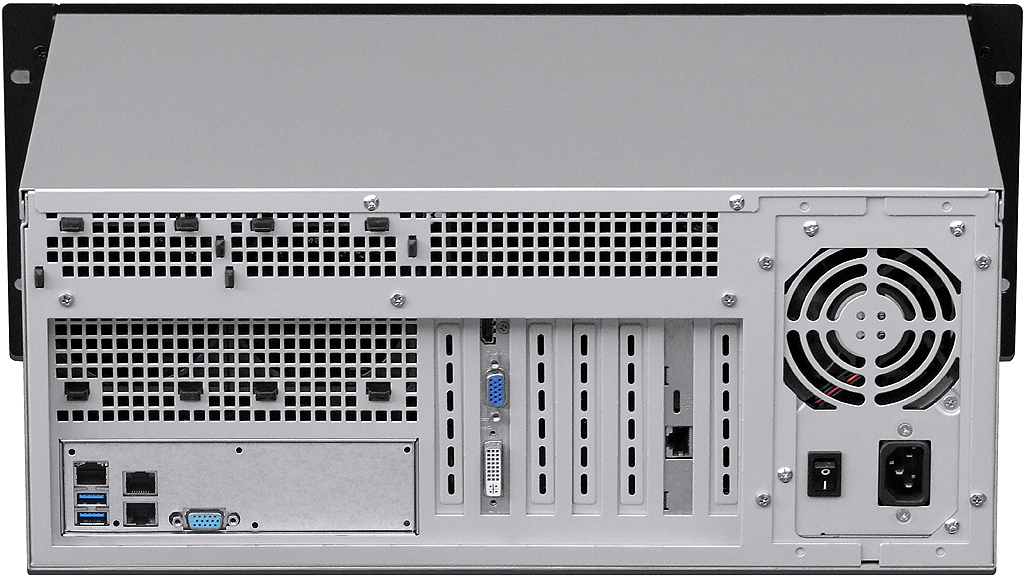

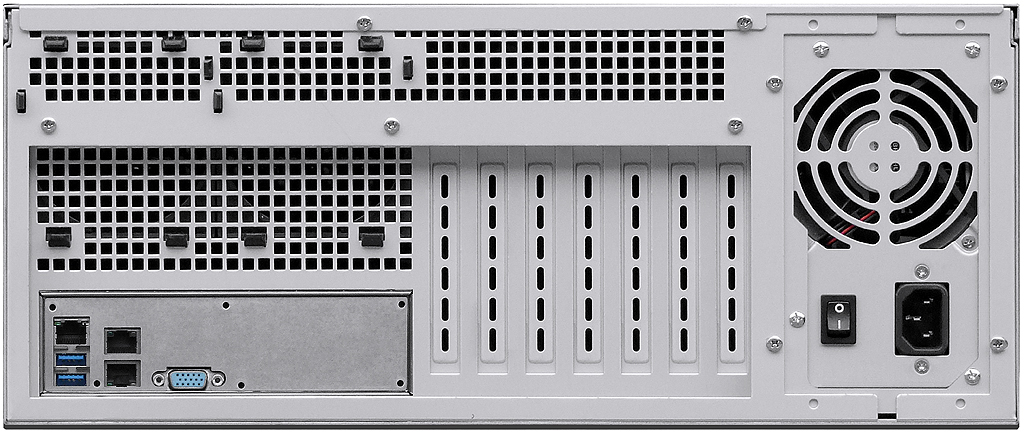

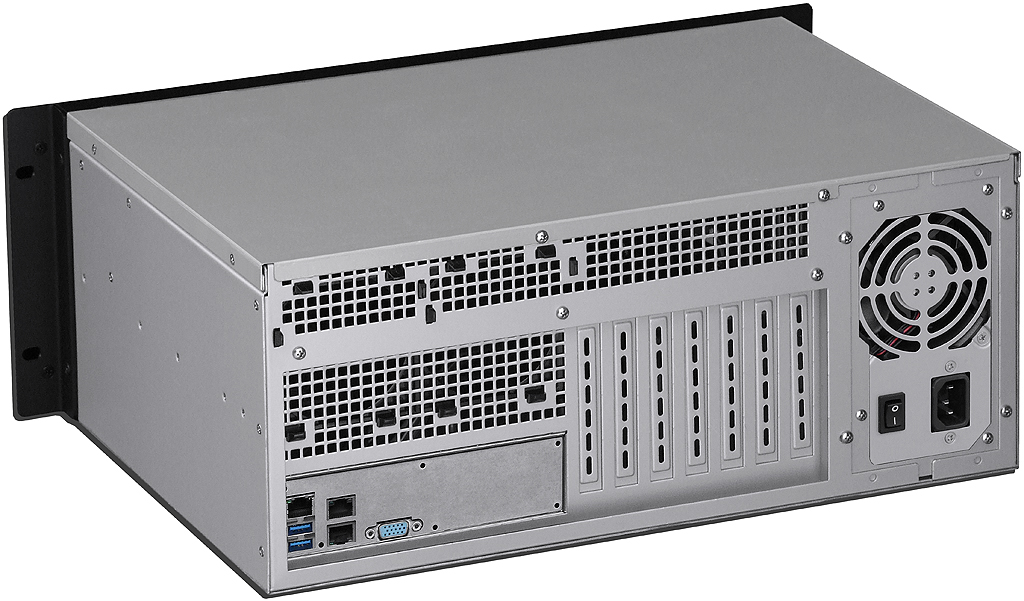

* Build-in two 80mmx25mm ABS screwless fan brackets at rear panel (fans are option)

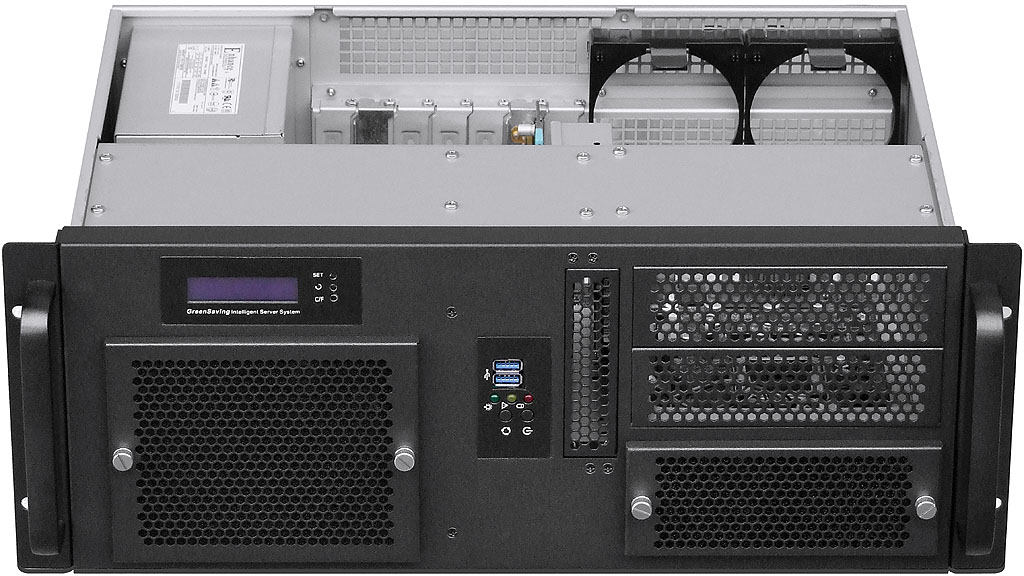

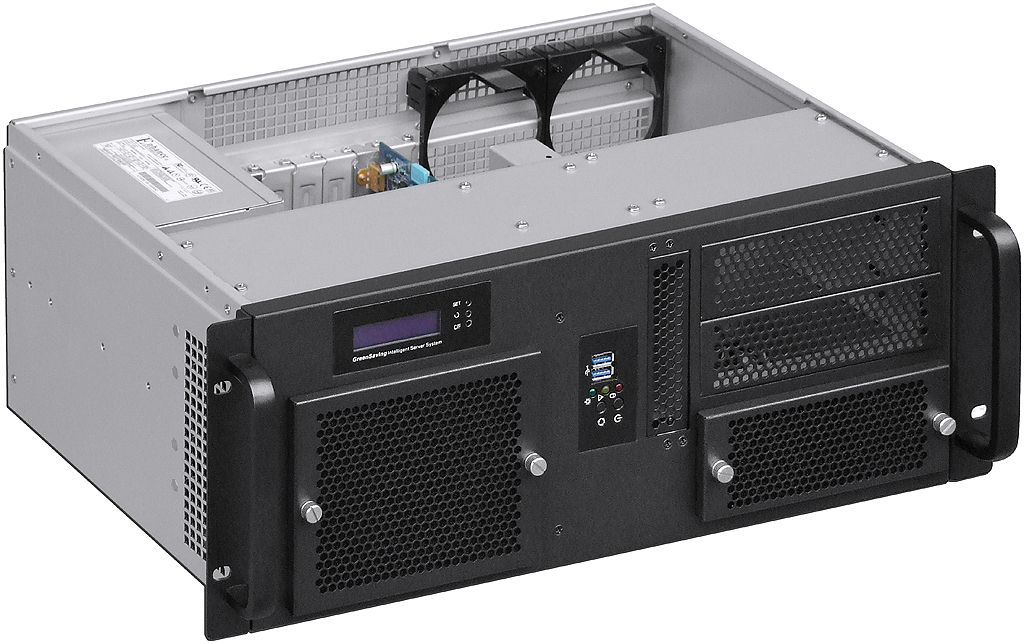

* Build-in removable front cover with air filter and high grade aluminum rackmounting handles at front

* The main sheet metal constructed by 1.2mm~2.0mm SECC thickness mechanism

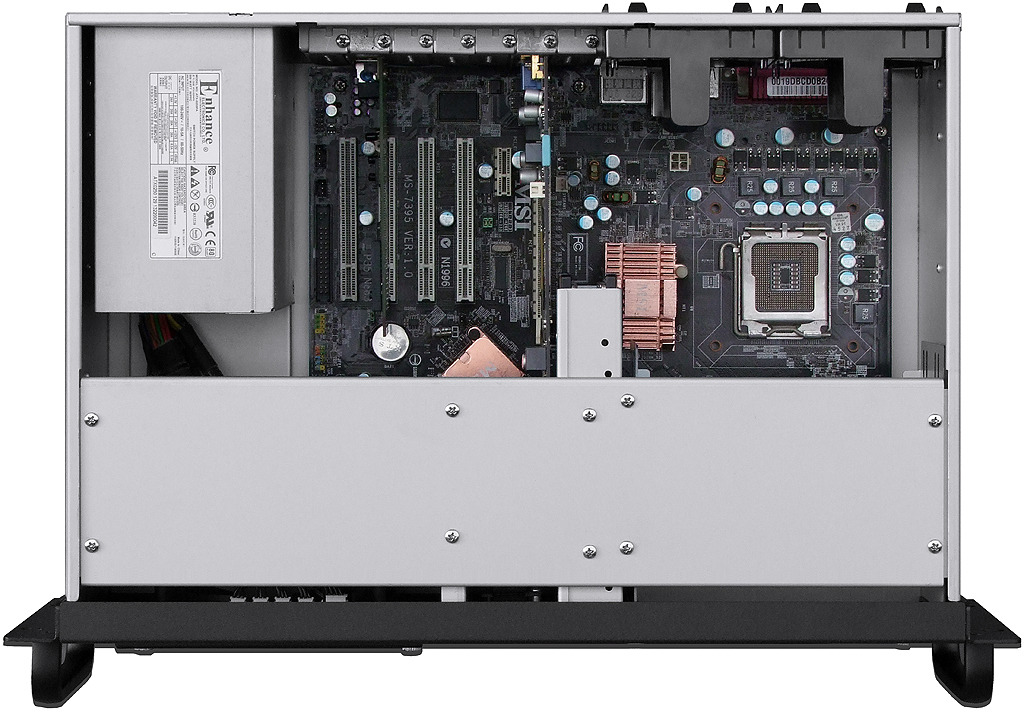

* Compatible MB: ATX (12"x9.6"), MicroATX (9.6"x9.6"), Mini-ITX (6.7"x6.7")

* 8cm or 12cm~14cm fan version standard PS2 PSU compatible (depth at 140mm~200mm)

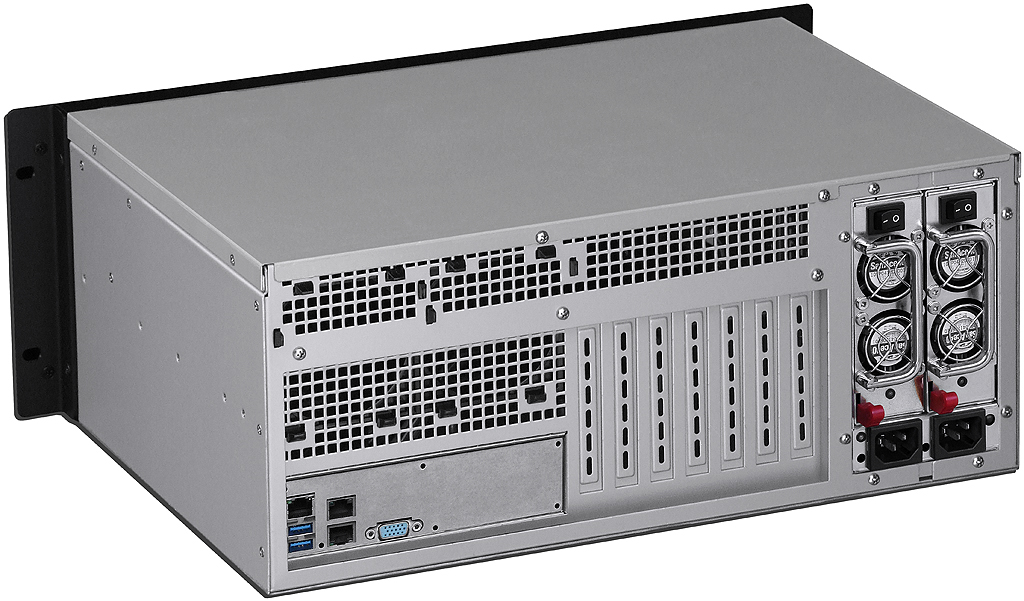

* Support SureStar R4S series 400W~500W PS2 Mini Redundant PS (depth 174mm)
* Support Zippy MRT & MRW series 300W~600W PS2 Mini Redundant PS (depth 185mm)
* Support SureStar R4B series 600W~800W PS2 Mini Redundant PS (depth 199mm)
* Support Zippy MRG series 500W~800W PS2 Mini Redundant PS (depth 200mm)

* Support 7 full height expansion cards at maximum 255mm deep
* Standard paint: scratch-resistant black textured at front side of chassis

* IPC China branded server chassis (with build-in fan) global 3 years warranty

* Chassis dimension: 19" x 4U x 300mm (11.81" deep)

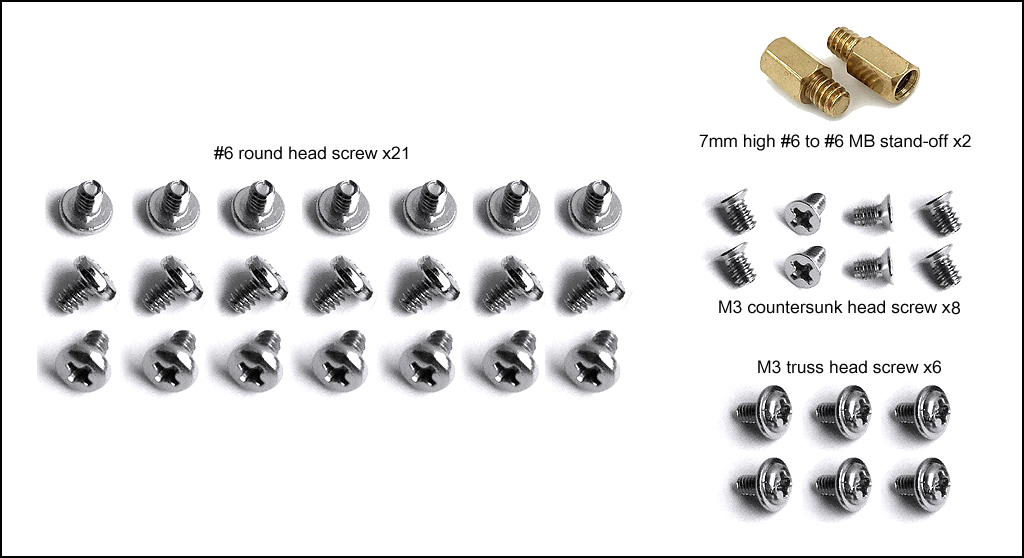

* Accessory: MB stand-off x2, #6 round x21, M3 countersunk x8, M3 truss x6
* Package: NW 7.1KGM, GW 8.4 KGM, 2.12 CUFT (carton size at 55.5cmx41.5cmx26cm)
* Note 1: Suggest to release the rear panel + PS2 PSU first during system integration

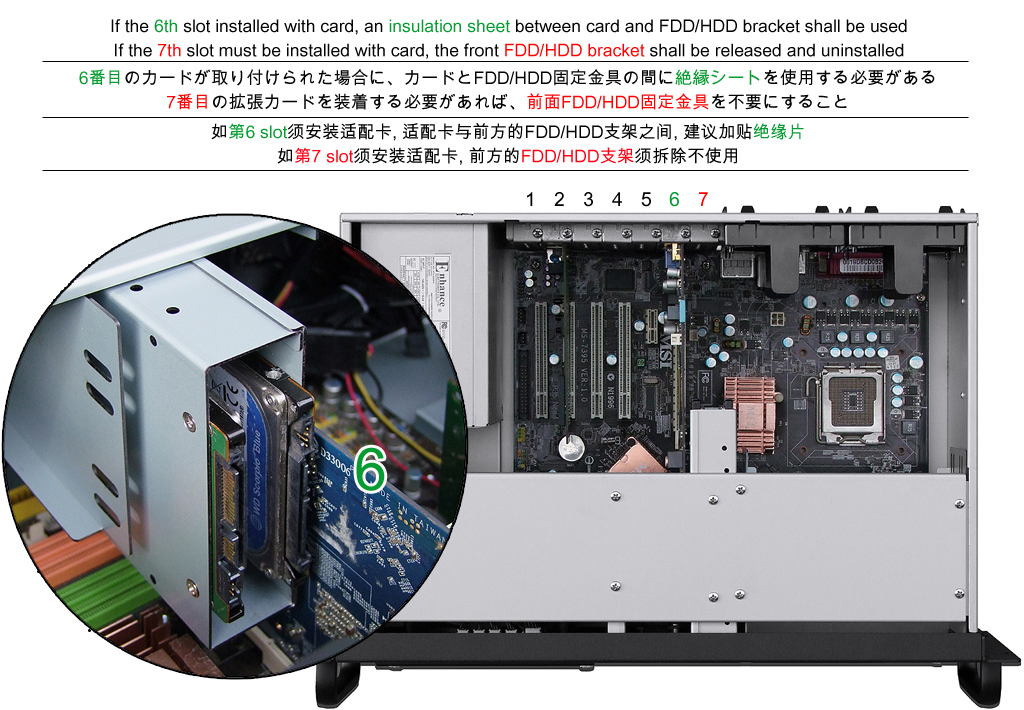

* Note 2: If the 7th slot installed with card, the front FDD/HDD bracket shall be uninstalled
* Note 3: If no any 5.25" ODD installed at front, max. CPU cooler height at 150mm
* Note 4: If one 5.25" ODD installed at front, max. CPU cooler height at 100mm
* Note 5: If all two 5.25" ODD installed at front, max. CPU cooler height at 50mm

* Green Energy saving patent pending areas: China, Taiwan, Thailand, Korea, Japan, USA, UK, EU, Russia
* Patent and Law attorney agency: China GuanDong Kwo Hui Attorney at Law

(Ordering Information)

Model#

 : G4300 4U ATX EnergySaving server chassis (Dimensional drawing  Catalogue)
Option A-1 : PS2 PSU 8cm or 12cm~14cm fan version standard PS2 PSU compatible (depth at 140mm~200mm)
Option A-2 : PS2 RPS SureStar R4S series 400W/500W PS2 Mini Redundant PS (depth at 174mm)
Option A-3 : PS2 RPS Zippy MRT & MRW series 300W~600W PS2 Mini Redundant power supply (depth at 185mm)
Option A-4 : PS2 RPS SureStar R4B series 600W/700W/800W PS2 Mini Redundant PS (depth at 199mm)
Option A-5 : PS2 RPS Zippy MRG series 500W~800W PS2 Mini Redundant power supply (depth at 200mm)
Option B-1 : NJ-600 600mm 2-layer 3-travel universal rail (cabinet internal depth 600~1200mm compliant)
Option B-2 : NJ-2020-18 18-inch full extension slide rail (cabinet internal depth 456.7mm~810mm compliant)
Option B-3 : 1234U-RMK 1234U rear mounting kit
Option C : D80SM-12 YateLoon 80mmx25mm exhaust fan at small 3pinx500mm (part# is 1pcs, can install 2pcs at rear)
Option D-1 : N-12SS 1x3.5" FDD to 1x2.5" HotSwap Cage SATA/SAS 12G
Option D-2 : N-13SS 1x3.5" FDD to 1x2.5" TrayLess HotSwap Cage SATA/SAS 12G
Option D-3 : N-20SS 1x3.5" FDD to 2x2.5" TrayLess HotSwap Cage SATA/SAS 12G
Option D-4 : SS-21TL 1x3.5" FDD to 2x2.5" TrayLess HotSwap Cage SATA/SAS 6G
Option E-1 : 25-35-BK 1x5.25" to 1x3.5" bracket or 1x3.5" HDD space to 2x2.5" SSD/HDD bracket
Option E-2 : N-16TM 1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 12G
Option E-3 : S-16TM 1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 6G
Option E-4 : N-16TL 1x5.25" to 1x3.5" TrayLess HotSwap Cage SATA/SAS 12G
Option E-5 : S-16TL 1x5.25" to 1x3.5" TrayLess HotSwap Cage SATA/SAS 6G
Option E-6 : N-29SS15 1x5.25" to 2x2.5" HotSwap Cage SATA/SAS 12G

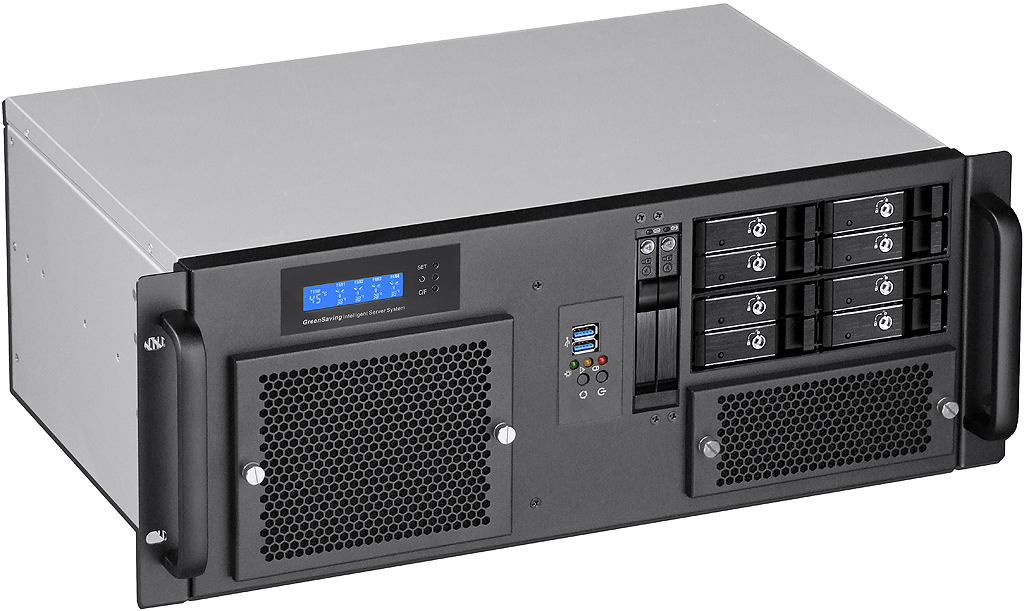

Option E-7 : N-67SS 1x5.25" to 6x2.5" HotSwap Cage SATA/SAS 12G
Option E-8 : SS-88TM 1x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G
Option E-9 : N-49SS-MS 1x5.25" to 4x2.5" HotSwap Cage SFF-8643 12G
Option E-10 : N-49SS 1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 12G
Option E-11 : SS-46TM 1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 6G
Option E-12 : SS-86TM 2x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G
Option E-13 : N-36TM 2x5.25" to 3x3.5" HotSwap Cage SATA/SAS 12G
Option E-14 : S-36TM 2x5.25" to 3x3.5" HotSwap Cage SATA/SAS 6G
Option E-15 : N-36TL 2x5.25" to 3x3.5" TrayLess HotSwap Cage SATA/SAS 12G
Option E-16 : S-36TL 2x5.25" to 3x3.5" TrayLess HotSwap Cage SATA/SAS 6G
Option F-1 : 1MSAS-4SATA-500MM SFF-8087 Mini-SAS (Host) to Four SATA (Device) cable
Option F-2 : SFF-8643-500MM SFF-8643 Mini-SAS HD (Host) to SFF-8643 Mini-SAS HD (Device) cable
Option F-3 : 4SATA-SFF-8643-500MM Four SATA (Host) to SFF-8643 Mini-SAS HD (Device) cable
Option F-4 : SFF-8643-4SATA-500MM SFF-8643 Mini-SAS HD (Host) to Four SATA (Device) cable
Option G-1 : 1U1156A 1U Intel LGA115x Xeon 1230 active CPU cooler (fit & ok when two 5.25" ODD installed)
Option G-2 : 1U2011A-8080 1U Intel LGA2011 LGA2066 active CPU cooler (fit & ok when two 5.25" ODD installed)
Option G-3 : 1U3647A-R73 1U Intel LGA3647 active CPU cooler Narrow (fit & ok when two 5.25" ODD installed)
Option G-4 : 2U2011A-8080 2U Intel LGA2011 LGA2066 active CPU cooler Square (fit & ok when one 5.25" ODD installed)
Option G-5 : 2U2011A-5694 2U Intel LGA2011 active CPU cooler Narrow (fit & ok when one 5.25" ODD installed)
Option G-6 : 2U1150A 2U Intel LGA115x Xeon 1230 active CPU cooler (fit & ok when one 5.25" ODD installed)
Option G-7 : 2U4094A 2U AMD EPYC SP3 LGA4094 active CPU cooler (fit & ok when one 5.25" ODD installed)
Option G-8 : 2U3647A-S82 2U Intel LGA3647 active CPU cooler Square (fit & ok when one 5.25" ODD installed)
Option G-9 : 2U3647A-R82-1 2U Intel LGA3647 active CPU cooler Narrow (fit & ok when one 5.25" ODD installed)
