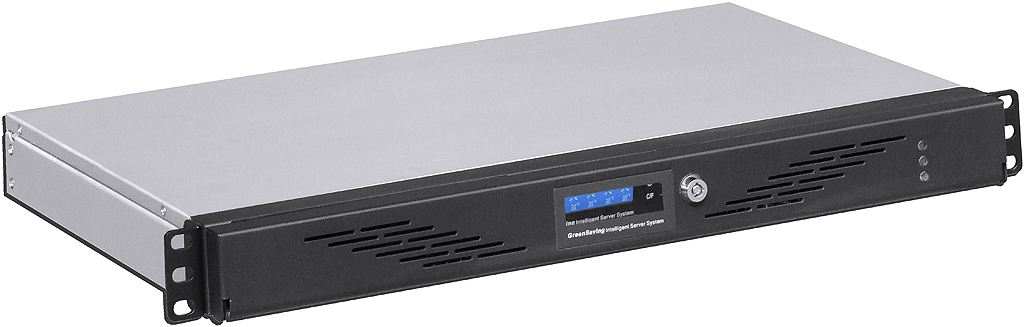

G1250D

1U Mini-ITX EnergySaving server chassis

01) Build in Intelligent EnergySaving function
02) Efficiently fan life time extendable

03) Removable security front door with keylock (option)

04) Equipped two USB 2.0 ports at front bezel
05) I/O front access rackmount ears included

06) 5.25" x 1 or 3.5" x 1 or 2.5" x 2 compatible

07) Two brand new & silent 40mmx20mm fans

08) Support standard 6.7"x6.7" Mini-ITX MB

09) Main sheet metal by 1.0mm~2.0mm thickness

10) High grade Korean SECC (not cheap SGCC)

11) Various 1U I/O shield (option)

12) Various 1U riser card compatible (option)

13) Standard 1U FlexATX 150W~250W psu (option)

14) IPC China branded model global 3 years warranty

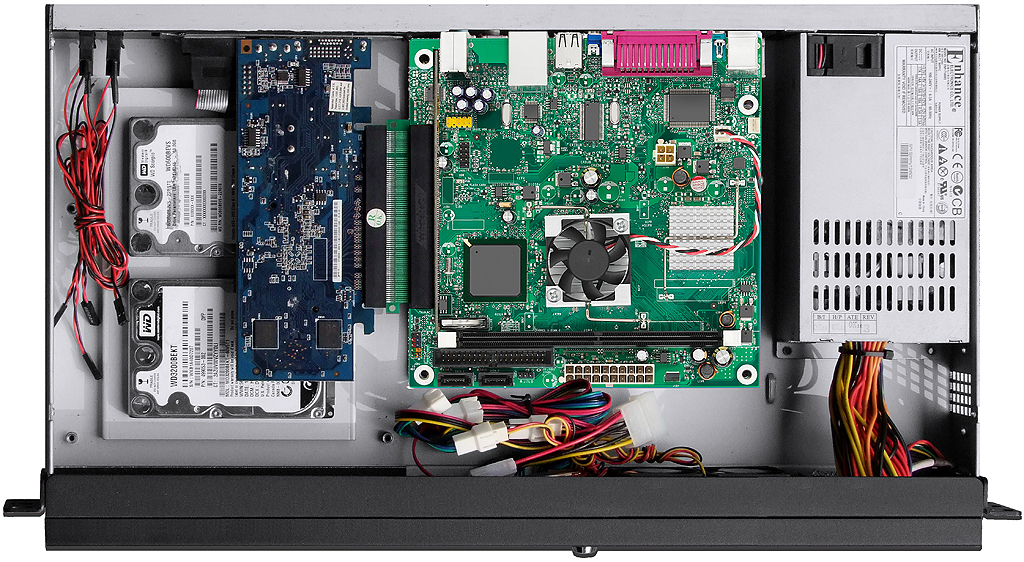

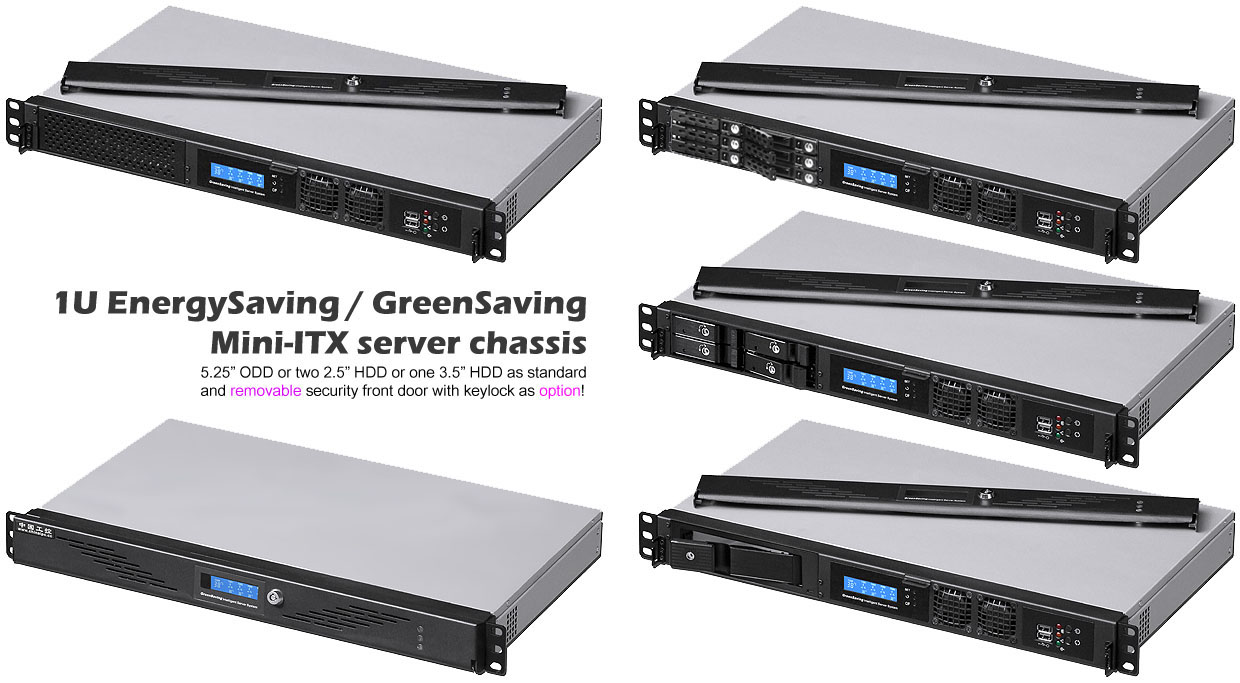

* Drive capacity: 5.25" ODD x 1 or 3.5" HDD x 1 or 2.5" HDD x 2
* Intelligent EnergySaving device's default is all fans automatically activated if system temperature up to 38 degree-C
* Intelligent EnergySaving device's default is 38 degree-C but individual fan can be adjusted between 30~60 degree-C
* Intelligent EnergySaving device supported with four fan fail's indication and warming (stop warning by any button)
* Intelligent EnergySaving device supported with Celsius or Fahrenheit Degree (convertible by C/F button)

* Mechanism made by high & clean grade Korean SECC sheet metal by 1.0mm~2.0mm thickness

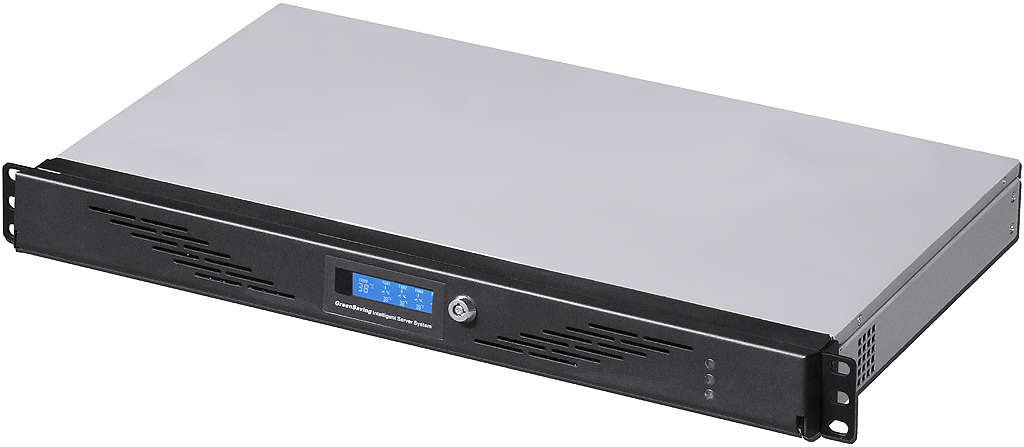

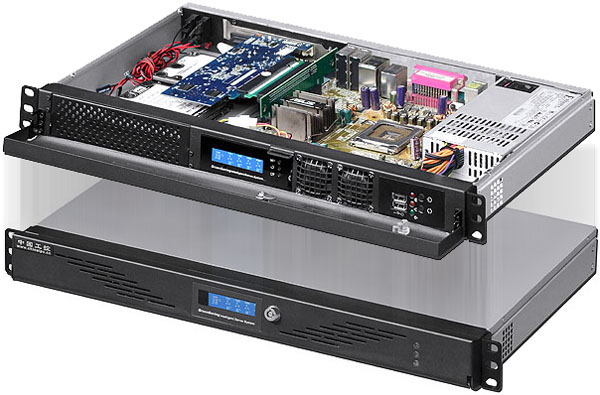

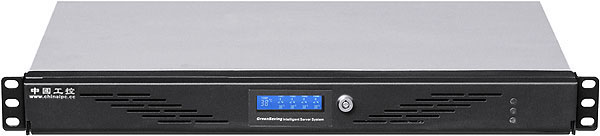

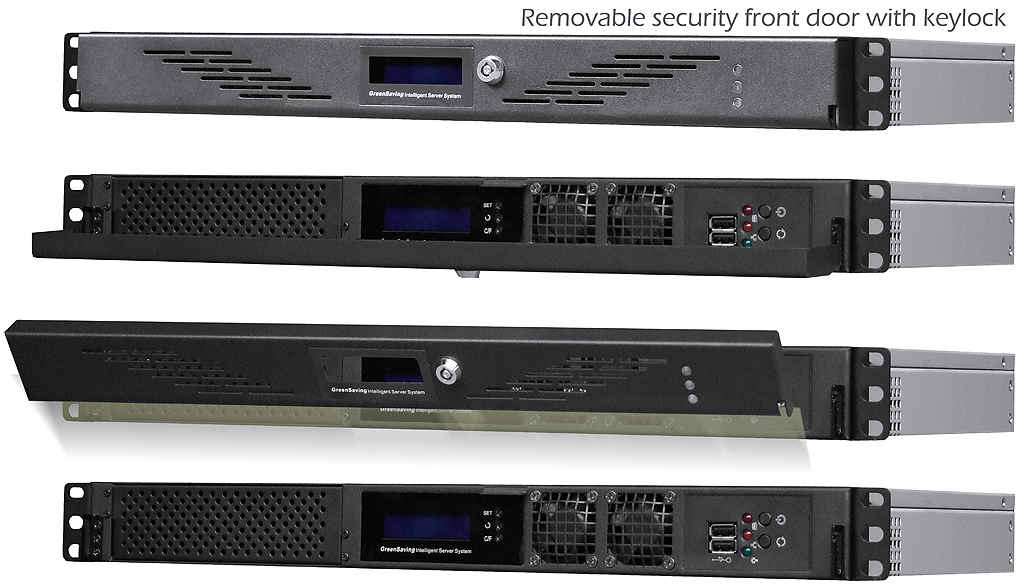

* Removable security front door with keylock (option)

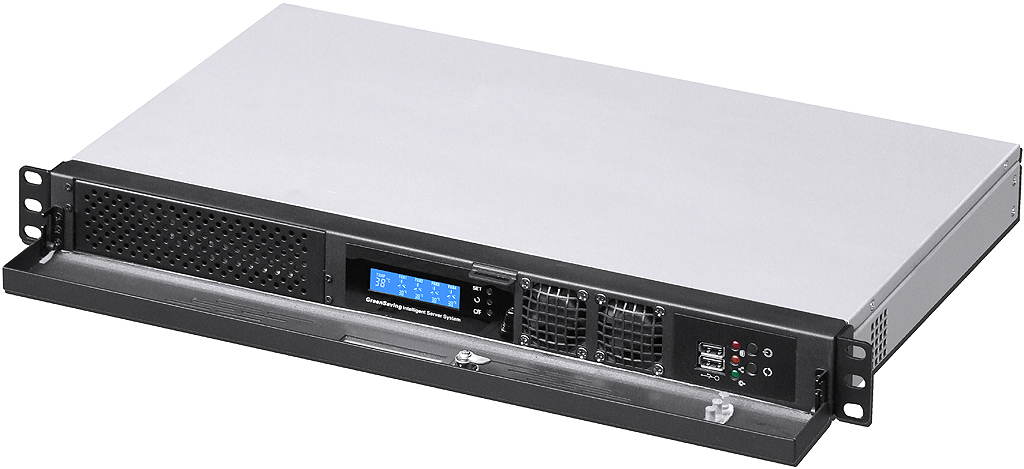

* Equipped two USB 2.0 ports at front bezel

* I/O front access rackmount ears included as standard component

* Two brand new & silent 40mmx20mm intake cooling fans (global warranty 3 years, fan part# D40SM-12C)

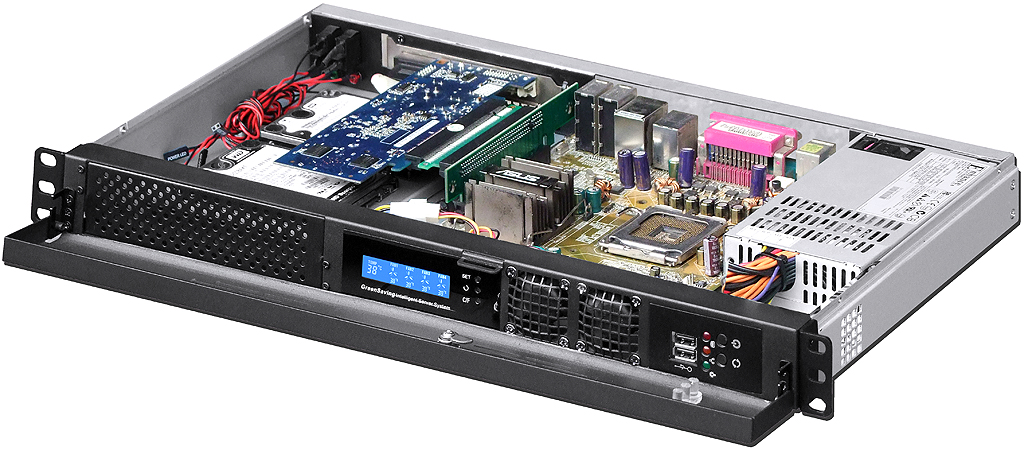

* Support 6.7"x6.7" Mini-ITX MB (170mm x 170mm)
* Various IPC China 1U I/O shield selectable (option, increasing new I/O shields every week)
* Support standard 1U FlexATX 150W~250W power supply (maximum power depth: 150mm)
* Support 1 slot full high expansion card (max. 230mm long)
* Standard paint: black at front
* IPC China branded chassis with build-in fans and all electronics supported by global 3 years warranty
* Chassis dimension: 19" x 1U x 250mm (9.84" deep)

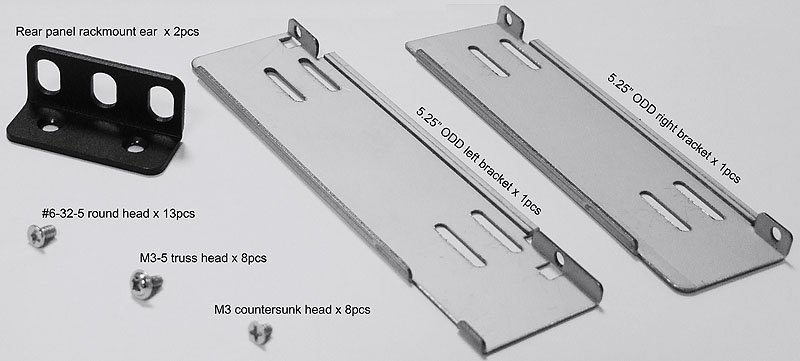

* Accessory pack: I/O front access rackmount ear x 1 pair, #6 countersunk screw x13pcs, M3 round screw x 8pcs,

   M3 countersunk screw x 8pcs, 5.25" left mounting bracket x 1pcs, 5.25" right mounting bracket x 1pcs
* Package: NW 2.5 KG, GW 4.2 KG, 1.04 CUFT (56x37.5x14cm, single box packed)
* Note: if 3.5" HDD or 5.25" device installed, the expansion card function is not available

* Green Energy saving server patent pending areas: China, Taiwan, Thailand, Korea, Japan, USA, UK, EU, Russia

* Patent and Law attorney agency: China GuanDong Kwo Hui Attorney at Law

* Drawing      English catalogue      Chassis quick assembly manual

Ordering information:
Chassis model # & description: G1250D, 1U Mini-ITX EnergySaving server chassis

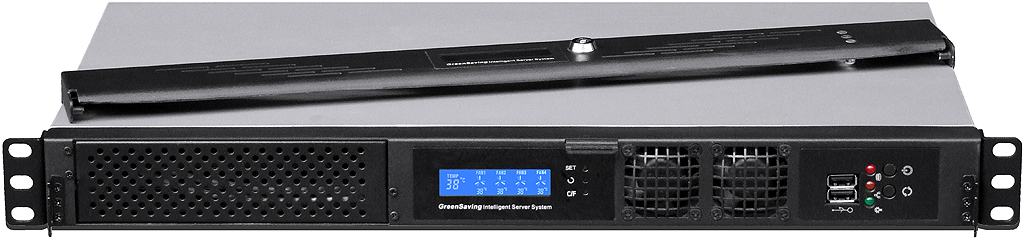

Option A: G1250D-DOOR-ASM, Removable security front door assembly (GW 0.4 KG)

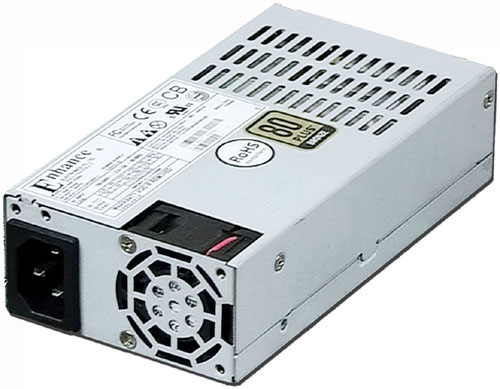

Option B: ENP-7025B, 1U FlexATX 250W power supply with PFC (psu size 81.5 x 40.5 x 150/mm)

Option C: Various 1U riser card (please inform your MB model number in advance)

Option D: Various 1U black I/O shield (please inform your MB model number in advance)

Option E: Various 1U active CPU cooler (please inform your MB model number in advance)

Option F-1: N-16TM, 1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 12G

Option F-2: S-16TM, 1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 6G

Option F-3: N-16TL, 1x5.25" ODD to 1x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option F-4: S-16TL, 1x5.25" ODD to 1x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option F-5: N-29SS15, 1x5.25" to 2x2.5" HotSwap Cage SATA/SAS 12G

Option F-6: N-67SS, 1x5.25" to 6x2.5" HotSwap Cage SATA/SAS 12G

Option F-7: SS-88TM, 1x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G

Option F-8: N-49SS-MS, 1x5.25" to 4x2.5" HotSwap Cage SFF-8643 12G

Option F-9: N-49SS, 1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 12G

Option F-10: SS-46TM, 1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 6G

Option G-1: 1MSAS-4SATA-500MM, SFF-8087 Mini-SAS (Host) to Four SATA (Device) cable

Option G-2: SFF-8643-500MM, SFF-8643 Mini-SAS HD (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option G-3: 4SATA-SFF-8643-500MM, Four SATA (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option G-4: SFF-8643-4SATA-500MM, SFF-8643 Mini-SAS HD (Host) to Four SATA (Device) cable
