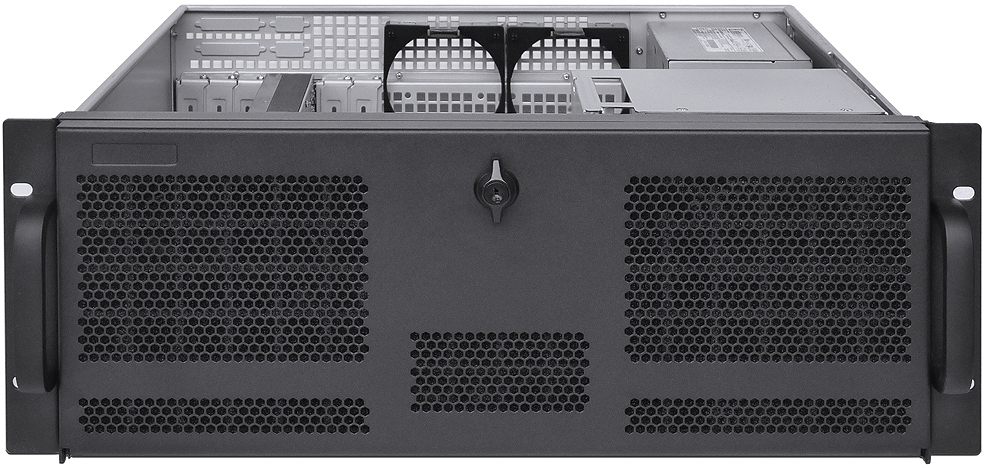

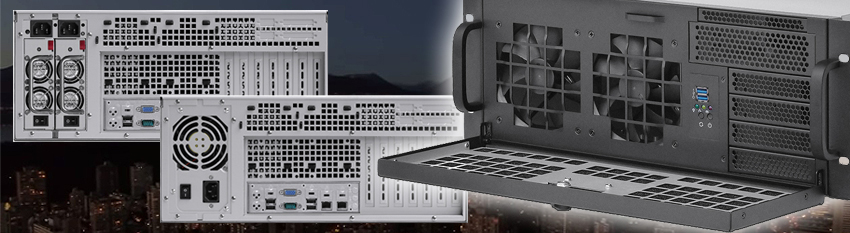

R4380d 4U GPU eATX server chassis

Product announcement or 1st production dated on August 24, 2023, webpage updated on September 06, 2023

































* Drive Space: 1 x slim ODD, 1 x 5.25" ODD, 4 x 3.5" FDD or HDD bay

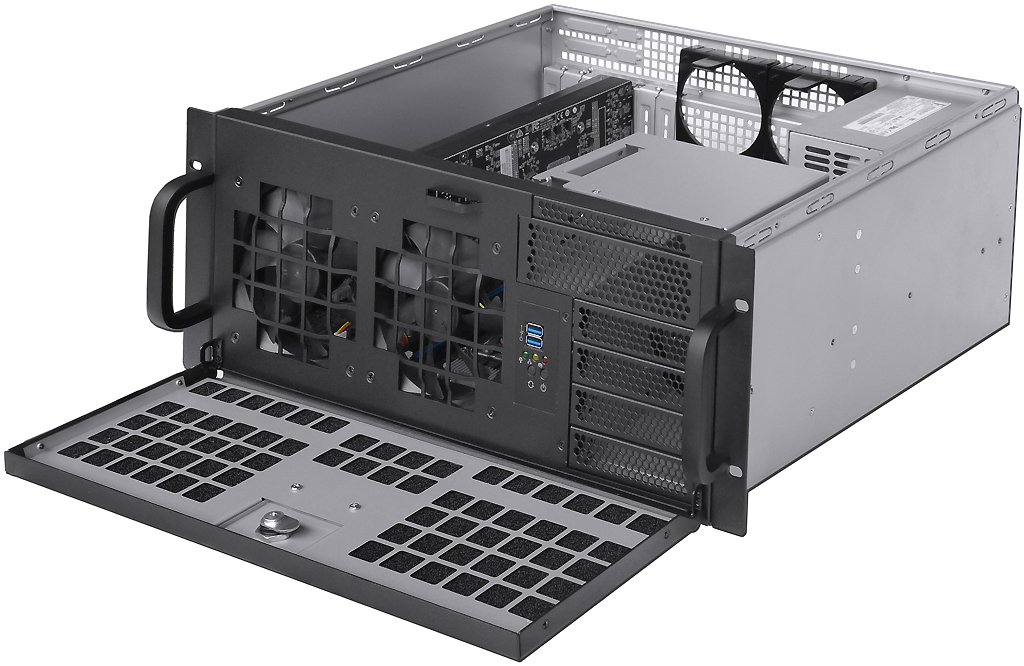

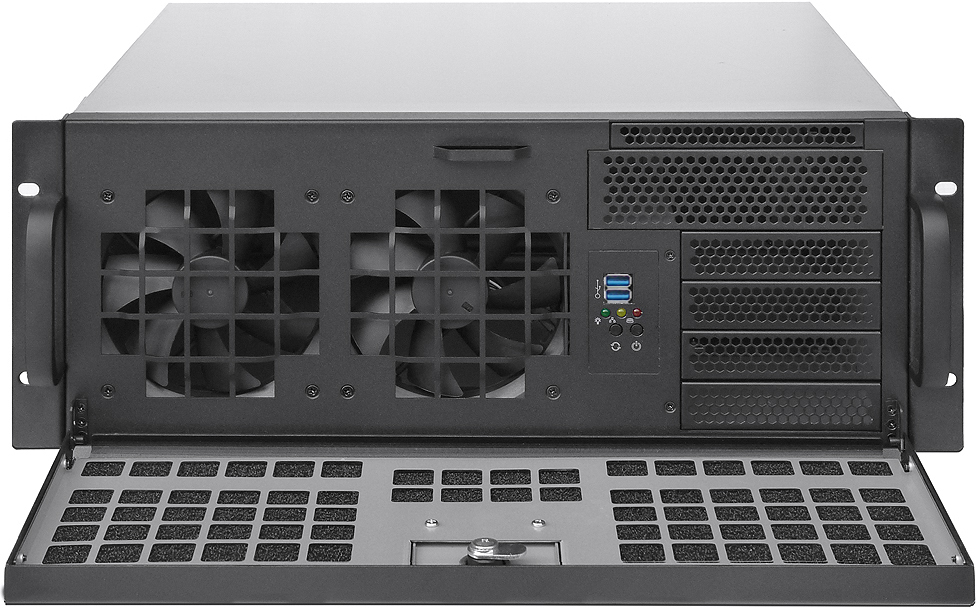

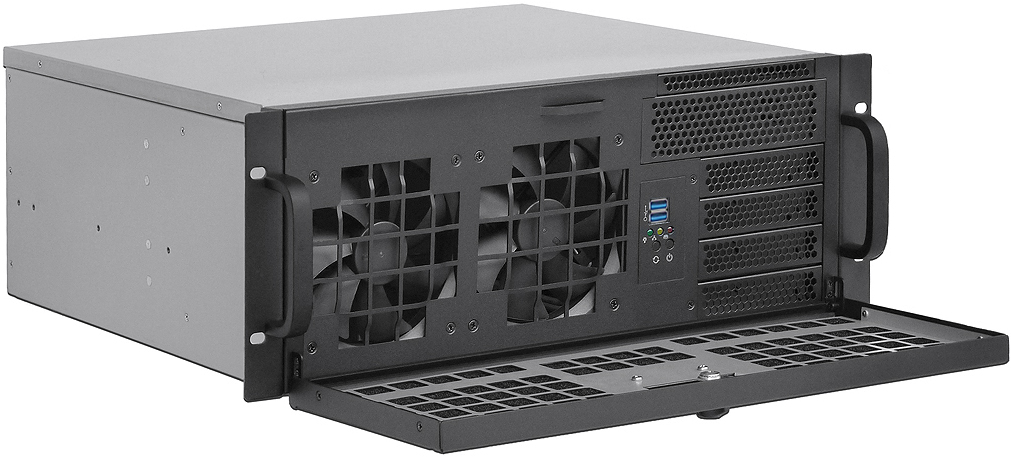

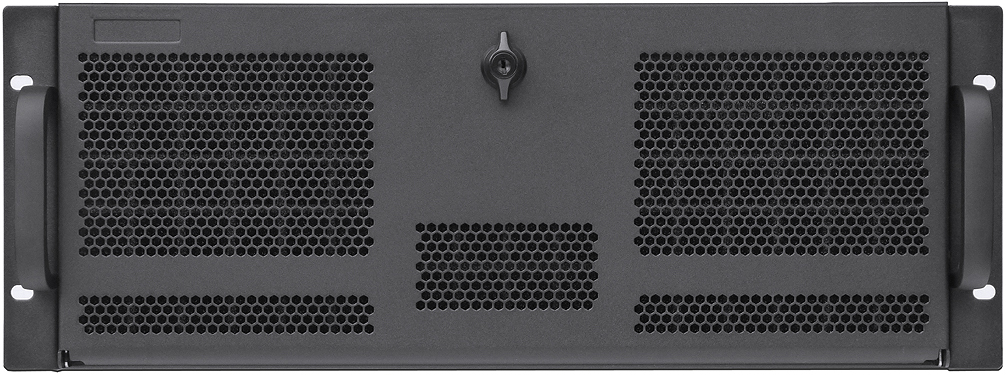

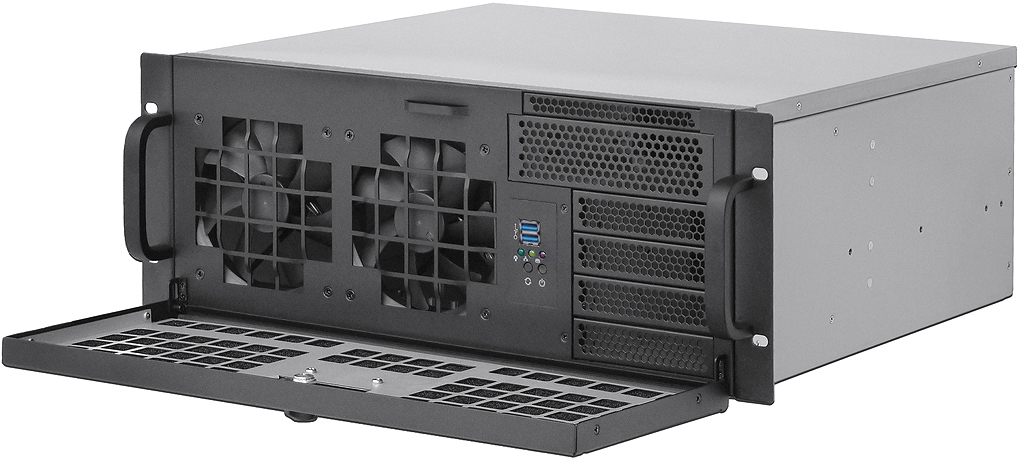

* Build-in security butterfly key-lock front door with air dust filter
* High strength aluminum alloy die casting handles ensure stability during rackmounting
* The main sheet metal constructed by 1.2mm~2.0mm SECC thickness mechanism

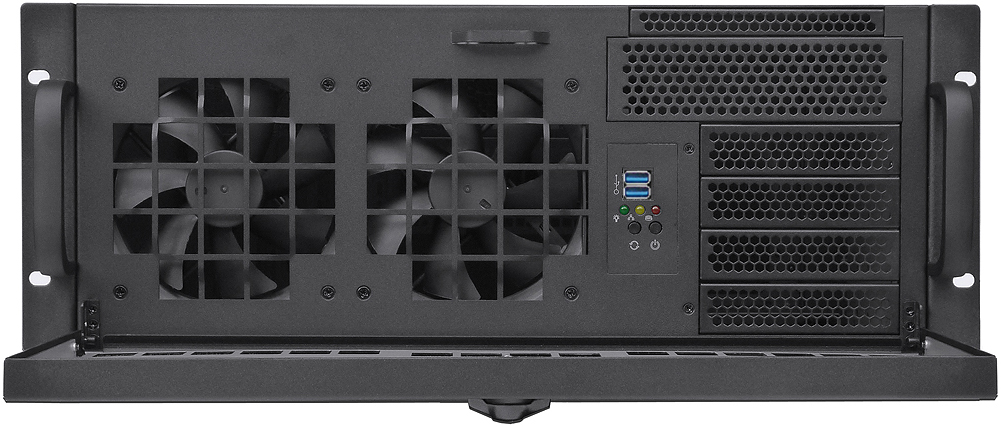

* Build-in two USB 3.0 ports and LAN/HDD/Power LED at front bezel (PCB part# USB3-i700)

* Build-in two brand new 120mmx25mm intake fans at front (fan part# D12SM-12)

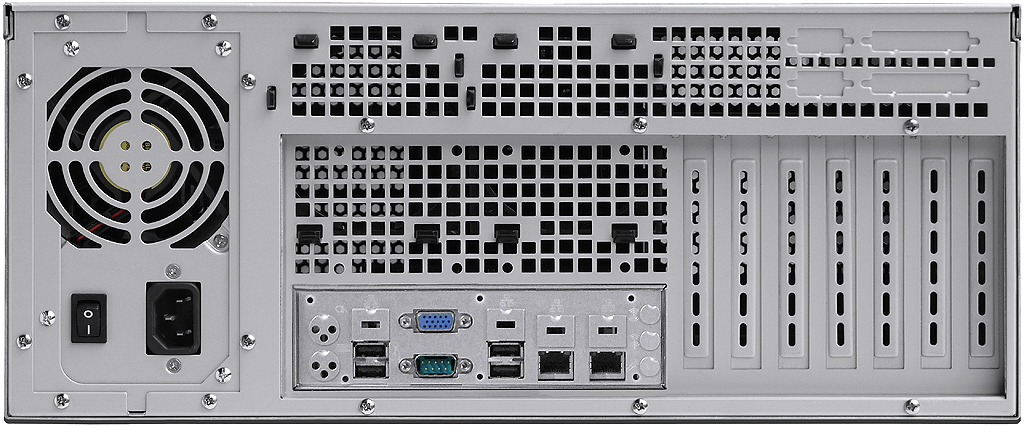

* Build-in two 80mmx25mm ABS screwless fan brackets at rear panel (fans are option)

* 8cm or 12cm~14cm fan version standard PS2 PSU compatible (depth at 140mm~200mm)

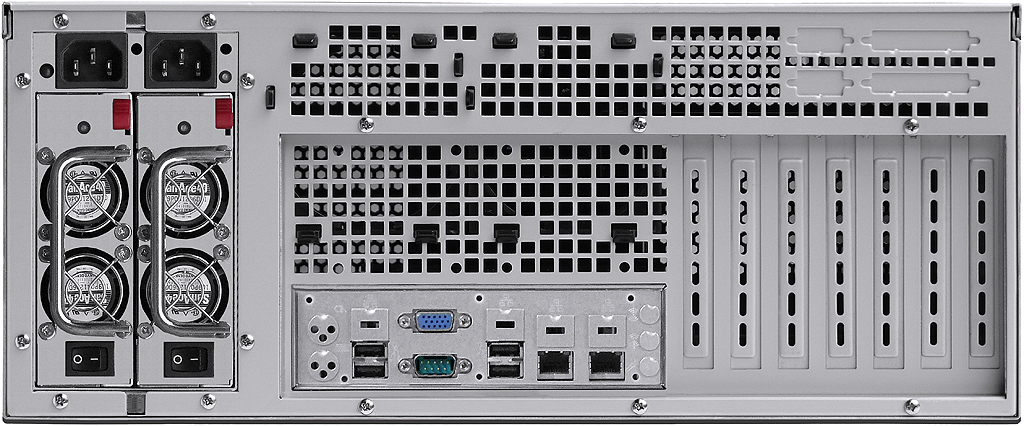

* Support SureStar R4S series 400W~500W PS2 Mini Redundant PS (depth 174mm)
* Support Zippy MRT & MRW series PS2 Mini Redundant PS (depth 185mm)
* Support SureStar R4B series 600W~800W PS2 Mini Redundant PS (depth 199mm)
* Support Zippy MRG series PS2 Mini Redundant PS (depth 200mm)

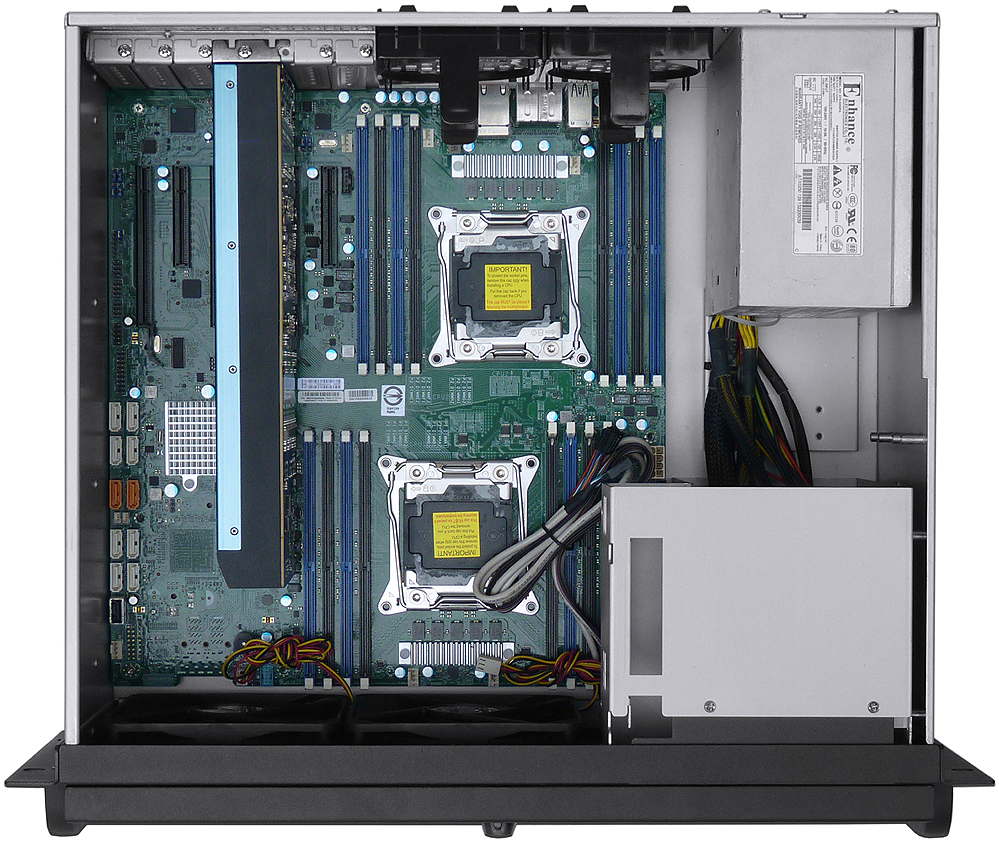

* Compatible MB: EEB 12"×13", CEB 12"×10.5", ATX 12"x9.6", MicroATX 9.6"x9.6", Mini-ITX 6.7"x6.7"
* Support 7-slot full height cards max. 330mm deep (when standard 120mmx25mm fans installed at front)

* Support 7-slot full height cards max. 317mm deep (if optional 120mmx38mm fans installed at front)
* Standard paint: scratch-resistant black textured at front side of chassis
* IPC China chassis with all build-in electronics in global 3 years warranty
* Chassis dimension: 19" x 4U x 380mm (14.96" deep)

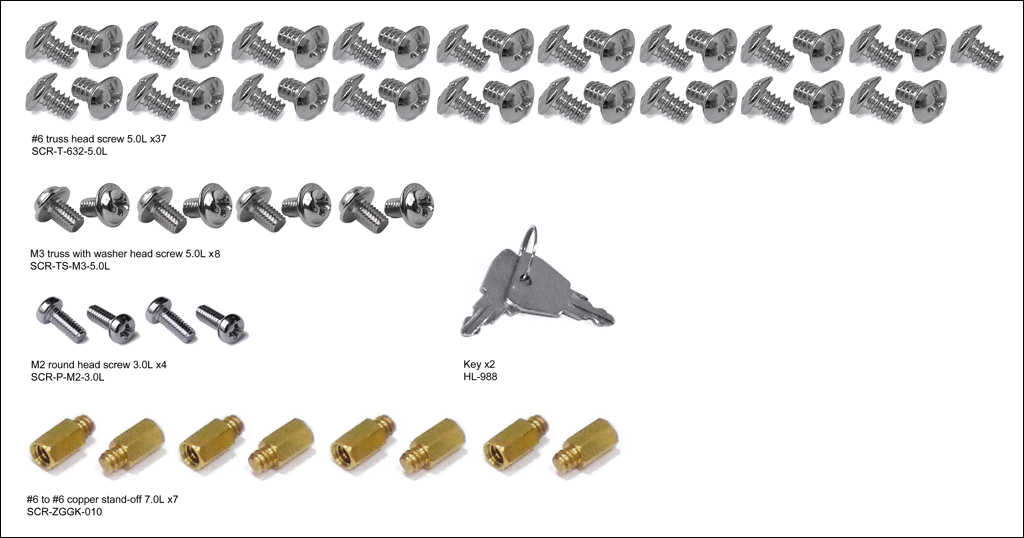

* Accessory: #6 round x37, M3 truss x8, M2 round x4, MB stand-off x7, key x2
* Package: NW 8.0 KGM, GW 10 KGM, 2.78 CUFT (carton size at 56x53x26.5cm)



   Dimensional drawing  Catalogue  Chassis quick manual

(Ordering Information)

Model# : R4380d 4U GPU eATX server chassis
Option A-1 : PS2 PSU 8cm or 12cm~14cm fan version standard PS2 PSU compatible (depth at 140mm~200mm)
Option A-2 : PS2 RPS SureStar R4S series 400W/500W PS2 Mini Redundant PS (depth at 174mm)
Option A-3 : PS2 RPS Zippy MRT & MRW series PS2 Mini Redundant power supply (depth at 185mm)
Option A-4 : PS2 RPS SureStar R4B series 600W/700W/800W PS2 Mini Redundant PS (depth at 199mm)
Option A-5 : PS2 RPS Zippy MRG series PS2 Mini Redundant power supply (depth at 200mm)
Option B-1 : NJ-600 600mm 2-layer 3-travel universal rail (cabinet internal depth 600~1200mm compliant)
Option B-2 : NJ-2020-18 18-inch full extension slide rail (cabinet internal depth 456.7mm~810mm compliant)
Option B-3 : 1234U-RMK 1234U rear mounting kit
Option C : D80SM-12 YateLoon 80mmx25mm exhaust fan at small 3pinx500mm (part# is 1pcs, can install 2pcs at rear)
Option D-1 : GO3-102M2-fr 1x3.5" FDD to 2 x M.2 SSD Removable Cage M.2 NVMe 64G
Option D-2 : N-19NVMe19 1x3.5" FDD to 1x2.5" SSD Removable Cage U.2 NVMe 32G
Option D-3 : N-12SS 1x3.5" FDD to 1x2.5" HotSwap Cage SATA/SAS 12G
Option D-4 : N-13SS 1x3.5" FDD to 1x2.5" TrayLess HotSwap Cage SATA/SAS 12G
Option D-5 : SS-21TL 1x3.5" FDD to 2x2.5" TrayLess HotSwap Cage SATA/SAS 12G
Option E-1 : 25-35-BK 1x5.25" to 1x3.5" bracket or 1x3.5" HDD space to 2x2.5" SSD bracket
Option E-2 : N-16TM 1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 12G
Option E-3 : N-16TL 1x5.25" to 1x3.5" TrayLess HotSwap Cage SATA/SAS 12G
Option E-4 : N-29NVMe15U 1x5.25" to 2xUSB3 2x2.5" SSD Removable Cage U.2 NVMe 32G
Option E-5 : N-29NVMe15 1x5.25" to 2x2.5" SSD Removable Cage U.2 NVMe 32G
Option E-6 : N-29SS15 1x5.25" to 2x2.5" HotSwap Cage SATA/SAS 12G
Option E-7 : N-67SS 1x5.25" to 6x2.5" HotSwap Cage SATA/SAS 12G
Option E-8 : SS-88TM 1x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G
Option E-9 : N-49NVMe 1x5.25" to 4x2.5" SSD Removable Cage U.2 NVMe 32G
Option E-10 : N-49SS-MS 1x5.25" to 4x2.5" HotSwap Cage SFF-8643 12G
Option E-11 : N-49SS 1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 12G
Option E-12 : SS-46TM 1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 6G
Option F-1 : 1MSAS-4SATA-500MM SFF-8087 Mini-SAS (Host) to Four SATA (Device) cable
Option F-2 : SFF-8643-500MM SFF-8643 Mini-SAS HD (Host) to SFF-8643 Mini-SAS HD (Device) cable
Option F-3 : 4SATA-SFF-8643-500MM Four SATA (Host) to SFF-8643 Mini-SAS HD (Device) cable
Option F-4 : SFF-8643-4SATA-500MM SFF-8643 Mini-SAS HD (Host) to Four SATA (Device) cable
Option G-1 : 2U2011A-8080 2U Intel LGA2011 LGA2066 active CPU cooler Square
Option G-2 : 2U2011A-5694 2U Intel LGA2011 active CPU cooler Narrow
Option G-3 : 2U115XA 2U Intel LGA115x Xeon 1230 active CPU cooler
Option G-4 : 2U4094A-SP3 2U AMD EPYC LGA4094 active CPU cooler SP3
Option G-5 : 2U1331A-AM4 2U AMD LGA1331 active CPU cooler AM4 AM5
Option G-6 : 2U3647A-S82 2U Intel LGA3647 active CPU cooler Square
Option G-7 : 2U3647A-R82-1 2U Intel LGA3647 active CPU cooler Narrow
Option G-8 : 2U4189A-M82 2U Intel LGA4189 active CPU cooler
Option G-9 : 2U1700A-V15 2U Intel LGA1700 active CPU cooler
