Hot Swap Mobile Rack Module
Webpage updated on August 22, 2024
|
GP-101M2-Br
M.2 NVMe 64G |
1 Full/Low profile X4 slot to 1
x M.2 SSD Removable Cage
M.2 NVMe 64G
* 1 Full/Low profile slot space to
one M.2 NVMe SSD
*
Support PCIe 3.0/4.0 x4 NVMe
32Gbps/64Gbps, M.2 NVMe SSD length 2230/42/60/80mm
compatible *
Motherboard Interface: PCIe 3.0 and PCIe 4.0, PCIe 4X, 8X, 16X slot
compatible
* Entire tray and mounting bracket mechanism proceeded by
high grade brushed stainless
* Swappable tray and spring design with smooth travel while sliding in
and out
* Patented anti-vibration spring design, SSD can be mounted
from bottom of hotswap HDD tray * LED display: Green
as power on, flash Orange as SSD accessing, no display if
M.2 SSD not inserted
* Security via triangle keylock
* Accessory: M3 flat screw x1, key x2, low profile mounting
bracket x1
* Global 3 years warranty or swappable cycle up to
50,000 times guaranteed
* Product dimension of Full height slot: 155.9(L) x 120.8(W) x 19(H)mm
* Product dimension of Low profile slot: 155.9(L) x 84(W) x 19(H)mm
* Package: N.W. 0.15 KGM, G.W. 0.23 KGM, CUFT 0.05 (230mm x
150mm x 45mm, single box packed)
*
left
right
right
right
front
rear
top
LPF
accessory
drawing
datasheet |
|
|
GP-102M2-Br
M.2 NVMe 64G |
1 Full X16 slot to
2 x M.2 SSD
Removable Cage
M.2 NVMe 64G
* 1 Full height slot space to two M.2 NVMe SSD (SSD
bifurcation / recognition should be setting from BIOS)
* Support PCIe 3.0/4.0 x16 NVMe
32Gbps/64Gbps, M.2 NVMe SSD length 2230/42/60/80mm
compatible
* Motherboard Interface: PCIe 3.0 and PCIe 4.0, PCIe 16X slot
compatible
* Two 40mmx10mm cooling blower fans as standard
* Tray proceeded by high grade brushed stainless and
aluminum
* Swappable tray and spring design with smooth travel while sliding in
and out
* Patented anti-vibration spring design, SSD can be mounted
from bottom of hotswap HDD tray
* LED display: Green as power on, flash Orange as SSD accessing, no display if
M.2 SSD not inserted
* Security via triangle keylock
* Accessory: M3 flat screw x2, key x2
* Global 3 years warranty or swappable cycle up to 50,000
times guaranteed
* Product dimension: 175(L) x 120.8(W) x
22(H)mm
* Package: N.W. 0.39 KGM, G.W. 0.47 KGM, CUFT 0.05 (230mm x
150mm x 45mm, single box packed)
*
left
right
front
rear
rear
top
accessory
drawing |
|
|
N-17SS-P
SATA/SAS 12G |
1
Full Height PCIe expansion slot to 1x2.5"
HotSwap Cage SATA/SAS
12G * 1 Full Height slot to one 2.5" SSD/HDD hotswap
mobile rack (if RAID supported, extra RAID card required)
* 2.5" SATA1/2/3/3.2/3.3 & SAS1/2/3 SAS 12G or SAS/SATA 6G
SSD with max. 9.5mm height compatible
* Entire tray mechanism by high grade stainless with
scratch-resistant black textured at front
* Hotswap tray design with smooth travel while sliding in
and out
* Patented anti-vibration spring design, HDD can be mounted
from bottom of hotswap HDD tray
* LED display: Left as Green power light, Right as Orange
HDD access light
* Security with cross-check function via triangle keylock &
switch
* Rear interface: 1x SATA 7pin data transfer port, 1x SATA
15pin psu input port
* Accessory: M3 flat screw x10, key x2
* Global 3 years warranty or HDD hot swap cycle up to 50,000
times guaranteed
* Product dimension: 148.7(L) x 120.5(W) x 21.5(H)mm
* Package: N.W. 0.18 KGM, G.W. 0.21 KGM, CUFT 0.048 (195mm x
151mm x 46mm, single box packed)
*
left
right
front
rear
top
accessory |
|
|
|

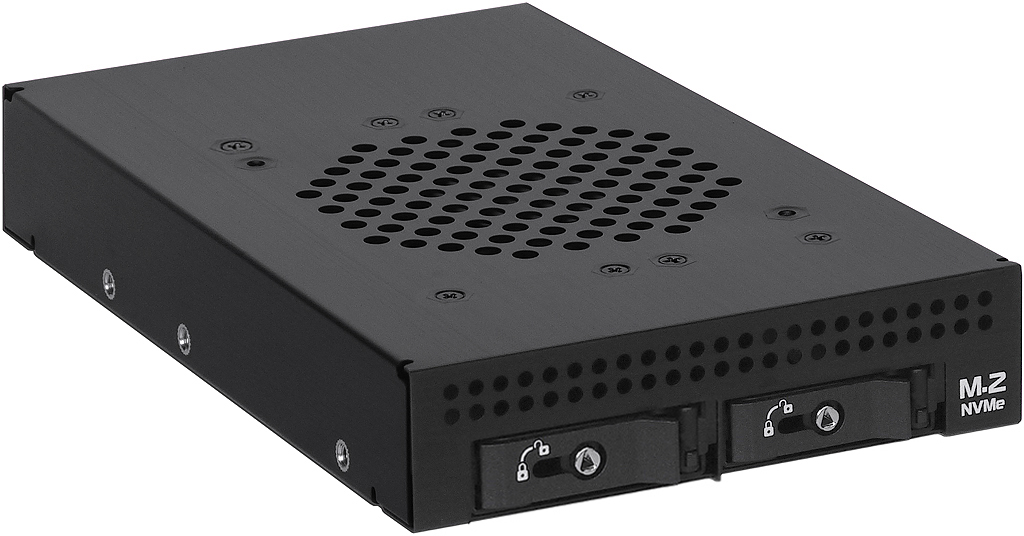

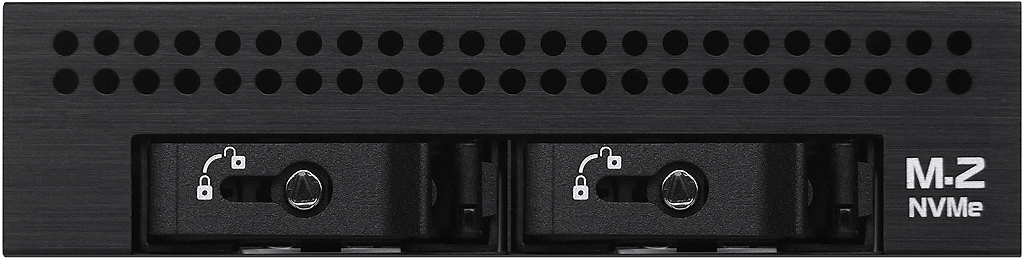

GO3-102M2-fr
M.2 NVMe 64G |
1x3.5" FDD to 2
x M.2 SSD Removable Cage
M.2 NVMe 64G

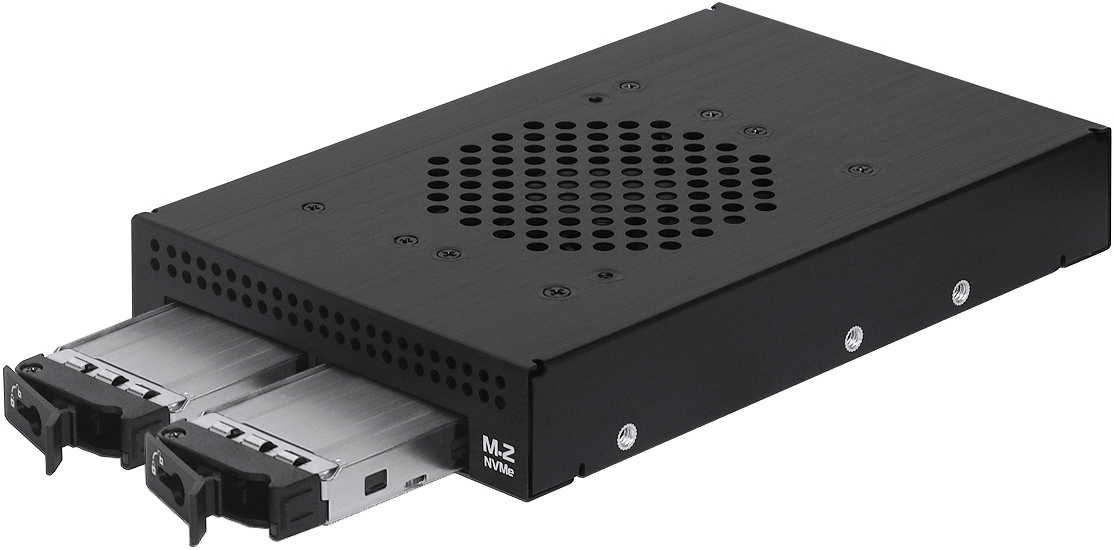

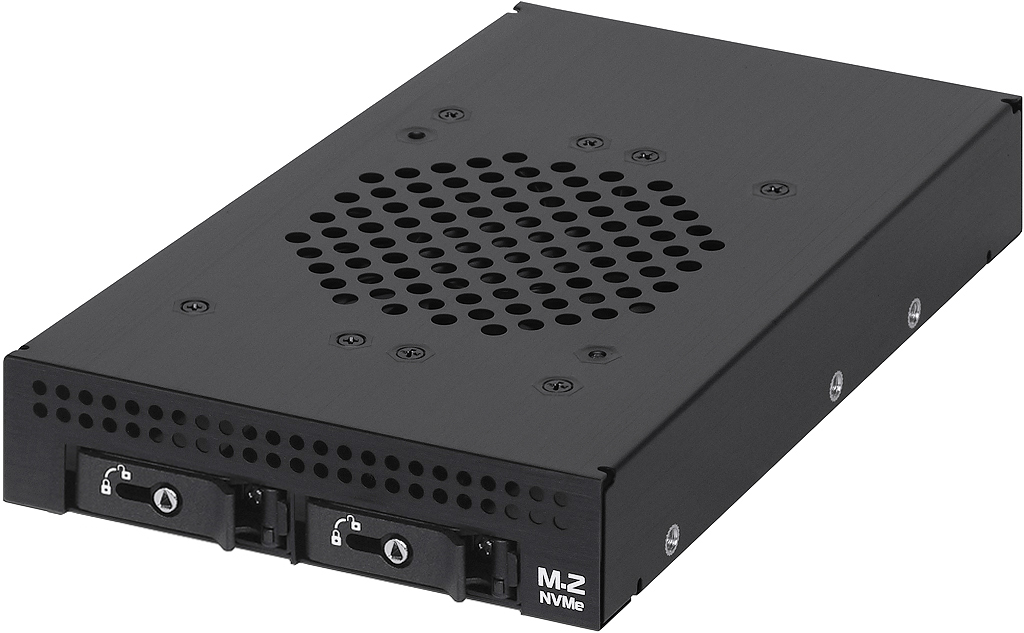

* 1 3.5" FDD space to 2 M.2 NVMe SSD
(some SSD have no hotswap, NVMe control card may required)
* Support M.2 NVMe 32Gbps/64Gbps, M.2 NVMe SSD
length 2230/42/60/80mm compatible
* Outer frame: high-grade black anodized Aluminum with glossy brushed
anti-scratch finish on the surface
* Inner frame: SUS304 stainless trays, upper & lower shock-absorb
springs, aluminum handles with security lock
* Cooling: outer made of aluminum, inner trays made of stainless
with aluminum heatsinks & thermal pads
* Tool-free patent: required no tool to insert SSD, clamp-fixed aluminum heatsink by pressing down/screw fix
* 2 HDD LED, each LED with 2 colors, green for power on when HDD
inserted, orange while HDD is accessing
* Backplane: Slim SAS x8 connector at back side of inner frame connected/plugged with the swappable tray

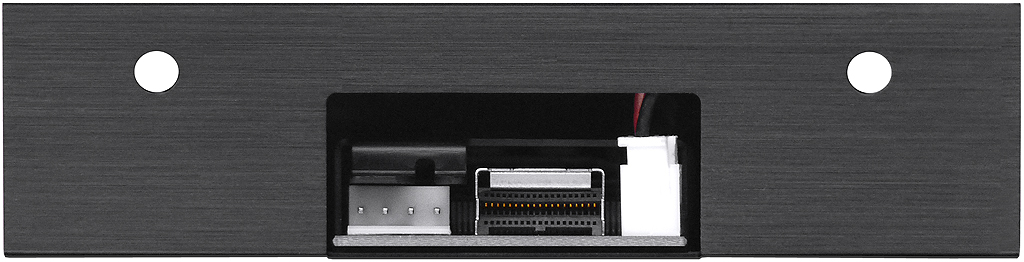

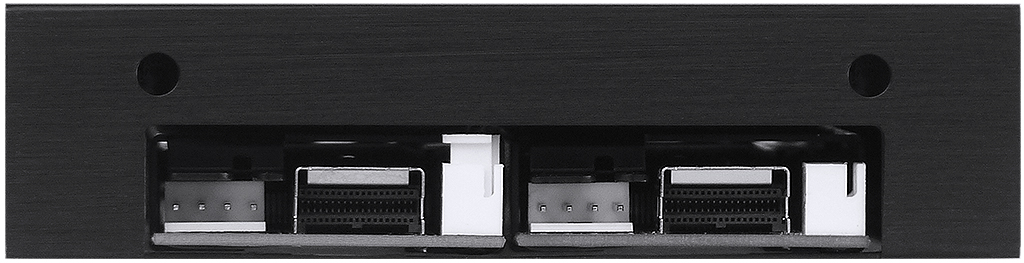

* Rear interface: two OCuLink (SFF-8612) ports, two 4pin power
inputs (SATA 15pin power adapter included),
one 2pin connected to built-in high-speed 6cm cooling fan,
another 2pin connector as reserved backup
* SFF-9402 transmission definition between the rear connectors
(Device) and the system control (Host)

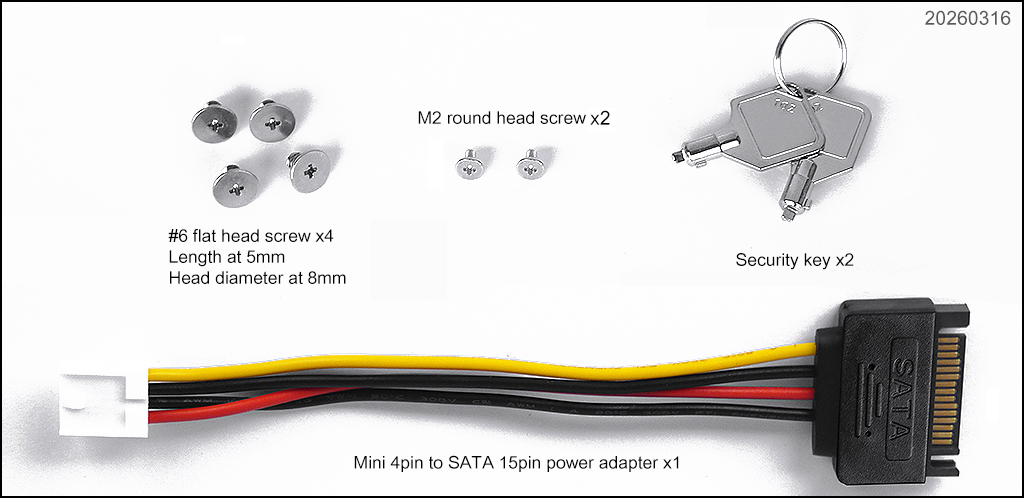

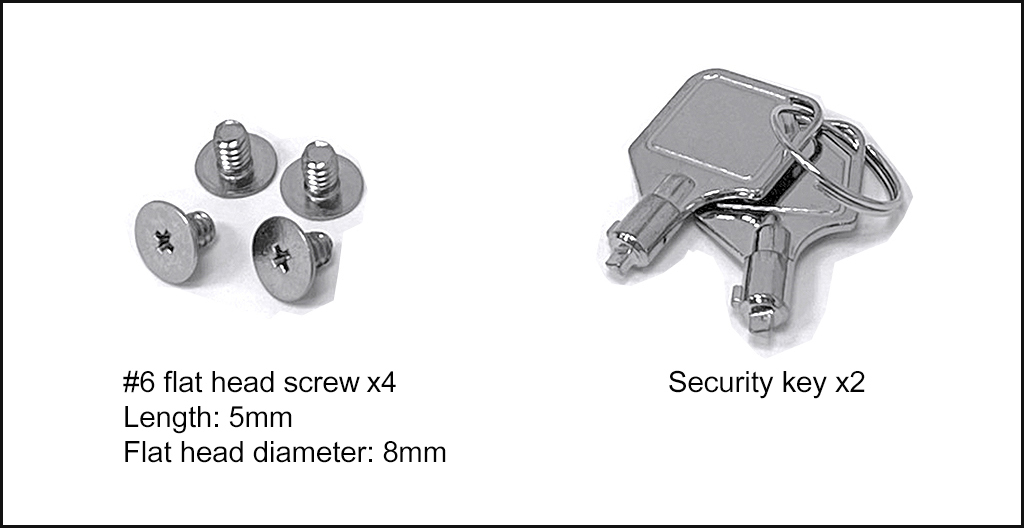

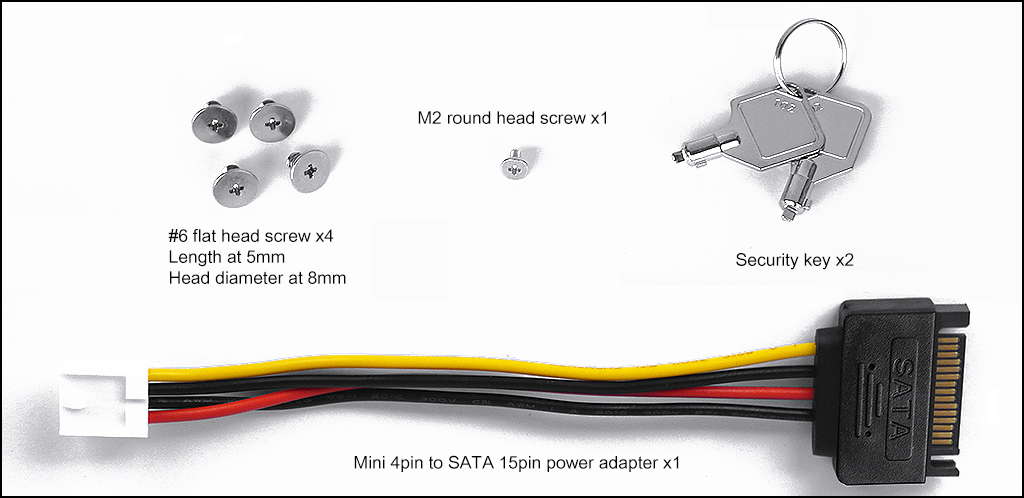

* Accessory: M2 flat head x2, #6 flat head x4, security key x2, 4pin
to SATA 15pin power adapter cable x1
* Global 3 years warranty or HDD swap cycle up to 50,000 times
guaranteed
* Product dimension: 159(L) x 101.5(W) x 25.4(H)mm
* Package: N.W. 0.33 KGM, G.W. 0.41 KGM, CUFT 0.055 (228mm x 153mm x
45mm, single box packed)
*
left
left1
right
right1
front
rear
top
accessory |
|
|
N-19NVMe19
U.2
NVMe 32G |
1x3.5" FDD to 1x2.5"
SSD Removable Cage U.2
NVMe 32G
* 1x3.5" FDD space to 1x2.5" NVMe U.2 SSD (some
NVMe cards support hotswap but some U.2 SSD don't)
* 2.5" U.2 NVMe (32Gbps) SSD x1, with maximum height at 15mm
compatible
* Max. 32Gbps speed of each port, 32Gbps transfer speed can
be 4GB/s if server's cooling system is excellent
* Patented anti-vibration stainless tray with
spring design, SSD can be mounted from the bottom
of U.2 SSD tray
* 1 pair of LED design: Left as Green power light, Right as
Orange HDD access light
* Rear interface: One MiniSAS HD (SFF-8643) data transfer
port, 1x SATA 15pin psu input port
* Accessory Pack: #6 flat screw x4, M3 flat screw x14, key
x2
* Global 3 years warranty or HDD hot swap cycle up to 50,000
times guaranteed
* Product dimension: 145(L) x 101.5(W) x 25.4(H)mm
* Package: N.W. 0.34 KGM, G.W. 0.41 KGM, CUFT 0.048 (195mm x
155mm x 45mm, single box packed)
*
left
left1
right
front
rear
tray
accessory |
|
|
N-12SS
SATA/SAS 12G |
1x3.5" FDD to 1x2.5"
HotSwap Cage SATA/SAS
12G
* One 3.5" FDD space to one 2.5" SSD/HDD hotswap mobile rack
(if RAID supported, extra RAID card required)
* 2.5" SATA1/2/3/3.2/3.3 & SAS1/2/3 SAS 12G or SAS/SATA 6G
SSD/HDD with max. 15mm height compatible
* Major mechanism by heat conductive aluminum extrusion with
glossy brushed finish on the surface
* Designed by hotswap tray mechanism, security with
cross-check function via key & switch
* Display: Left Green LED as power, right Orange LED as HDD
access, and right button as Power On/Off
* Rear interface: 1x SATA 7pin data transfer port, 1x SATA
15pin psu input port
* Accessory Pack: M3 flat screw x4, #6 flat head screw x4,
key x2
* Global 3 years warranty or HDD hot swap cycle up to 50,000
times guaranteed
* Product dimension: 145.7(L) x 101.5(W) x 25.4(H)mm
* Package: N.W. 0.22 KGM, G.W. 0.25 KGM, CUFT 0.048 (195mm x
151mm x 46mm, single box packed)
*
left
right
front
rear
rear1
rear2
accessory |
|
|
N-13SS
SATA/SAS 12G |
1x3.5" FDD to 1x2.5"
TrayLess HotSwap Cage SATA/SAS
12G
* One 3.5" FDD space to one 2.5" SSD/HDD hotswap mobile rack
(if RAID supported, extra RAID card required)
* 2.5" SATA1/2/3/3.2/3.3 & SAS1/2/3 SAS 12G or SAS/SATA 6G
SSD/HDD with max. 15mm height compatible
* Major mechanism by heat conductive aluminum extrusion with
glossy brushed finish on the surface
* Designed by TrayLess hotswap mechanism, front panel
open/close security function via key
* Display: single LED with 2 colors, blue as power, flash
purple as HDD access, button as Power On/Off
* Rear interface: 1x SATA 7pin data transfer port, 1x SATA
15pin psu input port
* Accessory Pack: #6 flat head screw x4, key x2
* Global 3 years warranty or HDD hot swap cycle up to 50,000
times guaranteed
* Product dimension: 145.7(L) x 101.5(W) x 25.4(H)mm
* Package: N.W. 0.22 KGM, G.W. 0.25 KGM, CUFT 0.048 (195mm x
151mm x 46mm, single box packed)
*
left
right
front
rear
rear1
rear2
accessory |
|
|
SS-21TL
SATA/SAS 12G |
1x3.5" FDD to 2x2.5"
TrayLess HotSwap Cage SATA/SAS
12G
* One 3.5" FDD space to two 2.5" trayless hotswap mobile
rack (if RAID supported, extra RAID card required)
* 2.5" SATA1/2/3/3.2/3.3 & SAS1/2/3 SAS 12G or SAS/SATA 6G
SSD/HDD with max. 9.5mm height compatible
* Major mechanism by heat conductive aluminum extrusion with
glossy brushed finish on the surface
* TrayLess HDD cage design with front aluminum
security keylock handles, horizontal or vertical
install compatible
* 2 HDD LED, each LED with 2 colors, green for power on when
HDD inserted, orange while HDD is accessing
* Rear interface: 2x SATA 7pin data transfer port, 1x SATA
15pin psu input port,
HDD access signal on/off switch
* Accessory Pack: key x 2pcs, #6 flat head nickel screw x
4pcs
* Global 3 years warranty or HDD hot swap cycle up to 50,000
times guaranteed
* Product dimension: 145.7(L) x 101.5(W) x 25.4(H)mm
* Package: N.W. 0.3 KGM, G.W. 0.4 KGM, CUFT 0.05 (195mm x
151mm x 46mm, single box packed)
*
left
right
right1
front
rear
rear1
accessory |
|
|
|
GMS-104M215r
M.2 NVMe 64Gbps |
1x5.25" to 4
x M.2 SSD Removable Cage M.2 NVMe 64Gbps
* One 5.25" ODD space to
4 M.2 NVMe SSD
(some SSD have no hotswap, NVMe control card may required)
* Support M.2 NVMe 32Gbps/64Gbps, M.2 NVMe SSD
length 2230/42/60/80mm compatible
* One 40mmx10mm blower fan at rear as standard
* High-grade black
anodized Aluminum with glossy brushed anti-scratch body finish on
the surface
* Outer frame multiple heat dissipation functions: aluminum
alloy equipped with vents, rear blower fan blow out
* Inner frame: SUS304 stainless trays, upper & lower shock-absorb
springs, aluminum handles with security lock
* Tool-free patent: required no tool to insert SSD, clamp-fixed aluminum heatsink by pressing down/screw fix
* 4 SSD LED, each LED with 2 colors, green for power on when
SSD
inserted, orange while SSD is accessing
* Rear interface: two Slim SAS 4i (SFF-8654) ports,
one 4pin power
input
* Backplane: Slim SAS 8i connector at back side of inner frame connected/plugged with the swappable tray
* SFF-9402 transmission definition between the rear connectors
(Device) and the system control (Host)
* Accessory: M2 flat head x4, M3 round head x8, security key x2, SATA 15pin
to 4pin power adapter cable x1
* Global 3 years warranty or SSD
push-in and pull-out cycle up to 50,000 times
guaranteed
* Product dimension: 171(L) x 145.8(W) x 41.8(H)mm
* Package: N.W. 0.77 KGM, G.W. 0.82 KGM, CUFT 0.048 (195mm x
155mm x 45mm, single box packed)
*
left
right
front
rear
top
tray
accessory
cable
option |
|
|
GM5-108M2r
M.2 NVMe 64Gbps |
1x5.25" to
8
x M.2 SSD Removable Cage M.2 NVMe 64Gbps
* One 5.25" ODD space to
8 M.2 NVMe SSD
(some SSD have no hotswap, NVMe control card may required)
* Support M.2 NVMe 32Gbps/64Gbps, M.2 NVMe SSD
length 2230/42/60/80mm compatible
* Three 40mmx10mm blower fans at rear as standard
* High-grade black
anodized Aluminum with glossy brushed anti-scratch body finish on
the surface
* Outer frame multiple heat dissipation functions: aluminum
alloy equipped with vents, rear blower fan blow out
* Inner frame: SUS304 stainless trays, upper & lower shock-absorb
springs, aluminum handles with security lock
* Tool-free patent: required no tool to insert SSD, clamp-fixed aluminum heatsink by pressing down/screw fix
* 8 SSD LED, each LED with 2 colors, green for power on when
SSD
inserted, orange while SSD is accessing

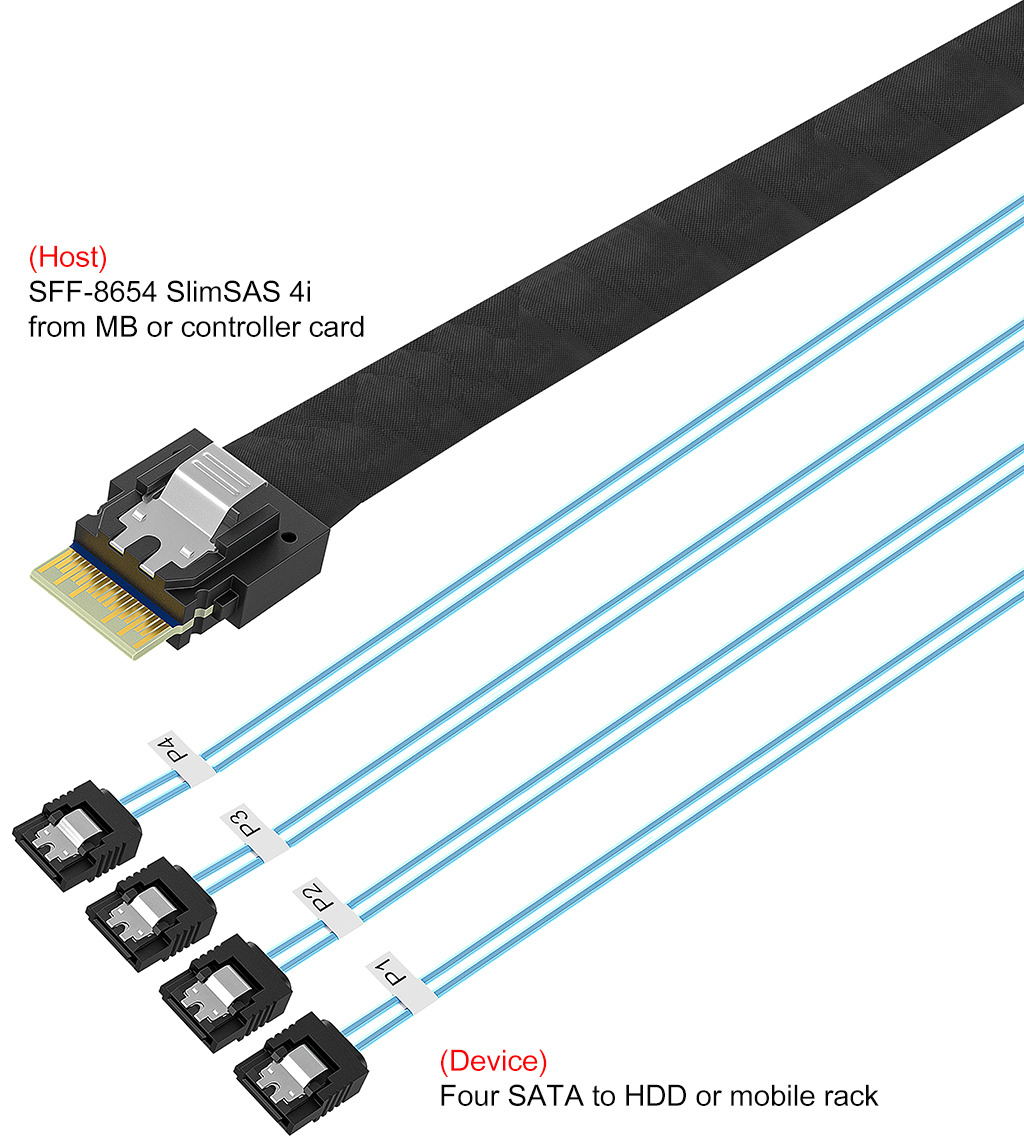

* Rear interface: eight Slim SAS 4i (SFF-8654) ports,
two 4pin power
inputs
* Backplane: Slim SAS 8i connector at back side of inner frame connected/plugged with the swappable tray
* SFF-9402 transmission definition between the rear connectors
(Device) and the system control (Host)
* Accessory: M2 flat head x8, M3 round head x8, security key x2, SATA 15pin
to 4pin power adapter cable x2
* Global 3 years warranty or SSD
push-in and pull-out cycle up to 50,000 times
guaranteed
* Product dimension: 173(L) x 145.8(W) x 41.8(H)mm
* Package: N.W. 1.16 KGM, G.W. 1.21 KGM, CUFT 0.048 (195mm x
155mm x 45mm, single box packed)
*
left
right
front
rear
top
tray
accessory
cable
option |
|
|
N-16TM
SATA/SAS 12G |
1x5.25" to 1x3.5" HotSwap Cage SATA/SAS
12G
* One 5.25" ODD space to one 3.5" HDD hotswap mobile rack
(if RAID supported, extra RAID card required)
* 3.5" SATA1/2/3/3.2/3.3 & SAS1/2/3 SAS 12G or SAS/SATA 6G
SSD/HDD with max. 26.1mm height compatible
* Major mechanism by heat conductive aluminum extrusion with
glossy brushed finish on the surface
* The newest creative RailWay hotswap tray design, security
with cross-check design (key
plus switch)
*
Anti-vibration spring design by aluminum tray to
be smoothly slide in/out and heat dispassion efficient
* Rear interface: 1x SATA 7pin data transfer port, 1x SATA
15pin psu input port,
HDD access signal on/off switch
* 1 HDD LED: each LED with 2 colors, green as power, flash
orange while HDD is accessing
* Accessory Pack: key x 2pcs, M3 countersunk screw x 3pcs,
#6 countersunk screw x 4pcs, M3 truss screw x 8pcs
* Global 3 years warranty or HDD hot swap cycle up to 50,000
times guaranteed
* Product dimension: 186.5(L) x 145.8(W) x 42.2(H)mm
* Package: N.W. 0.40 KGM, G.W. 0.48 KGM, CUFT 0.05 (195mm x
151mm x 46mm, single box packed)
*
left
right
front
front1
rear
rear1
tray
accessory |
|
|
N-16TL
SATA/SAS 12G |
1x5.25" to 1x3.5"
TrayLess HotSwap Cage SATA/SAS
12G
* One 5.25" ODD space to one 3.5" HDD trayless hotswap
mobile rack (if RAID supported, extra RAID card required)
* 3.5" SATA1/2/3/3.2/3.3 & SAS1/2/3 SAS 12G or SAS/SATA 6G
SSD/HDD with max. 26.1mm height compatible
* Major mechanism by heat conductive aluminum extrusion with
glossy brushed finish on the surface
* TrayLess HDD cage design with front
security keylock handle
* 1 HDD LED: each LED with 2 colors, blue as power, flash
purple while HDD is accessing
* Rear interface: 1x SATA 7pin data transfer port, 1x SATA
15pin psu input port
* Accessory Pack: key x 2pcs, M3 round head nickel screw x
8pcs
* Global 3 years warranty or HDD hot swap cycle up to 50,000
times guaranteed
* Product dimension: 179.5(L) x 145.6(W) x 42(H)mm
* Package: N.W. 0.28 KGM, G.W. 0.34 KGM, CUFT 0.05 (195mm x
151mm x 46mm, single box packed)
*
left
right
right1
front
rear
accessory |
|
|
N-29NVMe15U
U.2
NVMe 32G |
1x5.25" to 2xUSB3 2x2.5"
SSD Removable Cage U.2
NVMe 32G * One 5.25" space to two 2.5" NVMe U.2 mobile rack (some
NVMe cards support hotswap but some U.2 SSD don't)
* 2.5" U.2 NVMe (32Gbps) SSD x2, with maximum
height at 15mm compatible * Max. 32Gbps speed of each port, 32Gbps transfer speed can
be 4GB/s if server's cooling system is excellent * Patented
anti-vibration stainless tray with spring design,
SSD can be mounted
from the bottom of U.2 SSD tray * 2 pairs of LED design: Left as Green power light, Right as
Orange HDD access light
* Rear interface: Two MiniSAS HD (SFF-8643) data transfer
ports, 1x SATA 15pin psu input port
* Accessory Pack: M3 countersunk x16, M3 round x8, key x2
* Global 3 years warranty or HDD hot swap cycle up to 50,000
times guaranteed
* Product dimension: 140(L) x 146(W) x 41.8(H)mm
* Package: N.W. 0.50 KGM, G.W. 0.54 KGM, CUFT 0.048 (195mm x
155mm x 45mm, single box packed)
*
left
right
front
rear
rear1
tray
accessory |
|
|
N-29NVMe15
U.2
NVMe 32G |
1x5.25" to 2x2.5"
SSD Removable Cage U.2
NVMe 32G
* One 5.25" space to two 2.5" NVMe U.2 mobile rack (some
NVMe cards support hotswap but some U.2 SSD don't)
* 2.5" U.2 NVMe (32Gbps) SSD x2, with maximum
height at 15mm compatible * Max. 32Gbps speed of each port, 32Gbps transfer speed can
be 4GB/s if server's cooling system is excellent * Patented
anti-vibration stainless tray with spring design,
SSD can be mounted
from the bottom of U.2 SSD tray * 2 pairs of LED design: Left as Green power light, Right as
Orange HDD access light
* Rear interface: Two MiniSAS HD (SFF-8643) data transfer
ports, 1x SATA 15pin psu input port
* Accessory Pack: M3 countersunk x16, M3 round x8, key x2
* Global 3 years warranty or HDD hot swap cycle up to 50,000
times guaranteed
* Product dimension: 140(L) x 146(W) x 41.8(H)mm
* Package: N.W. 0.50 KGM, G.W. 0.54 KGM, CUFT 0.048 (195mm x
155mm x 45mm, single box packed)
*
left
right
front
rear
tray
accessory |
|
|
N-29SS15
SATA/SAS 12G |
1x5.25" to 2x2.5"
HotSwap Cage SATA/SAS
12G
* One 5.25" space to two 2.5" hotswap mobile rack (if RAID
supported, extra RAID card required)
* 2.5" SATA1/2/3/3.2/3.3 & SAS1/2/3 SAS 12G or SAS/SATA 6G
SSD/HDD with max. 15mm height compatible
* Patented
anti-vibration stainless tray with spring design, HDD can be mounted
from the bottom of HDD tray
* 2 pairs of LED design: Left as Green power light, Right as
Orange HDD access light
* Rear interface: 2x SATA 7pin data transfer port, 1x SATA
15pin psu input port
* Accessory Pack: M3 countersunk x8, M3 round x8, key x2
* Global 3 years warranty or HDD hot swap cycle up to 50,000
times guaranteed
* Product dimension: 140(L) x 146(W) x 41.8(H)mm
* Package: N.W. 0.50 KGM, G.W. 0.54 KGM, CUFT 0.048 (195mm x
155mm x 45mm, single box packed)
*
left
right
front
rear
tray
accessory |
|
|
N-67SS
SATA/SAS 12G |
1x5.25" to 6x2.5"
HotSwap Cage SATA/SAS
12G
* One 5.25" space to six 2.5" hotswap mobile rack (if RAID
supported, extra RAID card required)
* 2.5" SATA1/2/3/3.2/3.3 & SAS1/2/3 SAS 12G or SAS/SATA 6G
SSD/HDD with max. 9.5mm height compatible
* Entire tray mechanism by high grade stainless with
scratch-resistant black textured at front
* The newest creative RailWay hotswap tray design with
smooth travel while sliding in and out
*
6 pairs of LED design: Left as Green power light,
Right as Orange HDD access light
* One 40mmx20mm fan at rear as standard
* Fan detect: if fan fail, the left Green power LED
indicates slow flash red light (option)
* Temperature overheat: if over 60 degree-C, the left Green
power LED indicates fast flash red light (option)
*
Rear interface: 6x SATA 7pin data transfer port,
1x SATA 15pin psu input port
* Accessory Pack: M3 countersunk x28, M3 round x8, key x2
* Global 3 years warranty or HDD hot swap cycle up to 50,000
times guaranteed
* Product dimension: 159(L) x 145.8(W) x 41.6(H)mm
* Package: N.W. 0.68 KGM, G.W. 1.18 KGM, CUFT 0.06 (195mm x
191mm x 46mm, single box packed)
*
left
right
front
front1
rear
rear1
accessory |
|
|
SS-88TM
SATA/SAS 6G |
1x5.25" to 8x2.5"
HotSwap Cage SATA/SAS
6G
* One 5.25" space to eight 2.5" hotswap mobile rack (if RAID
supported, extra RAID card required)
* 2.5" SATA1/2/3 & SAS1/2 (6Gbps) HDD/SSD with maximum
height at 7mm compatible
* Entire tray mechanism by high grade stainless with
scratch-resistant black textured at front
* The newest creative RailWay hotswap tray design with
smooth travel while sliding in and out
* Patented anti-vibration spring design, HDD can be mounted
from bottom of hotswap HDD tray
*
8 pairs of LED design: Left as Green power light,
Right as Orange HDD access light
* One 40mmx20mm fan at rear side of HDD cage as standard
*
Rear interface: 8x SATA 7pin data transfer port,
2x SATA 15pin psu input port
* Accessory Pack: M3 countersunk x36, M3 round x8
* Global 3 years warranty or HDD hot swap cycle up to 50,000
times guaranteed
* Product dimension: 159(L) x 146(W) x 42(H)mm
* Package: N.W. 0.81 KGM, G.W. 0.88 KGM,
CUFT 0.04 (160mm x 147mm x 43mm, single box packed)
*
left
right
front
front1
rear
rear1
accessory |
|
|

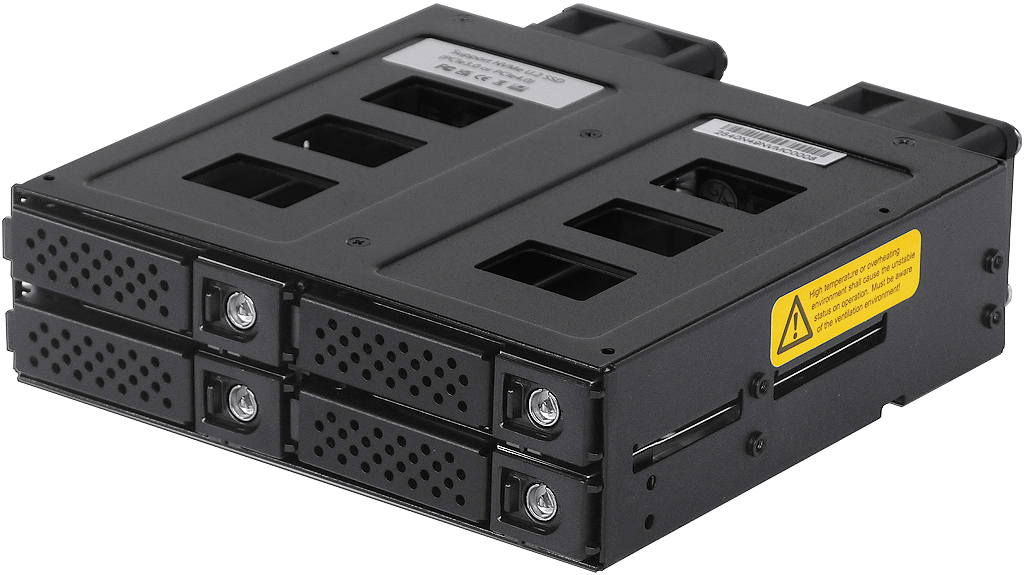

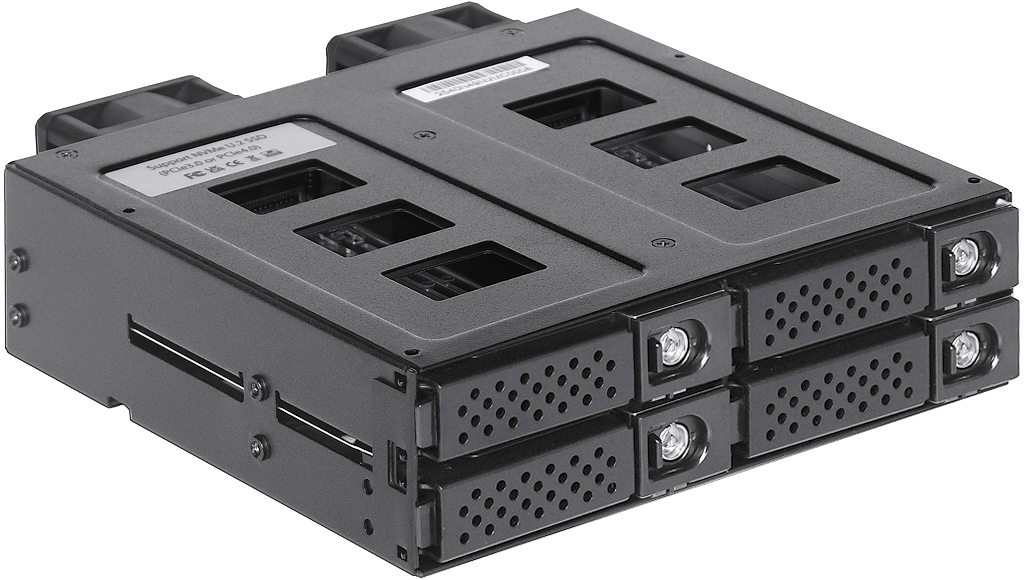

N-49NVMe
U.2
NVMe 32G |
1x5.25" to 4x2.5"
SSD Removable Cage U.2
NVMe 32G
* One 5.25" space to four 2.5" NVMe U.2 mobile rack (some
NVMe cards support hotswap but some U.2 SSD don't)
* 2.5" U.2 NVMe (32Gbps) SSD x4, with maximum
height at 15mm compatible
* Max. 32Gbps speed of each port, 32Gbps transfer speed can
be 4GB/s if server's cooling system is excellent
* Patented
anti-vibration stainless tray with spring design,
SSD can be mounted
from the bottom of U.2 SSD tray
*
4 pairs of LED design: Left as Green power light, Right as
Orange HDD access light
* Two 40mmx20mm fans at rear as standard
*

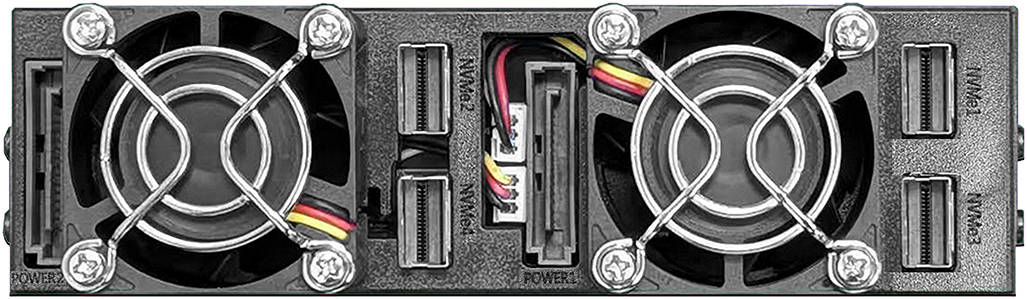

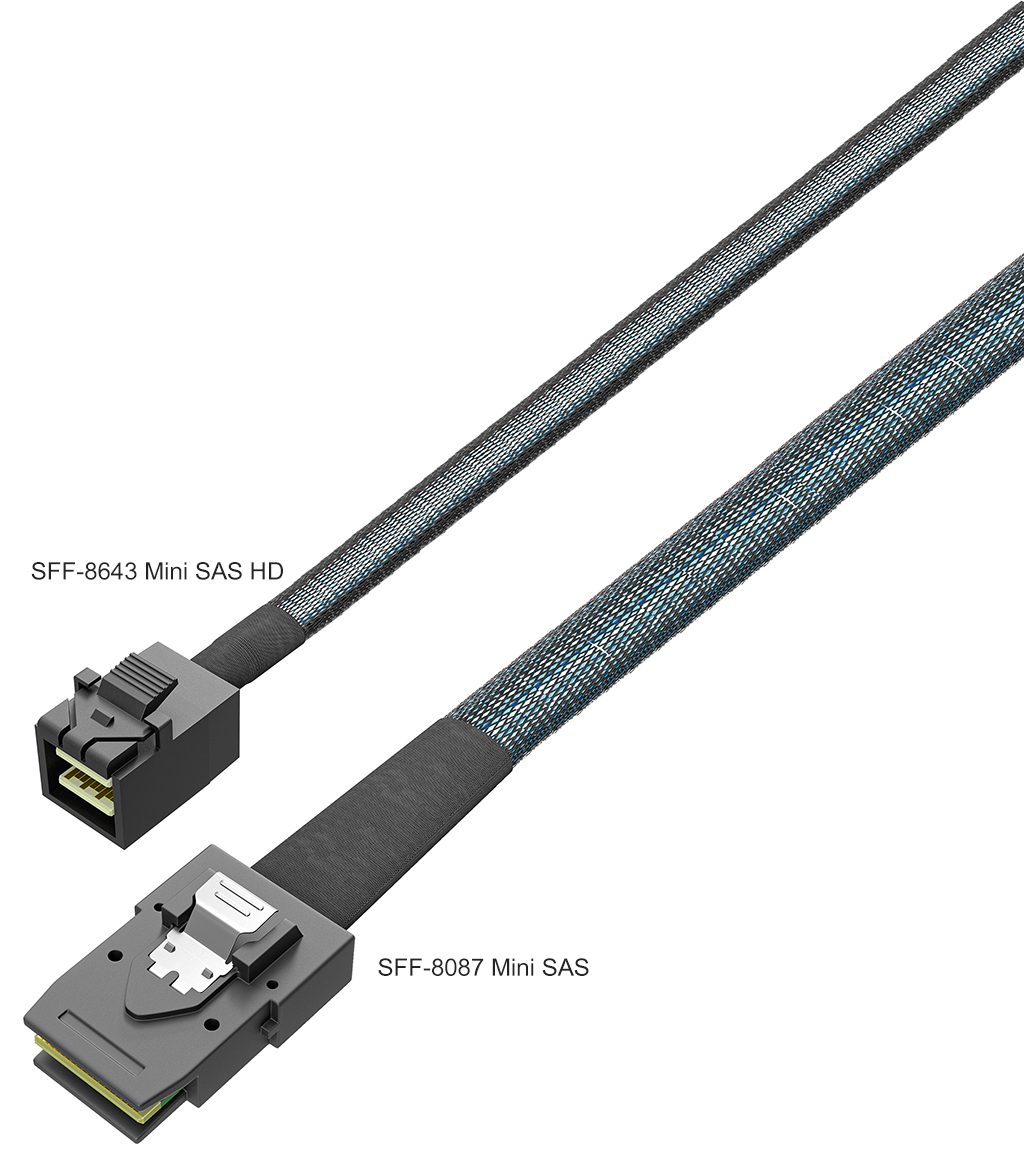

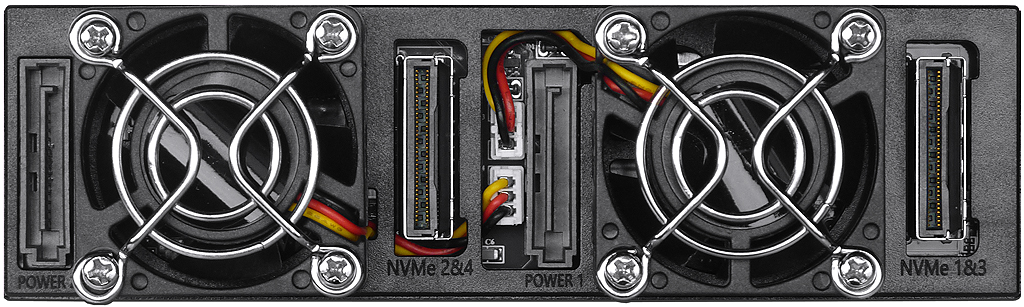

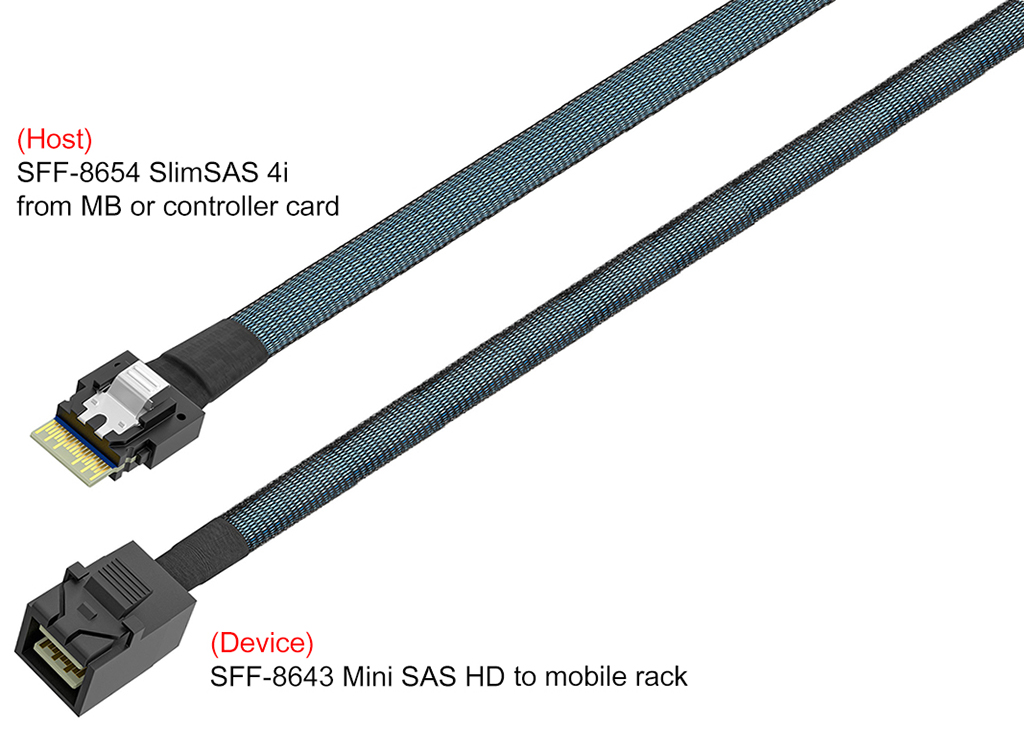

Rear interface: Four MiniSAS HD (SFF-8643) data
transfer ports, 2x SATA 15pin psu input ports

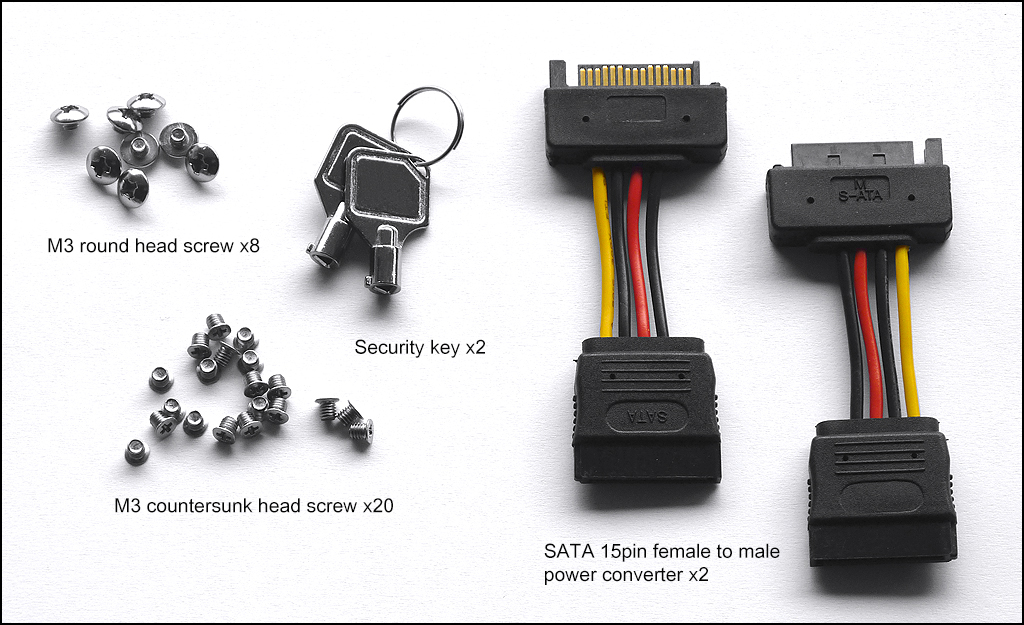

* Accessory Pack: M3 countersunk x16, M3 round x8, key x2
* Global 3 years warranty or HDD removable cycle up to
50,000 times guaranteed
* Product dimension: 159(L) x 145.8(W) x 41.6(H)mm
* Package: N.W. 0.68 KGM, G.W. 1.18 KGM, CUFT 0.05 (195mm x
151mm x 46mm, single box packed)
*
left
left
right
right
right
right
front
rear
rear
tray
accessory
drawing |
|
|
N-49SS-MS
SFF-8643 12G |
1x5.25" to 4x2.5"
HotSwap Cage SFF-8643
12G
* One 5.25" space to four 2.5" hotswap mobile rack (if RAID
supported, extra RAID card required)
* 2.5" SATA1/2/3/3.2/3.3 & SAS1/2/3 (12Gbps) HDD/SSD with
maximum height at 15mm compatible
* Patented
anti-vibration stainless tray with spring design, HDD can be mounted
from the bottom of HDD tray
*
4 pairs of LED design: Left as Green power light, Right as
Orange HDD access light
* Fan detect: if fan fail, the left Green power LED
indicates slow flash red light
* Temperature overheat: if over 60 degree-C, the left Green
power LED indicates fast flash red light
* Two 40mmx20mm fans at rear as standard
*
Rear interface: One SFF-8643 data transfer port, 1x SATA
15pin psu input port
* Accessory Pack: M3 countersunk x16, M3 round x8, key x2
* Global 3 years warranty or HDD hot swap cycle up to 50,000
times guaranteed
* Product dimension: 159(L) x 145.8(W) x 41.6(H)mm
* Package: N.W. 0.68 KGM, G.W. 1.18 KGM, CUFT 0.05 (195mm x
151mm x 46mm, single box packed)
*
left
right
front
rear
tray
accessory |
|
|
N-49SS
SATA/SAS 12G |
1x5.25" to 4x2.5"
HotSwap Cage SATA/SAS
12G
* One 5.25" space to four 2.5" hotswap mobile rack (if RAID
supported, extra RAID card required)
* 2.5" SATA1/2/3/3.2/3.3 & SAS1/2/3 SAS 12G or SAS/SATA 6G
SSD/HDD with max. 15mm height compatible
* Patented
anti-vibration stainless tray with spring design, HDD can be mounted
from the bottom of HDD tray
*
4 pairs of LED design: Left as Green power light,
Right as Orange HDD access light
* Fan detect: if fan fail, the left Green power LED
indicates slow flash red light (option)
* Temperature overheat: if over 60 degree-C, the left Green
power LED indicates fast flash red light (option)
* One 40mmx20mm fan at rear as standard
*
Rear interface: 4x SATA 7pin data transfer port,
1x SATA 15pin psu input port
* Accessory Pack: M3 countersunk x16, M3 round x8, key x2
* Global 3 years warranty or HDD hot swap cycle up to 50,000
times guaranteed
* Product dimension: 159(L) x 145.8(W) x 41.6(H)mm
* Package: N.W. 0.68 KGM, G.W. 1.18 KGM, CUFT 0.05 (195mm x
151mm x 46mm, single box packed)
*
left
right
front
rear
tray
optional
fan & temp sensor
accessory |
|
|
SS-46TM
SATA/SAS 6G |
1x5.25" to 4x2.5"
HotSwap Cage SATA/SAS
6G
* One 5.25" space to four 2.5" hotswap mobile rack (if RAID
supported, extra RAID card required)
* 2.5" SATA1/2/3 & SAS1/2 (6Gbps) HDD/SSD with maximum
height at 15mm compatible
* Major mechanism by heat conductive aluminum extrusion with
glossy brushed finish on the surface
* The newest creative RailWay hotswap tray design with
smooth travel while sliding in and out
* Patented
anti-vibration spring design, HDD can be mounted
from bottom of hotswap HDD tray
* 4 HDD LED, each LED with 3 colors, blue for power, purple
for access, red for malfunction
(fast red flash as overheat, alert and slow red flash
as fan malfunction)
* Two 40mm x 20mm exhaust cooling fans at rear side of HDD
cage as standard
* Rear interface: 4x SATA 7pin data transfer port, 1x SATA
15pin psu input port,
HDD access signal on/off switch
* Accessory Pack: key x 2pcs, M3 flat head nickel screw x
20pcs, M3 round head nickel screw x 8pcs
* Global 3 years warranty or HDD hot swap cycle up to 50,000
times guaranteed
* Product dimension: 180(L) x 146(W) x 42(H)mm
* Package: N.W. 0.71 KGM, G.W. 0.76 KGM, CUFT 0.050 (196mm x
153mm x 47mm, single box packed)
*
left
right
front
rear
rear1
tray
dimensional
drawing
accessory
specification |
|
|
|
N-36TM
SATA/SAS 12G |
2x5.25" to 3x3.5"
HotSwap Cage SATA/SAS
12G
* Two 5.25" space to three 3.5" hotswap mobile rack (if RAID
supported, extra RAID card required)
* 3.5" SATA1/2/3/3.2/3.3 & SAS1/2/3 SAS 12G or SAS/SATA 6G
SSD/HDD with max. 26.1mm height compatible
* Major mechanism by heat conductive aluminum extrusion with
glossy brushed finish on the surface
* The newest creative RailWay hotswap tray design, security
with cross-check design (key
plus switch)
*
Anti-vibration spring design by aluminum tray to
be smoothly slide in/out and heat dispassion efficient
* 3 HDD LED: each LED with 2 colors, green for power, orange
for HDD access
* One 70mm x 15mm exhaust cooling fan at rear side of HDD
cage as standard
* Front interface (LED):
fan malfunction alert, and
temperature overheat alert
* Rear interface (1): 3x SATA 7pin data transfer port, 2x
SATA 15pin psu input,
HDD access signal on/off switch
* Rear interface (2): overheat Alarm setup
jumper (55-degree
C/60-degree/65-degree C adjustable)
* Rear interface (3): 3x 2.54pin HDD signal
connector
* Rear interface (4): high speed fan or low speed fan
adjustable
switch
* Accessory Pack: key x2, M3 flat head screw x9, M3 round
head screw x8, #6 flat head screw x12
* Global 3 years warranty or HDD hot swap cycle up to 50,000
times guaranteed
* Product dimension: 205(L) x 146(W) x 86(H)mm
* Package: N.W. 1.09 KGM, G.W. 1.31 KGM, CUFT 0.200 (254mm x
122mm x 178mm, single box packed)
*
left
right
front
front1
front2
rear
rear1
rear2
rear3
rear4
tray
accessory
drawing |
|
|
N-36TL
SATA/SAS 12G |
2x5.25" to 3x3.5"
TrayLess HotSwap Cage SATA/SAS
12G
* Two 5.25" space to three 3.5" TrayLess hotswap mobile rack
(if RAID supported, extra RAID card required)
* 3.5" SATA1/2/3/3.2/3.3 & SAS1/2/3 SAS 12G or SAS/SATA 6G
SSD/HDD with max. 26.1mm height compatible
* Major mechanism by heat conductive aluminum extrusion with
glossy brushed finish on the surface
* TrayLess HDD cage design with front
security keylock handles
* 1 blue Power LED & 3 purple HDD LED (HDD inserted as blue,
no light if no HDD inside, flash purple while accessing)
* One 70mm x 15mm exhaust cooling fan at rear side of HDD
cage as standard
* Rear interface (1): 3x SATA 7pin data transfer port, 2x
SATA 15pin psu input,
HDD access signal on/off switch
* Rear interface (2): high speed fan or low speed fan
adjustable
switch
* Accessory Pack: key x 2pcs, M3 round head nickel screw x
8pcs
* Global 3 years warranty or HDD hot swap cycle up to 50,000
times guaranteed
* Product dimension: 190(L) x 146(W) x 86(H)mm
* Package: N.W. 0.76 KGM, G.W. 0.92 KGM, CUFT 0.200 (254mm x
122mm x 178mm, single box packed)
*
left
right
right1
front
rear
rear1
rear2
accessory
drawing |
|
|
|
N-46TM-MS
SFF-8643 12G |
3x5.25" to 4x3.5"
HotSwap Cage SFF-8643
12G
* Three 5.25" space to four 3.5" hotswap mobile rack (if
RAID supported, extra RAID card required)
* 3.5" SATA1/2/3/3.2/3.3 & SAS1/2/3 (12Gbps) HDD with
maximum height at 26.1mm compatible
* Major mechanism by heat conductive aluminum extrusion with
glossy brushed finish on the surface
* The newest creative RailWay hotswap tray design, security
with cross-check design (key
plus switch)
*
Anti-vibration spring design by aluminum tray to
be smoothly slide in/out and heat dispassion efficient
* 4 HDD LED: each LED with 2 colors, green for power, orange
for HDD access
* One 80mm x 15mm exhaust cooling fan at rear side of HDD
cage as standard
* Front interface (LED):
fan malfunction alert, and
temperature overheat alert
* Rear interface (1): One SFF-8643 data transfer port, 2x
SATA 15pin psu input,
HDD access signal on/off switch
* Rear interface (2): overheat Alarm setup
jumper (55-degree
C/60-degree/65-degree C adjustable)
* Rear interface (3): 4x 2.54pin HDD signal
connector
* Rear interface (4): high speed fan or low speed fan
adjustable
switch
* Accessory Pack: key x2, M3 flat head screw x12, M3 round
head screw x8, #6 flat head screw x16
* Global 3 years warranty or HDD hot swap cycle up to 50,000
times guaranteed
* Product dimension: 210(L) x 146(W) x 126(H)mm
* Package: N.W. 1.79 KGM, G.W. 2.05 KGM, CUFT 0.260 (254mm x
162mm x 178mm, single box packed)
*
left
right
front
front1
front2
rear
rear1
rear2
rear3
rear4
tray
accessory |
|
|
N-46TM
SATA/SAS 12G |
3x5.25" to 4x3.5"
HotSwap Cage SATA/SAS
12G
* Three 5.25" space to four 3.5" hotswap mobile rack (if
RAID supported, extra RAID card required)
* 3.5" SATA1/2/3/3.2/3.3 & SAS1/2/3 SAS 12G or SAS/SATA 6G
SSD/HDD with max. 26.1mm height compatible
* Major mechanism by heat conductive aluminum extrusion with
glossy brushed finish on the surface
* The newest creative RailWay hotswap tray design, security
with cross-check design (key
plus switch)
*
Anti-vibration spring design by aluminum tray to
be smoothly slide in/out and heat dispassion efficient
* 4 HDD LED: each LED with 2 colors, green for power, orange
for HDD access
* One 80mm x 15mm exhaust cooling fan at rear side of HDD
cage as standard
* Front interface (LED):
fan malfunction alert, and
temperature overheat alert
* Rear interface (1): 4x SATA 7pin data transfer port, 2x
SATA 15pin psu input,
HDD access signal on/off switch
* Rear interface (2): overheat Alarm setup
jumper (55-degree C/60-degree/65-degree C
adjustable)
* Rear interface (3): 4x 2.54pin HDD signal
connector
* Rear interface (4): high speed fan or low speed fan
adjustable
switch
* Accessory Pack: key x2, M3 flat head screw x12, M3 round
head screw x8, #6 flat head screw x16
* Global 3 years warranty or HDD hot swap cycle up to 50,000
times guaranteed
* Product dimension: 210(L) x 146(W) x 126(H)mm
* Package: N.W. 1.79 KGM, G.W. 2.05 KGM, CUFT 0.260 (254mm x
162mm x 178mm, single box packed)
*
left
right
front
front1
front2
rear
rear1
rear2
rear3
rear4
tray
accessory |
|
|
N-46TL-MS
SFF-8643 12G |
3x5.25" to 4x3.5"
TrayLess HotSwap Cage SFF-8643
12G
* Three 5.25" space to four 3.5" TrayLess hotswap mobile
rack (if RAID supported, extra RAID card required)
* 3.5" SATA1/2/3/3.2/3.3 & SAS1/2/3 (12Gbps) HDD with
maximum height at 26.1mm compatible
* Major mechanism by heat conductive aluminum extrusion with
glossy brushed finish on the surface
* TrayLess HDD cage design with front
security keylock handles
* 1 blue Power LED & 4 purple HDD LED (HDD inserted as blue,
no light if no HDD inside, flash purple while accessing)
* One 80mm x 15mm exhaust cooling fan at rear side of HDD
cage as standard
* Rear interface (1): One SFF-8643 data transfer port, 2x
SATA 15pin psu input,
HDD access signal on/off switch
* Rear interface (2): high speed fan or low speed fan
adjustable
switch
* Accessory Pack: key x 2pcs, M3 round head nickel screw x
8pcs
* Global 3 years warranty or HDD hot swap cycle up to 50,000
times guaranteed
* Product dimension: 199(L) x 146(W) x 126(H)mm
* Package: N.W. 1.20 KGM, G.W. 1.39 KGM, CUFT 0.260 (254mm x
162mm x 178mm, single box packed)
*
left
right
right1
front
rear
rear1
rear2
accessory |
|
|
N-46TL
SATA/SAS 12G |
3x5.25" to 4x3.5"
TrayLess HotSwap Cage SATA/SAS
12G
* Three 5.25" space to four 3.5" TrayLess hotswap mobile
rack (if RAID supported, extra RAID card required)
* 3.5" SATA1/2/3/3.2/3.3 & SAS1/2/3 SAS 12G or SAS/SATA 6G
SSD/HDD with max. 26.1mm height compatible
* Major mechanism by heat conductive aluminum extrusion with
glossy brushed finish on the surface
* TrayLess HDD cage design with front
security keylock handles
* 1 blue Power LED & 4 purple HDD LED (HDD inserted as blue,
no light if no HDD inside, flash purple while accessing)
* One 80mm x 15mm exhaust cooling fan at rear side of HDD
cage as standard
* Rear interface (1): 4x SATA 7pin data transfer port, 2x
SATA 15pin psu input,
HDD access signal on/off switch
* Rear interface (2): high speed fan or low speed fan
adjustable
switch
* Accessory Pack: key x 2pcs, M3 round head nickel screw x
8pcs
* Global 3 years warranty or HDD hot swap cycle up to 50,000
times guaranteed
* Product dimension: 199(L) x 146(W) x 126(H)mm
* Package: N.W. 1.20 KGM, G.W. 1.39 KGM, CUFT 0.260 (254mm x
162mm x 178mm, single box packed)
*
left
right
right1
front
rear
rear1
rear2
accessory |
|
|
N-56TM
SATA/SAS 12G |
3x5.25" to 5x3.5"
HotSwap Cage SATA/SAS
12G
* Three 5.25" space to five 3.5" hotswap mobile rack (if
RAID supported, extra RAID card required)
* 3.5" SATA1/2/3/3.2/3.3 & SAS1/2/3 SAS 12G or SAS/SATA 6G
SSD/HDD with max. 26.1mm height compatible
* Major mechanism by heat conductive aluminum extrusion with
glossy brushed finish on the surface
* The newest creative RailWay hotswap tray design, security
with cross-check design (key
plus switch)
*
Anti-vibration spring design by aluminum tray to
be smoothly slide in/out and heat dispassion efficient
* 5 HDD LED: each LED with 2 colors, green for power, orange
for HDD access
* One 80mm x 15mm exhaust cooling fan at rear side of HDD
cage as standard
* Front interface (LED):
fan malfunction alert, and
temperature overheat alert
* Rear interface (1): 5x SATA 7pin data transfer port, 2x
SATA 15pin psu input,
HDD access signal on/off switch
* Rear interface (2): overheat Alarm setup
jumper
(55-degree
C/60-degree/65-degree C adjustable)
* Rear interface (3): 5x 2.54pin HDD signal
connector
* Rear interface (4): high speed fan or low speed fan
adjustable
switch
* Accessory Pack: key x2, M3 flat head screw x15, M3 round
head screw x8, #6 flat head screw x20
* Global 3 years warranty or HDD hot swap cycle up to 50,000
times guaranteed
* Product dimension: 210(L) x 146(W) x 126(H)mm
* Package: N.W. 1.80 KGM, G.W. 2.07 KGM, CUFT 0.260 (254mm x
162mm x 178mm, single box packed)
*
left
right
front
front1
front2
rear
rear1
rear2
rear3
rear4
tray
accessory |
|
|
N-56TL
SATA/SAS 12G |
3x5.25" to 5x3.5"
TrayLess HotSwap Cage SATA/SAS
12G
* Three 5.25" space to five 3.5" TrayLess hotswap mobile
rack (if RAID supported, extra RAID card required)
* 3.5" SATA1/2/3/3.2/3.3 & SAS1/2/3 SAS 12G or SAS/SATA 6G
SSD/HDD with max. 26.1mm height compatible
* Major mechanism by heat conductive aluminum extrusion with
glossy brushed finish on the surface
* TrayLess HDD cage design with front
security keylock handles
* 1 blue Power LED & 5 purple HDD LED (HDD inserted as blue,
no light if no HDD inside, flash purple as accessing)
* One 80mm x 15mm exhaust cooling fan at rear side of HDD
cage as standard
* Rear interface (1): 5x SATA 7pin data transfer port, 2x
SATA 15pin psu input,
HDD access signal on/off switch
* Rear interface (2): high speed fan or low speed fan
adjustable
switch
* Accessory Pack: key x 2pcs, M3 round head nickel screw x
8pcs
* Global 3 years warranty or HDD hot swap cycle up to 50,000
times guaranteed
* Product dimension: 200(L) x 146(W) x 126(H)mm
* Package: N.W. 1.11 KGM, G.W. 1.30 KGM, CUFT 0.260 (254mm x
162mm x 178mm, single box packed)
*
left
right
right1
front
rear
rear1
rear2
accessory |
|
|
|
4SATA-1MSAS-500MM
|
Four SATA (Host)
to SFF-8087 Mini-SAS (Device) cable
* Four SATA
(Host) to One
SFF-8087
Mini-SAS 6G (Device)
* RAID card or MB as SATA, hotswap backplane as SFF-8087
Mini-SAS
* Cable at 440mm, total length at 500mm (connectors at two
sides included)
* Global 3 years warranty
*
Four to One, reverse data transfer |
|
|
1MSAS-4SATA-500MM
|
SFF-8087 Mini-SAS
(Host) to Four SATA (Device) cable
* One
SFF-8087
Mini-SAS 6G (Host) to Four
SATA
(Device)
* RAID card or MB as SFF-8087 Mini-SAS, hotswap backplane or
HDD as SATA
* Cable at 440mm, total length at 500mm (connectors at two
sides included)
* Global 3 years warranty
*
One to Four,
obverse data transfer |
|
|
1MSAS-1MSAS-500MM
|
SFF-8087 Mini-SAS
(Host) to Mini-SAS (Device) cable
* One
SFF-8087
Mini-SAS 6G (Host) to One
SFF-8087
Mini-SAS 6G (Device)
* RAID card or MB as SFF-8087 Mini-SAS, hotswap backplane as
SFF-8087 Mini-SAS
* Cable at 440mm, total length at 500mm (connectors at two
sides included)
* Global 3 years warranty
*
One to One, 2way
data transfer |
|
|
SFF-8643-500MM
|
SFF-8643 Mini-SAS
HD (Host) to SFF-8643 Mini-SAS HD (Device) cable
* One
SFF-8643
Mini-SAS HD 12G (Host) to One
SFF-8643
Mini-SAS HD 12G (Device)
* RAID card or MB as SFF-8643 Mini-SAS HD, hotswap backplane
as SFF-8643 Mini-SAS HD
* Cable at 440mm, total length at 500mm (connectors at two
sides included)
* Global 3 years warranty
*
One to One, 2way
data transfer |
|
|
4SATA-SFF-8643-500MM
|
Four SATA
(Host) to SFF-8643 Mini-SAS HD (Device) cable
* Four SATA
(Host) to One
SFF-8643
Mini-SAS HD 12G (Device)
* RAID card or MB as SATA, hotswap backplane as SFF-8643
Mini-SAS HD
* Cable at 440mm, total length at 500mm (connectors at two
sides included)
* Global 3 years warranty
*
Four to One, reverse data transfer |
|
|
SFF-8643-4SATA-500MM
|
SFF-8643 Mini-SAS
HD (Host) to Four SATA (Device) cable
* One
SFF-8643
Mini-SAS HD 12G (Host) to Four
SATA
(Device)
* RAID card or MB as SFF-8643 Mini-SAS HD, hotswap backplane
or HDD
as SATA
* Cable at 440mm, total length at 500mm (connectors at two
sides included)
* Global 3 years warranty
*
One to Four,
obverse data transfer |
|
|
|
|
|
